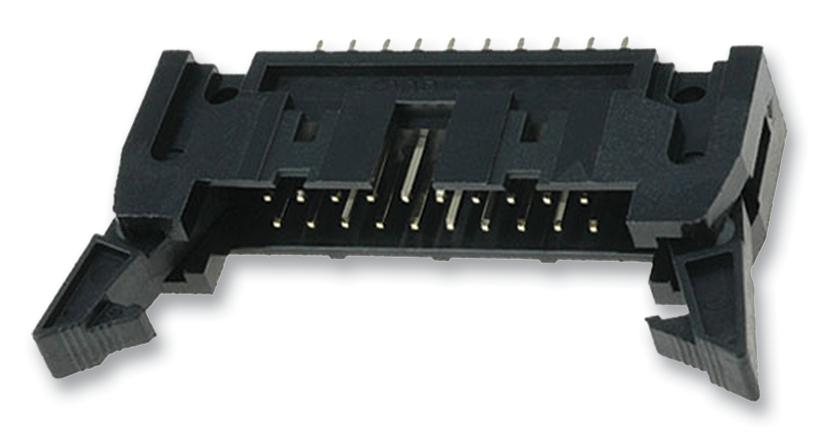

AMPHENOL COMMUNICATIONS SOLUTIONS T816110A1S101CEU Latch Header Connector
The T816 phenol latch header is a 2.54mm pitch component designed for reliable electrical connections in industrial and electronic applications. Constructed with PBT+25%G.F insulator and brass contacts that are gold or tin plated over 50u" Ni, it offers high insulation resistance of 1000 MQ min at 500V/DC, a dielectric withstand voltage of 500 VAC RMS at 60Hz for one minute, and a maximum current rating of 3.0A. Suitable for PCB mounting with straight or right-angled termination options, it operates effectively between -40°C to +105°C, ensuring durability in diverse environments.
AMPHENOL COMMUNICATIONS SOLUTIONS T816110A1S101CEU Latch Header Connector Specifications:
- Pitch: 2.54mm
- Insulator Material: PBT+25%G.F, UL 94V-0
- Contact Material: Brass, Gold or Tin Plated over 50u" Ni
- Contact Resistance: 20 mΩ max at 1A
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500 VAC RMS for 1 minute
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/RMS and DC
- Operating Temperature Range: -40°C to +105°C
- No. of Positions: From 6 to 64
- Pin Dimensions: Vary according to position, e.g., 6 positions: 5.08mm, 8: 7.62mm, 10: 10.16mm, up to 64: 78.74mm
- Plating Options: Gold flash over 50u" Ni, full Tin over 50u" Ni
- Housing Color: Grey or Black
- Termination: Straight THT or Right Angled THT
- RoHS Compliance: Yes
Buy the Amphenol-Communications-Solutions Series T816110A1S101CEU Latch Header Connector
Purchase the Berg latch header connector online today to secure high-quality PCB connections suitable for industrial automation, consumer electronics, and telecommunications. This reliable component features gold or tin plating over nickel, ensuring excellent electrical conductivity and corrosion resistance. Its high insulation resistance, dielectric withstand voltage, and robust construction make it ideal for demanding environments. With options for straight or right-angled termination and a wide range of pin counts, this connector simplifies assembly and enhances device performance. Order now for fast delivery and dependable connectivity.
Buy Berg 7816 latch header now and ensure reliable, high-quality PCB connections with superior corrosion resistance and versatile mounting options.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816110A1S101CEU?
You can click on the BUY or RFQ button to purchase T816110A1S101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816110A1S101CEU?
You can download the T816110A1S101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816110A1S101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
