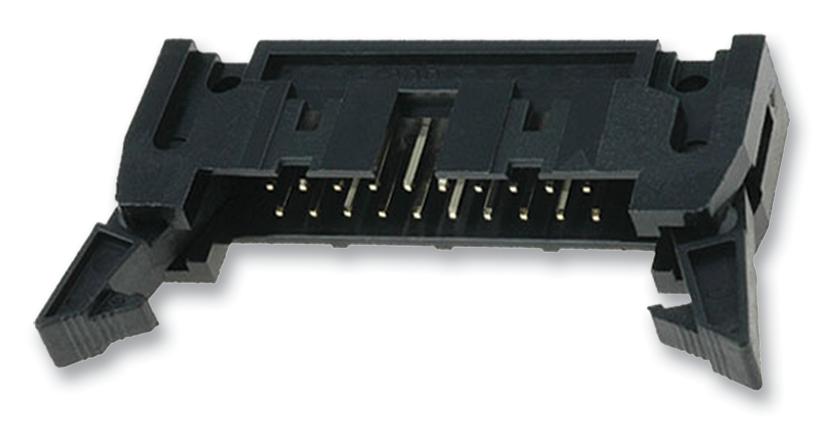

AMPHENOL COMMUNICATIONS SOLUTIONS T816126A1R101CEU Latch Header
The T816 phenol latch header is a 2.54mm pitch connector suitable for PCB mounting, available in 6 to 64 positions with various plating and latch options. Constructed with PBT+25% G.F insulators, brass contacts, and gold or tin plating over Ni, it offers high insulation resistance of 1000 MΩ at 500V, with a voltage rating of 250V AC/DC and current rating of 3.0A. It features straight, right-angle, or long latch configurations, RoHS compliance, and operates reliably between -40°C and +105°C. Ideal for modular electronic assemblies requiring robust connections.
AMPHENOL COMMUNICATIONS SOLUTIONS T816126A1R101CEU Latch Header Specifications:
- Pitch: 2.54mm
- Number of positions: 6 to 64
- Insulator: PBT+25%G.F, UL 94V-0
- Contacts: Brass, Gold or Tin Plated over 50u" Ni
- Insulation Resistance: 1000 MΩ at 500V/DC
- Dielectric Withstanding Voltage: 500V RMS 60Hz for 1 min
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/DC
- Operating Temperature: -40°C to +105°C
- Contact Resistance: 20 mΩ max at 1A DC
- Housing Colors: Grey or Black
- Plating Options: Gold flash over 50u" Ni, full Tin over 50u" Ni
- Latch Styles: Straight, Right-Angled, Long Latch
- RoHS Compliant
- Material: PBT+25% G.F (Insulator), Brass (Contacts)
Buy the Buy Bazooka Electronics T816 Part Number T816126A1R101CEU Online
Purchase the Bazooka Electronics T816 latch header online today and enjoy high-quality connectivity for your electronic projects. With options for 6 to 64 positions, various plating styles, and robust latch options, this connector ensures reliable electrical performance. Made from durable PBT+25%G.F insulators and brass contacts, it offers excellent insulation resistance, a voltage rating of 250V AC/DC, and a current capacity of 3.0A. Ideal for modular electronic assemblies operating from -40°C to +105°C, it provides dependable and secure connections for complex wiring and PCB applications.
Order your Bazooka Electronics Series T816126A1R101CEU today and give your projects the dependable quality they deserve, ensuring reliable PCB connections in electronic assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816126A1R101CEU?
You can click on the BUY or RFQ button to purchase T816126A1R101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816126A1R101CEU?
You can download the T816126A1R101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816126A1R101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
