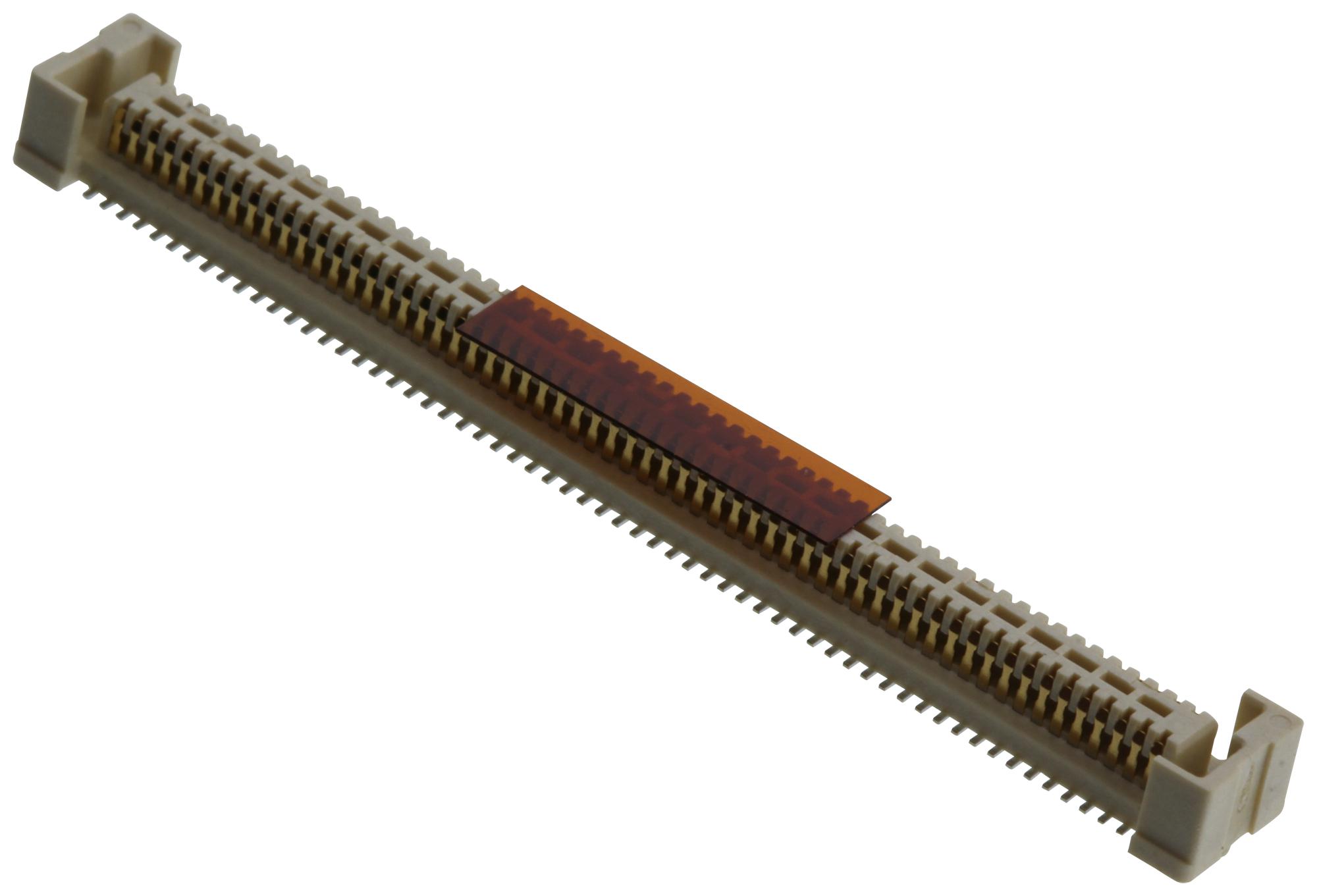

AMPHENOL COMMUNICATIONS SOLUTIONS 10147614121406LF Board-to-Board Connector
The Amphenol BergStak HS 0.80mm Board-to-Board Connector is engineered for high-performance data applications requiring fast and reliable connections. This connector family delivers exceptional signal quality and proven reliability, supporting data rates up to 32Gb/s and meeting PCIe Gen 5 and SAS 4.0 standards. Its compact 0.80mm pitch and flexible design make it suitable for a wide range of industrial and commercial applications, including server storage, industrial automation, and medical devices. The connector's scoop-proof housing simplifies manual assembly, while its RoHS compliance ensures environmental responsibility.
AMPHENOL COMMUNICATIONS SOLUTIONS 10147614121406LF Board-to-Board Connector Specifications:
- Material_Housing: Glass filled LCP (UL94V-0, MSL level 1)
- Contact_Base_Metal: Copper alloy
- Receptacles: Copper alloy, high spring
- Headers: Copper alloy
- Amphenol_Product_Specification: GS-12-1499
- Packaging: Tape & Reel
- Plating_Contact_Area: Gold 0.2μm
- Plating_Solder_Tail_Area: Pure tin 2.5μm min. (LF)
- Nickel_Underplate_Overall: 1.27μm min.
- Current_Rating: 0.8A per contact
- Contact_Resistance: 50m Ω max.
- Signal_Integrity_SAS_4.0: N/A
- Data_Rate_SAS_4.0: up to 24Gb/s
- Multiline_Crosstalk_SAS_4.0: < 0.5% at 20ps (20-80%)
- Differential_Impedance_SAS_4.0: 100 Ω
- Single_Ended_Impedance_SAS_4.0: 50 Ω
- Signal_Integrity_PCIe_Gen_5: N/A
- Data_Rate_PCIe_Gen_5: Up to 32Gb/s
- Multiline_Crosstalk_PCIe_Gen_5: < 0.5% at 15ps (20-80%)
- Differential_Impedance_PCIe_Gen_5: 85 Ω
- Single_Ended_Impedance_PCIe_Gen_5: 42.5 Ω
- Durability: 100 cycles
- Mating_Force: 0.9N max. /contact
- Un_mating_Force: 0.1N min. /contact
- Gauge_Retention_Force: >0.1N
- Mixed_Flow_Gas: Duration 7 days
- Vibration_Sinusoidal: 11.95g
- Temperature_Life: 125°C for 96 hours
