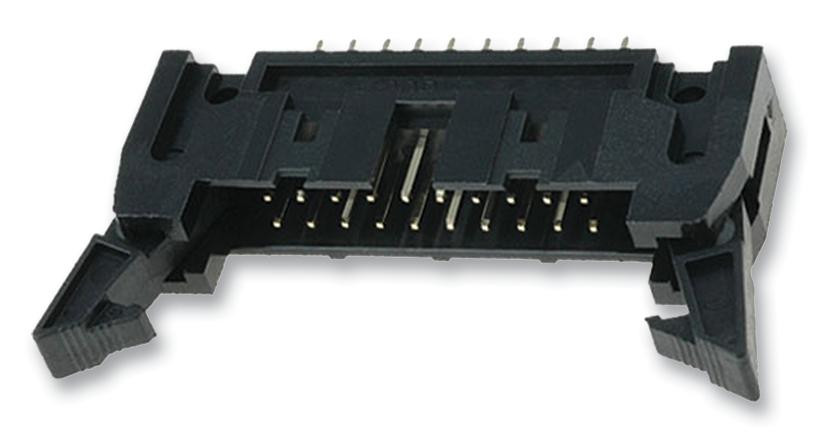

AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1S101CEU Phenol Latch Header
The T816 phenol latch header is a versatile electronic connector with a 2.54mm pitch, available in grey and black colors, designed for PCB mounting with straight, right-angle, or long latch options. Made from PBT+25%G.F insulator and brass contacts plated with gold or tin over 50u" nickel, it provides reliable electrical performance with contact resistance of 20 mΩ max. It supports 3A current, 250V AC/DC ratings, insulation resistance of 1000 MΩ at 500V, and operates from -40°C to +105°C, ideal for compact, high-density electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1S101CEU Phenol Latch Header Specifications:
- Pitch: 2.54mm
- Color options: Grey, Black
- Number of positions: 6 to 64
- Material: PBT+25%G.F insulator, Brass contacts
- Plating options: Gold or Tin over 50u" Ni
- Contact Resistance: 20 mΩ max. at 1A
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500 V RMS 60Hz for 1 minute
- Current Rating: 3A max.
- Voltage Rating: 250V AC/DC
- Operating temperature: -40°C to +105°C
- Dimension info: Pins lengths vary per model, with detailed measurements for each number of positions
- Environmental Resistance: RoHS compliant, UL 94V-0 insulator
Buy the Buy Berg Phenol Latch Header Part Number T816140A1S101CEU Online
Secure your electronic projects with Berg's phenol latch header. Featuring 2.54mm pitch, durable brass contacts with gold or tin plating, and a wide range of latch options. Easy to install on PCB, supporting up to 3A current and operating from -40°C to +105°C. Available in multiple positions from 6 to 64, with RoHS compliance and UL 94V-0 insulator for safety and reliability. Purchase online now for efficient assembly and dependable electrical performance.
Buy Berg T816140A1S101CEU phenol latch header now and experience reliable connections with high current rating and flexible latch options for your PCB assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1S101CEU?
You can click on the BUY or RFQ button to purchase T816140A1S101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816140A1S101CEU?
You can download the T816140A1S101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816140A1S101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
