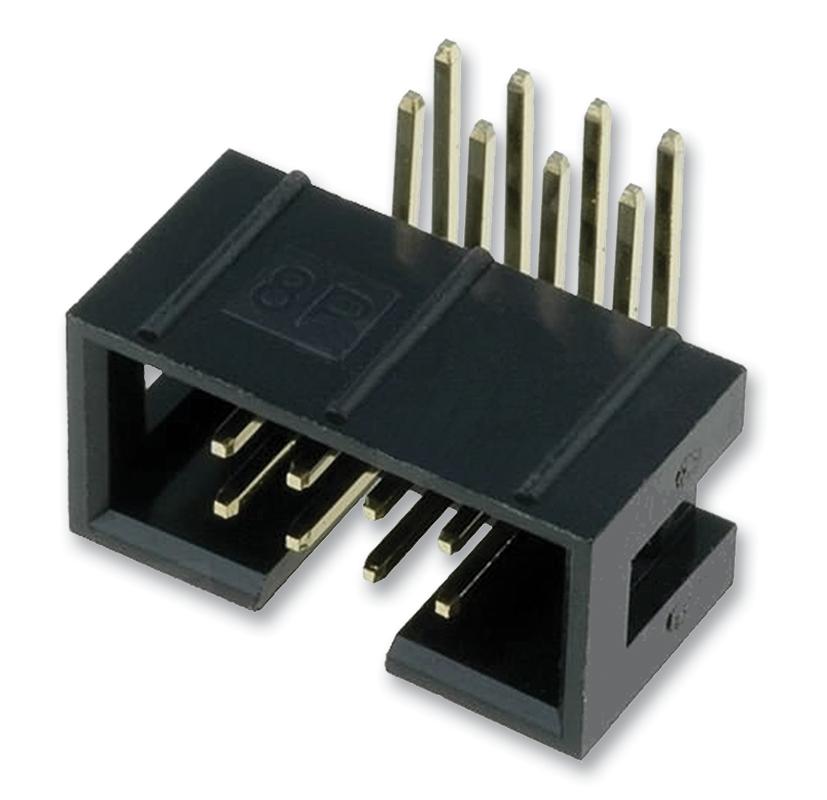

AMPHENOL COMMUNICATIONS SOLUTIONS T821134A1R100CEU Box Header Connector
The T821134A1R100CEU is a 2.54mm pitch Box Header connector without latch, made from thermoplastic UL 94V-0, featuring phosphor bronze contacts plated with full flash gold or selected gold, and under-plated with 50u" nickel. It offers high insulation resistance of 1000 Megohms minimum, dielectric withstand voltage of 1000 VAC/RMS at 60Hz for one minute, and a current rating of 3A per contact. Suitable for industrial and electronic applications requiring reliable, high-quality connections with precise contact and insulation specifications.
AMPHENOL COMMUNICATIONS SOLUTIONS T821134A1R100CEU Box Header Connector Specifications:
- Pitch: 2.54mm
- Material: Thermoplastic, UL 94V-0
- Contact Material: Phosphor Bronze
- Contact Plating: Full flash gold or selected gold
- Nickel Plating: 50u" under-plated
- Insulation Resistance: 1000 Megohms min.
- Dielectric Withstanding Voltage: 1000 VAC/RMS at 60Hz for one minute
- Current Rating: 3A per contact
- Voltage Rating: 250VAC/RMS 60Hz
- Operating Temperature: -40°C to +105°C
- Contact Resistance: 20 mΩ max at 1A
- Number of Positions: 6 or 64, depending on model
- Latch Type: Non-latch or with metal latch options
- Color Options: Grey, Black
- RoHS Compliant: Yes
Buy the Mphenol 7821 R1 – Reliable Connector for Industrial Applications
Purchase the Mphenol 7821 R1 box header connector online today and benefit from high insulation resistance, durable gold-plated contacts, and a robust thermoplastic housing. Designed for industrial and electronic applications, its 2.54mm pitch and high dielectric withstand voltage ensure reliable performance in various environments. With a current capacity of 3A per contact and a temperature range from -40°C to +105°C, this connector offers exceptional durability and safety. Secure your supply now for seamless circuit integration and dependable electrical connections.
Order your Mphenol 7821 R1 reliable connector today and ensure your electronic projects have dependable, high-quality connections with precise specifications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T821134A1R100CEU?
You can click on the BUY or RFQ button to purchase T821134A1R100CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T821134A1R100CEU?
You can download the T821134A1R100CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T821134A1R100CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
