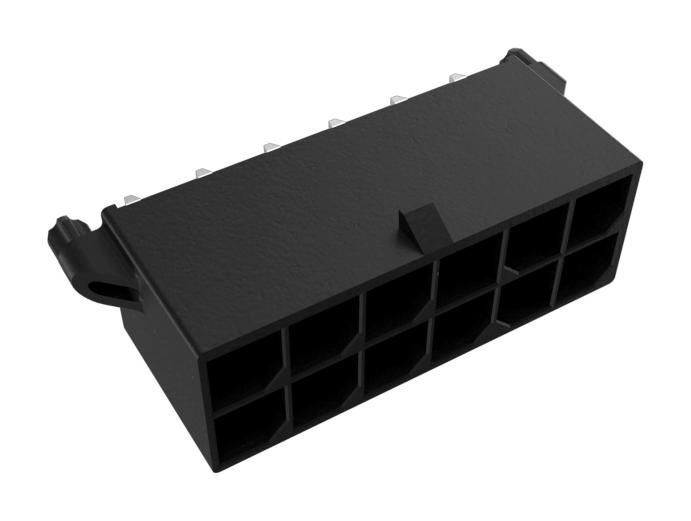

AMPHENOL COMMUNICATIONS SOLUTIONS 1014270810000LF Power Connector
The Minitek Pwr 5.70mm Connector System by Amphenol ICC offers a versatile and high-current solution suitable for power applications. Designed for wire-to-board connections, it supports wire gauges from 16 to 12 AWG and delivers up to 23A per contact. This connector features polarized mating geometry to prevent mis-mating, robust housing with scoop-proof design, and is compliant with environmental and safety standards including UL94V-0 flammability. Its construction ensures secure mating, environmental resistance, and suitability for a broad temperature range from -40°C to 120°C, making it ideal for appliances, telecom, and industrial equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270810000LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Wire Range: 16-12 AWG
- Operating Temperature Range: -40°C to 120°C (Gold Plated), -40°C to 105°C (Tin Plated)
- Housing Material: LCP (UL94V-0), Nylon 66 (UL94V-2)
- Contact Material: High-conductivity copper with optional tin or gold plating
- Mating Force: Tin plated 6.8N, Gold plated 6.0N per circuit
- Unmating Force: Tin plated 6.5N, Gold plated 5.6N per circuit
- Durability: Tin plated 25 cycles, Gold plated 200 cycles
- Voltage Rating: 600V AC/DC
- Insulation Resistance: ≥1000 MΩ
- Contact Resistance: Tin plated 10 mΩ, Gold plated 5 mΩ
- Dielectric Withstand Voltage: 2200V AC
- Certifications: UL 66906, TUV B171234414032
- Flammability: UL94V-0, V-2 rated
- RoHS compliant, Halogen-free
- Connections: Wire-to-board, vertical and right-angle through hole
Buy the Buy Amphenol ICC Minitek Pwr 5.70mm Part Number 1014270810000LF Online
Secure high-current connections effortlessly with the Amphenol ICC Minitek Pwr 5.70mm connector system. Supporting wire gauges from 16 to 12 AWG and delivering up to 23A per contact, this versatile connector is ideal for power applications in appliances, telecom, and industrial equipment. Featuring polarized geometry, scoop-proof housing, and wide temperature tolerance from -40°C to 120°C, it offers excellent environmental resistance, durability, and reliable performance. Simplify your wiring with this standardized, safety-certified power connector—order online today for quick, dependable delivery.
Buy Amphenol ICC Minitek Pwr 5.70mm connector now and ensure reliable high-current power connections for your industrial and consumer electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270810000LF?
You can click on the BUY or RFQ button to purchase 1014270810000LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270810000LF?
You can download the 1014270810000LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270810000LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
