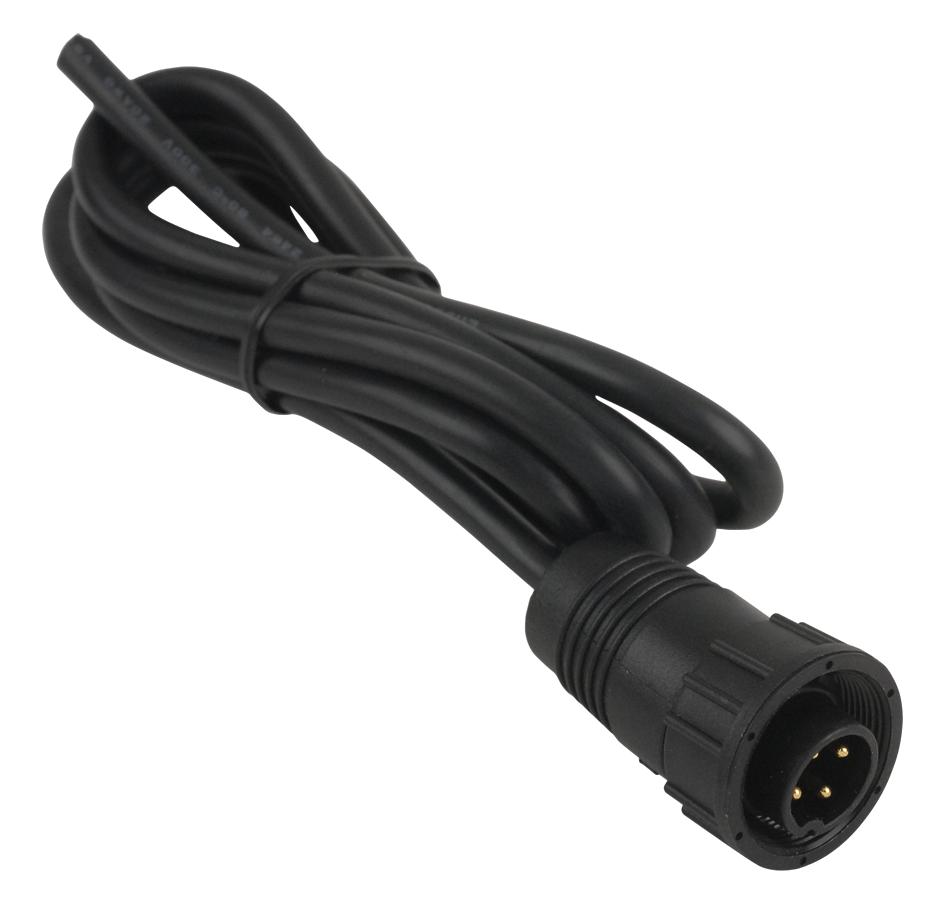

AMPHENOL LTW ACB04AFMMSL7A01 Circular Connector
The AMPHENOL LTW ACB-04AFMM-SL7A01 is a circular connector engineered for demanding industrial applications. Its robust construction and reliable performance make it ideal for connecting cables and panels in various environments. The connector supports multiple pin arrangements and offers options for different mounting styles, ensuring versatility and adaptability. It is designed to provide secure and efficient connections while meeting industry standards for durability and performance.
AMPHENOL LTW ACB04AFMMSL7A01 Circular Connector Specifications:
- Identifications: A Size (Mini Size: 7⁄16˝–28UNS), B Size (Standard Size: 5 ⁄ 8˝–27UNS), C Size (Middle Size: 13 ⁄ 16˝–28UN), D Size (Large Size: 1˝–20UNEF), E Size (Macro Size: 1 3 ⁄ 16˝–20UN
- Description: Panel Mount, Molded with Cable and Field Installable
- Current Rating / Pin Arrangements: 5A: 31, E Size (Macro): 2A:20 to 22, 5A: 18, 20A:2 to 7, D Size (Large): 2A:18, 5A: 7 to 14, 10A: 4 to 6, 20A: 3, 5A+2A:12 or 14, 10A+5A: 8, C Size (Middle): 2A: 10 or 12, 5A: 2 to 8, 10A: 2 to 4, 5A+2A: 8, 10A+5A: 6, B Size (Standard): 2A:4 to 6, 5A:2 and 3, A Size (Mini):
- Material: Contacts: Copper Alloy, Gold Plated; Connector Body: Nylon + GF, UL Recognized
- Temperature Range: Cable: -20°C to +80°C; Connector Body: -40°C to +105°C
- Waterproof Rating: IP66, IP67 or IP68 (Per IEC60590)
- Contact Resistance: ≤10mΩ
- Insulation Resistance: ≥100mΩ at DC 500V
- Durability: 1000 Plug / Unplug Cycles Minimum
- Breakdown Voltage: ≥AC 1000V / 1 Minute, ≥500V / 1 Minute (1.5~5A)
- Corrosion: 48 Hours Salt Spray Contact
- Standard Cable Length: 1, 2, 5, 10M (Standard Cable: UL2464 PVC Jacket)
