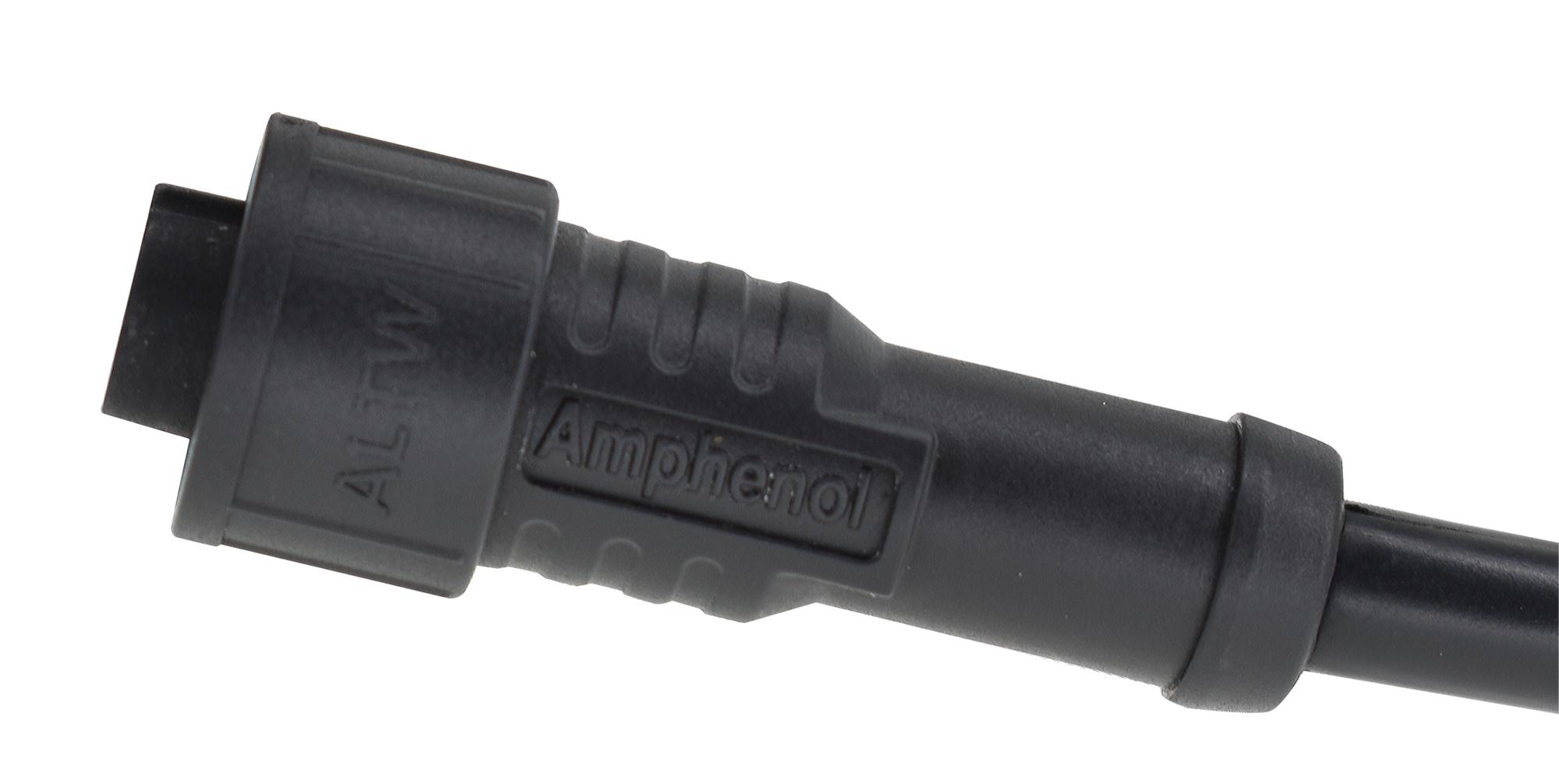

AMPHENOL LTW AD05AFFMQL8D01 Waterproof Connector
The Amphenol LTW X-Lok Mini Size is a compact, lightweight IP68 waterproof connector featuring a push-lock mechanism for quick, easy, and space-efficient connections. It offers audible feedback and a guided key design to ensure error-free and straightforward assembly during installation. This connector is equipped with female contacts, includes strain relief, and is overmolded with cable for durability. It is rated for 5A current and complies with UL 21388 and UL 94-V0 flame-retardancy standards. Suitable for automotive, automation, LED lighting, marine, renewable energy, and security applications.
AMPHENOL LTW AD05AFFMQL8D01 Waterproof Connector Specifications:
- Waterproof Rate: IP68 (Mated)
- Flame Class: UL94V-0 (UV Resistance)
- Housing: Nylon#GF, Black
- Female Pin: Copper Alloy, Gold Plated
- Rated Current: 5A
- Cable Types: UL2464, UL20549, UL2517, UL21388
- Cable Length Tolerance: 0.1M to 99M with specific tolerances
- Pin Configurations: 2Pin, 3Pin, 4Pin, 6Pin, 8Pin
- Cable Gauge: 20AWG, 24AWG, 22AWG depending on model
- Connection Features: Push Lock, Straight (180°), Strain Relief
- Rated Voltage: 300V (for 2-5 Pin), 30V (for 6-8 Pin)
Buy the Amphenol Series X-Lok Mini Waterproof Connector: AD05AFFMQL8D01
Purchase the Amphenol Waterproof Connector AD05AFFMQL8D01 online today for your industrial and automation projects. Designed with a push-lock mechanism, strain relief, and overmolded cable, this compact connector offers IP68 waterproof rating and is rated for up to 5A current. It complies with UL 21388 and UL 94-V0 standards, making it suitable for automotive, LED lighting, marine, renewable energy, and security systems. Simplify your assembly process with a durable, easy-to-use connector that ensures secure, error-free connections in demanding environments.
Get Amphenol AD05AFFMQL8D01 waterproof connector today—built for industrial durability and quick, reliable connections.
Frequently Asked Questions
Where can I buy AMPHENOL LTW AD05AFFMQL8D01?
You can click on the BUY or RFQ button to purchase AD05AFFMQL8D01 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part AD05AFFMQL8D01?
You can download the AD05AFFMQL8D01 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of AD05AFFMQL8D01?
AMPHENOL LTW
