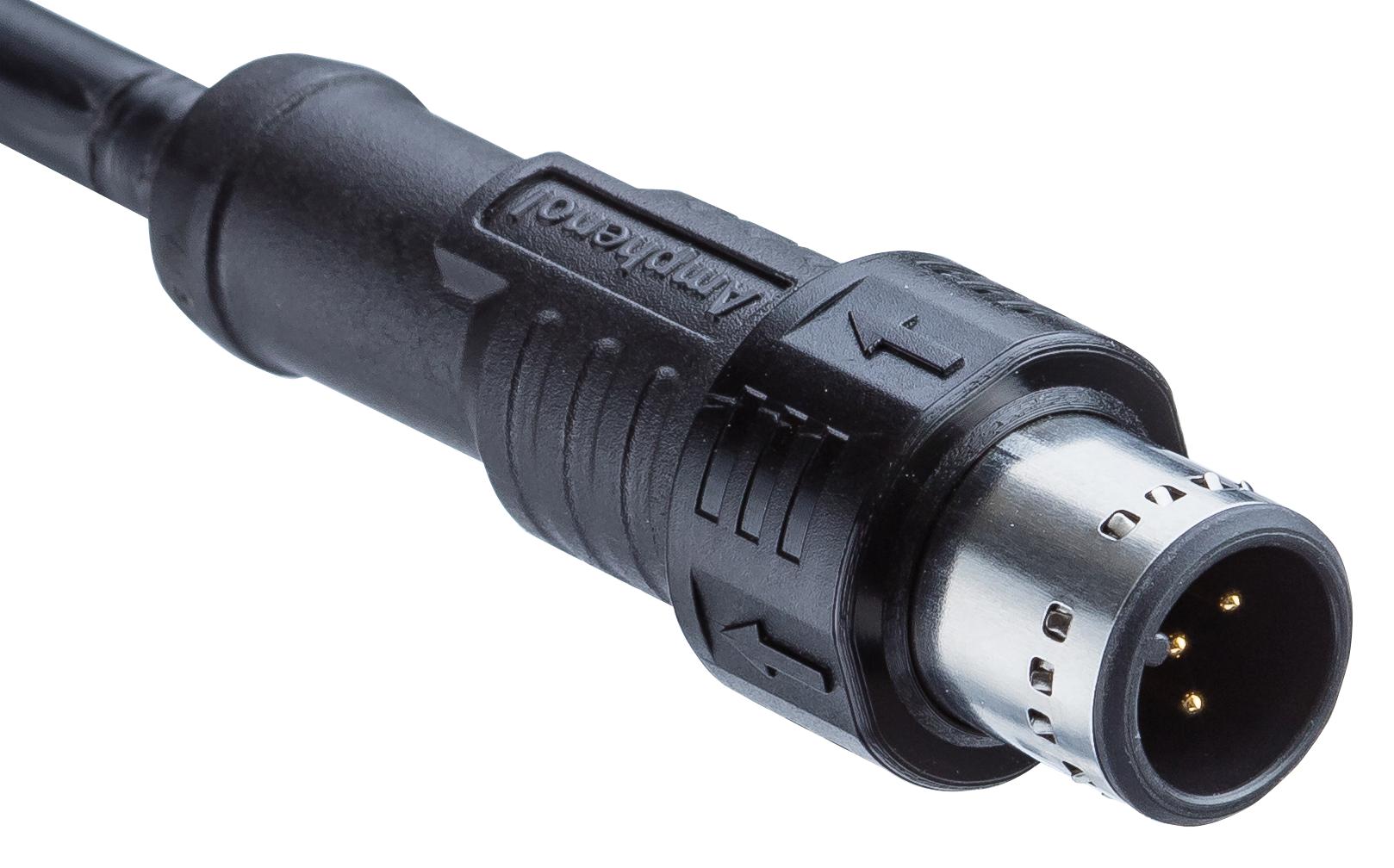

AMPHENOL LTW M12B05BMMMPL8D10 M12 Push Pull Cable Connector
The AMPHENOL LTW M12B-05BMMM-PL8D10 is a high-performance M12 circular connector engineered for demanding industrial applications. Its robust construction, featuring a thermoplastic housing, copper alloy pins with gold plating, and a secure push-pull locking mechanism, ensures reliable connectivity. The IP68 waterproof rating provides protection against dust and water ingress, making it ideal for use in harsh environments. Available with PVC or PUR cable jackets, this connector offers flexibility in cable selection to meet specific application requirements. It is commonly used in industrial automation, robotics, and automotive systems where reliable and secure data and power transmission are essential.
AMPHENOL LTW M12B05BMMMPL8D10 M12 Push Pull Cable Connector Specifications:
- Housing: Thermoplastic, UL 94V-0
- Male Pin: Copper Alloy, Gold Plated
- Shell & Latch: Metal
- Outer Mold: Thermoplastic
- Contact Resistance: 10mΩ (Max.)
- Insulation Resistance: 100 MΩ (Min.)
- Voltage Proof: 1.0 KV
- Rated Voltage: 60V D.C. or A.C.
- Rated Current: 4.0 A
- Durability: 500 Cycles
- Waterproof Rating: IP 68
- Temperature Range (PVC Cable): -20~+80°C
- Temperature Range (PUR Cable): -20~+85°C
- Cable Jacket Options: PVC (Yellow), PUR (Black)
- Cable OD (PVC): 5.1mm
- Cable OD (PUR): 4.4mm
- Pin Assignment: Front View
Buy the M12B-05BMMM-PL8D10 AMPHENOL LTW M12 Push Pull Cable Connector | myMectronic
Securely purchase the AMPHENOL LTW M12B-05BMMM-PL8D10 M12 Push Pull Cable Connector for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL LTW M12B05BMMMPL8D10?
You can click on the BUY or RFQ button to purchase M12B05BMMMPL8D10 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part M12B05BMMMPL8D10?
You can download the M12B05BMMMPL8D10 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of M12B05BMMMPL8D10?
AMPHENOL LTW
