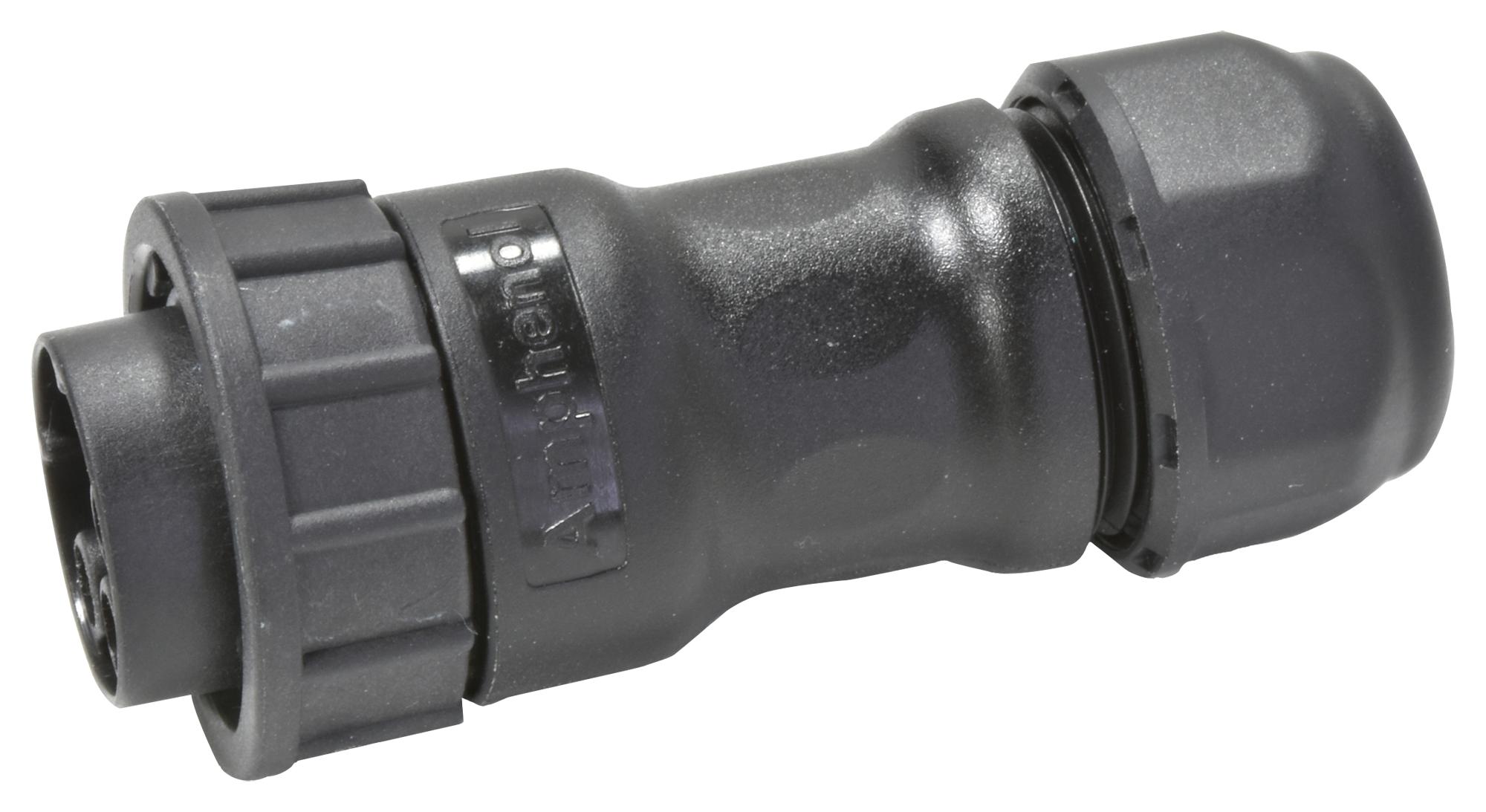

AMPHENOL LTW ADC07BFFCLL7AP0 Circular Connector
The AMPHENOL LTW ADC-07BFFC-LL7AP0 is a field installable circular connector designed for demanding industrial applications. Constructed with nylon+GF for the connector body, copper alloy gold-plated pins, and silicone seals, this connector offers excellent durability and environmental protection. It boasts a high dielectric withstand voltage of 1600VAC, a low contact resistance of 10mΩ max, and a robust IP67 water-proofing rating. Suitable for a wide range of applications including automotive, industrial automation, and outdoor equipment, the ADC-07BFFC-LL7AP0 ensures reliable performance in harsh environments. It supports various wire conductor sizes and offers multiple contact configurations to meet diverse application needs.
AMPHENOL LTW ADC07BFFCLL7AP0 Circular Connector Specifications:
- Connector: Nylon+GF, Black
- Pins: Copper Alloy, Gold Plated
- Seal & O-Ring: Silicone, Gray
- UL Rating: UL 94V-0, f1
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100 MΩ Min
- Dielectric Withstand Voltage: 1,600 VAC
- Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Conductor (5A): 22AWG ~ 20AWG (69.0)
- Wire Conductor (20A): 14AWG ~ 12AWG
- Wire Insulation OD (5A): 1.9mm Max
- Wire Insulation OD (20A): 4.3mm Max
- Torque for Clamp Ring: 6~8 kgf-cm
- Torque for Seal Nut: 6~8 kgf-cm
- Waterproof Rating: IP67 (Mated)
- Temperature Range: -40°C to 105°C
- Salt Spray: Mated, 1000 Hours
- Safety Compliance: UL 1977
