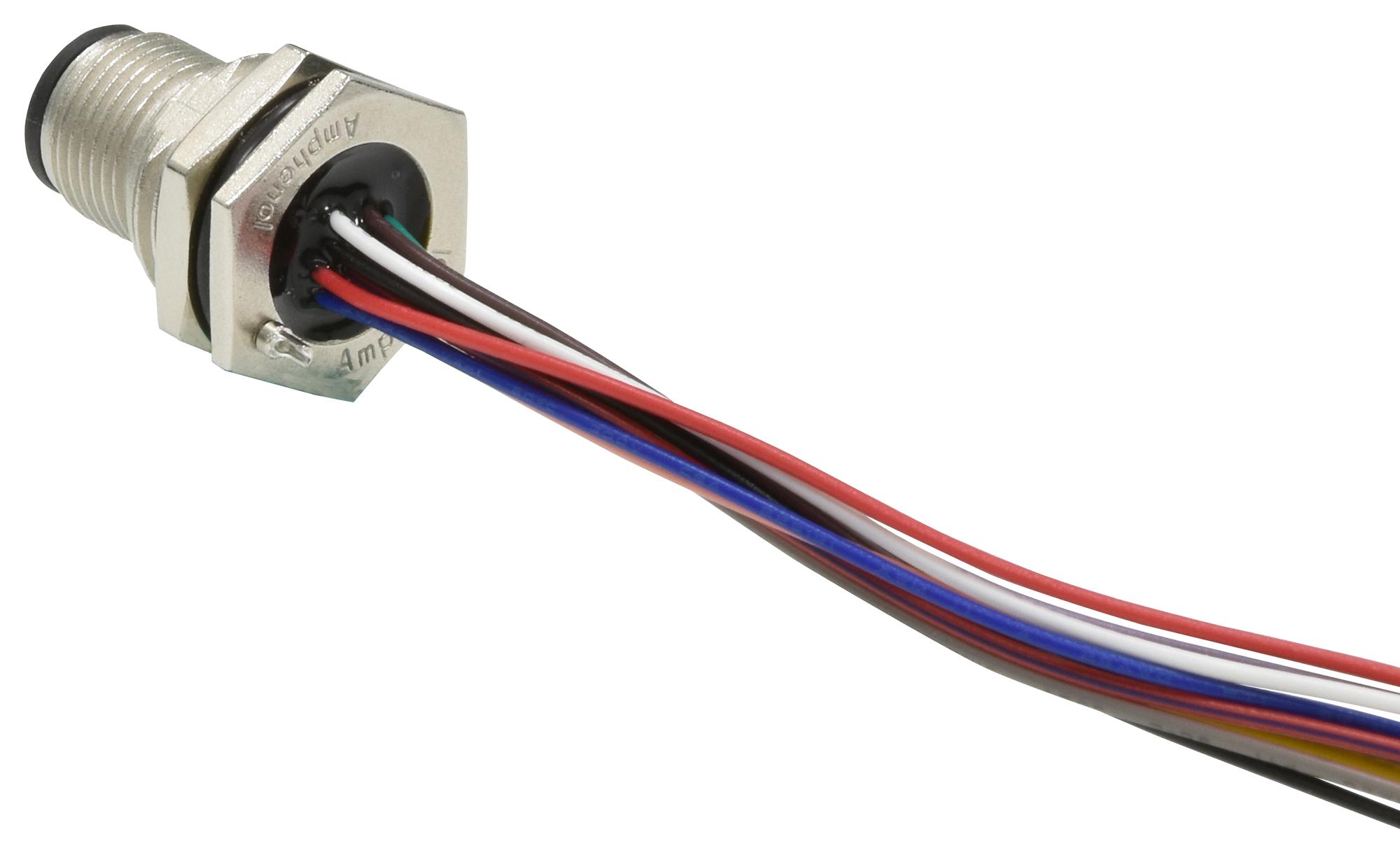

AMPHENOL LTW MSBS04PMMCSF8B30 Industrial Waterproof Connector
The shielded waterproof connector features a gray shield and black body, rated IP68 for water and dust resistance. Designed for robust industrial applications, it includes a male copper alloy pin with gold plating, zinc alloy screw nut, and a black Viton O-ring for sealing. The connector accommodates panel thickness up to 4.5mm, rated 60V AC/DC and 4A current. Its housing is made of durable nylon GF, with a wire harness length ranging from 150mm to 1000mm, suitable for secure, reliable connections in harsh environments.
AMPHENOL LTW MSBS04PMMCSF8B30 Industrial Waterproof Connector Specifications:
- Housing Material: Nylon GF, Black
- Pin Material: Copper Alloy, Gold Plated
- Screw Nut Material: Zinc Alloy, Nickel Plated
- O-Ring: Viton, Black
- Rated Voltage: 60V AC/DC
- Rated Current: 4A
- Operating Temperature: -25 to 85°C
- Panel Thickness Max: 4.5mm
- Waterproof Rate: IP68
- Wire Harness Length: 150mm to 1000mm (options vary)
- Connectors: Male, shielded, rear mount
- Housing Color: Black
- Wire Gauge Range: Not specified explicitly, but consistent with UL1061 harness standards
Buy the Buy Allen Pan MSBS04PMMCSF8B30 Part Number MSBS04PMMCSF8B30 Online
Enhance your industrial connections with this waterproof shielded connector featuring IP68 rating, durable nylon housing, gold-plated copper pins, and adjustable wire harness. Perfect for harsh environments requiring secure, leak-proof connections up to 60V and 4A. Its zinc alloy screw nut and Viton O-ring ensure long-lasting sealing and protection from dust and water ingress. Compatible with panel thickness up to 4.5mm, available in various wire harness lengths from 150mm to 1000mm for versatile installation options. Purchase online now to secure reliable performance and durability in demanding applications.
Buy Allen Pan MSBS04PMMCSF8B30 now and experience unmatched reliability and performance with waterproof industrial connectors.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSBS04PMMCSF8B30?
You can click on the BUY or RFQ button to purchase MSBS04PMMCSF8B30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSBS04PMMCSF8B30?
You can download the MSBS04PMMCSF8B30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSBS04PMMCSF8B30?
AMPHENOL LTW
