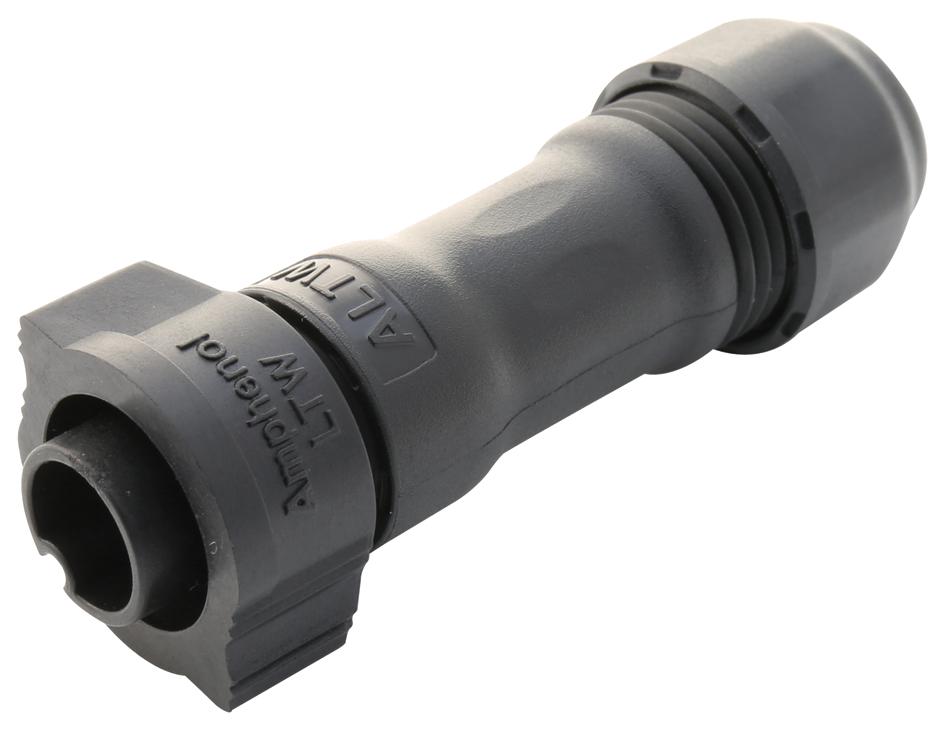

AMPHENOL LTW BB03BFMAQL8SPP Industrial Sealed Connector
The BB03BFMAQL8SPP is a waterproof, high-reliability connector rated IP68, designed for power and data transfer with a current capacity of 10A and voltage up to 300Vac. Featuring a durable nylon+GF body, copper alloy pins with gold plating, and silicone O-rings, this connector meets UL 1977 safety standards. It withstands -40°C to 105°C temperatures, offers durability for 1000 cycles, and resists salt spray. Ideal for demanding industrial and outdoor applications requiring secure, sealed electrical connections.
AMPHENOL LTW BB03BFMAQL8SPP Industrial Sealed Connector Specifications:
- Material: Nylon+GF, Black
- Pins: Copper Alloy, Gold Plated
- Seal & O-Ring: Silicone, Gray
- Waterproof Rating: IP68 (Mated, 24 hours)
- Temperature Range: -40°C to 105°C
- Salt Spray Resistance: 1000 hours
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100MΩ Min
- Dielectric Withstand Voltage: 1,600 Vac
- Durability: 1000 Cycles
- Wire Range: 18-16 AWG, OD Max 2.7mm
- Clamp Ring Torque: 6~8 kgf-cm
- Seal Nut Torque: 6~8 kgf-cm
Buy the Amphenol Series Industrial Connector: BB03BFMAQL8SPP
Purchase the Amphenol industrial sealed connector BB03BFMAQL8SPP online today for robust and weatherproof electrical connections. Featuring a durable nylon+GF body, gold-plated copper pins, and silicone O-rings, this connector is designed to withstand harsh environments, extreme temperatures from -40°C to 105°C, and salt spray for 1000 hours. With an IP68 waterproof rating, it ensures secure power and data transfer in outdoor and industrial settings. Easy to install, durable for 1000 cycles, and compliant with UL 1977 safety standards, it's the ideal choice for rugged applications requiring reliable, sealed electrical connections.
Buy Amphenol BB03BFMAQL8SPP now and experience unmatched reliability and rugged outdoor performance with sealed IP68 rated connectors.
Frequently Asked Questions
Where can I buy AMPHENOL LTW BB03BFMAQL8SPP?
You can click on the BUY or RFQ button to purchase BB03BFMAQL8SPP from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part BB03BFMAQL8SPP?
You can download the BB03BFMAQL8SPP datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of BB03BFMAQL8SPP?
AMPHENOL LTW
