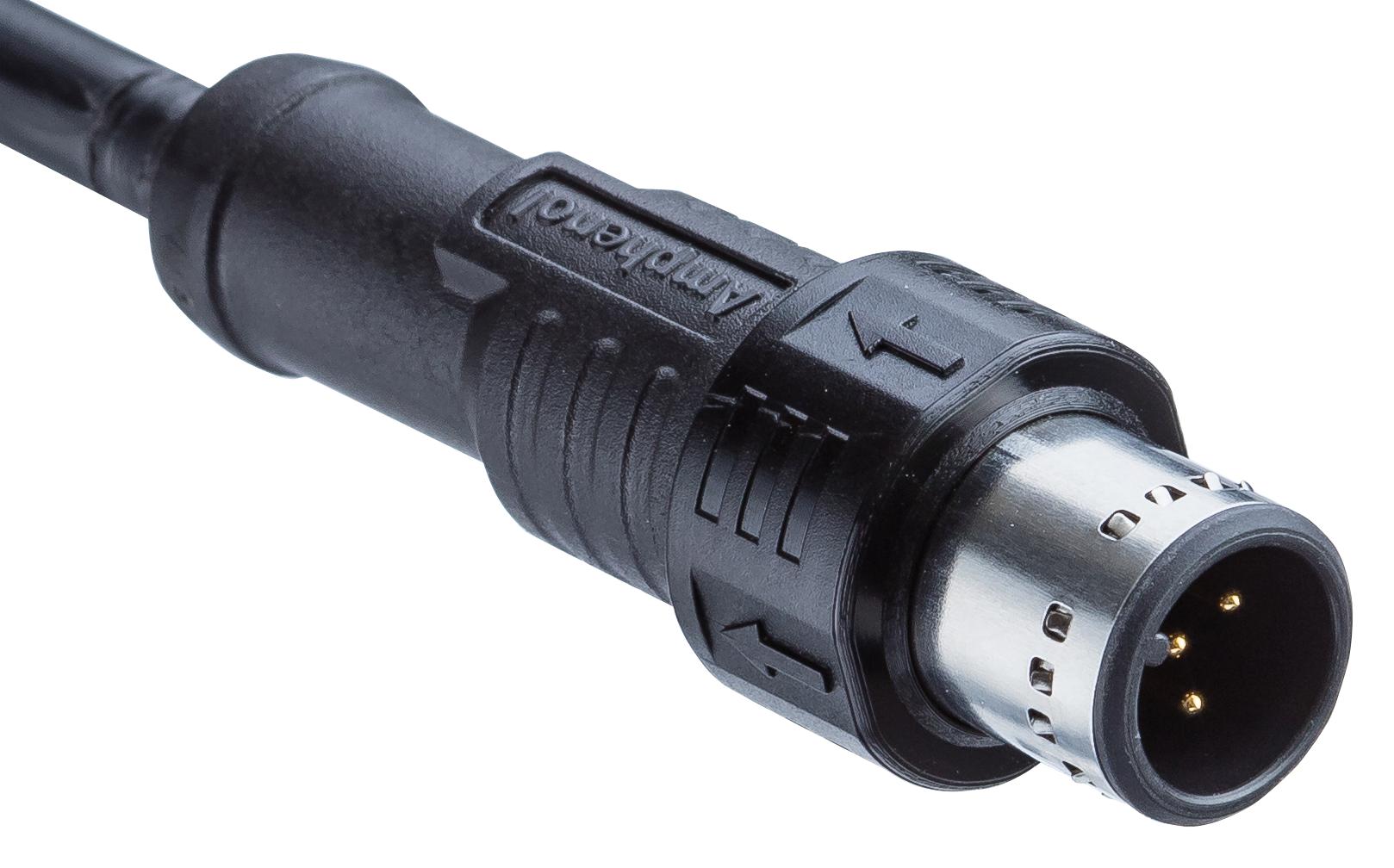

AMPHENOL LTW M12B05BMMMPL8D05 M12 Push Pull Cable Connector
The AMPHENOL LTW M12B-05BMMM-PL8D05 is a high-performance M12 push-pull cable connector engineered for demanding industrial applications. Its robust design ensures a secure and reliable connection, even in challenging environments. The connector's IP68 rating provides excellent water and dust protection, making it suitable for outdoor and harsh industrial settings. It is commonly used in automation, industrial networking, and sensor applications where frequent mating and robust performance are critical. Available with PVC or PUR cable jackets, this connector offers flexibility in cable selection to meet specific application requirements.
AMPHENOL LTW M12B05BMMMPL8D05 M12 Push Pull Cable Connector Specifications:
- Housing: Thermoplastic, UL 94V-0
- Male Pin: Copper Alloy, Gold Plated
- Shell & Latch: Metal
- Outer Mold: Thermoplastic
- Contact Resistance: 10mΩ (Max.)
- Insulation Resistance: 100 MΩ (Min.)
- Voltage Proof: 1.0 KV
- Rated Voltage: 60V D.C. or A.C.
- Rated Current: 4.0 A
- Durability: 500 Cycles
- Waterproof Rating: IP 68
- Temperature Range (PVC Cable): -20~+80°C
- Temperature Range (PUR Cable): -20~+85°C
- Cable Jacket Options: PVC (Yellow), PUR (Black)
- Cable OD (PVC): 5.1mm
- Cable OD (PUR): 4.4mm
- Pin Assignment: Front View
