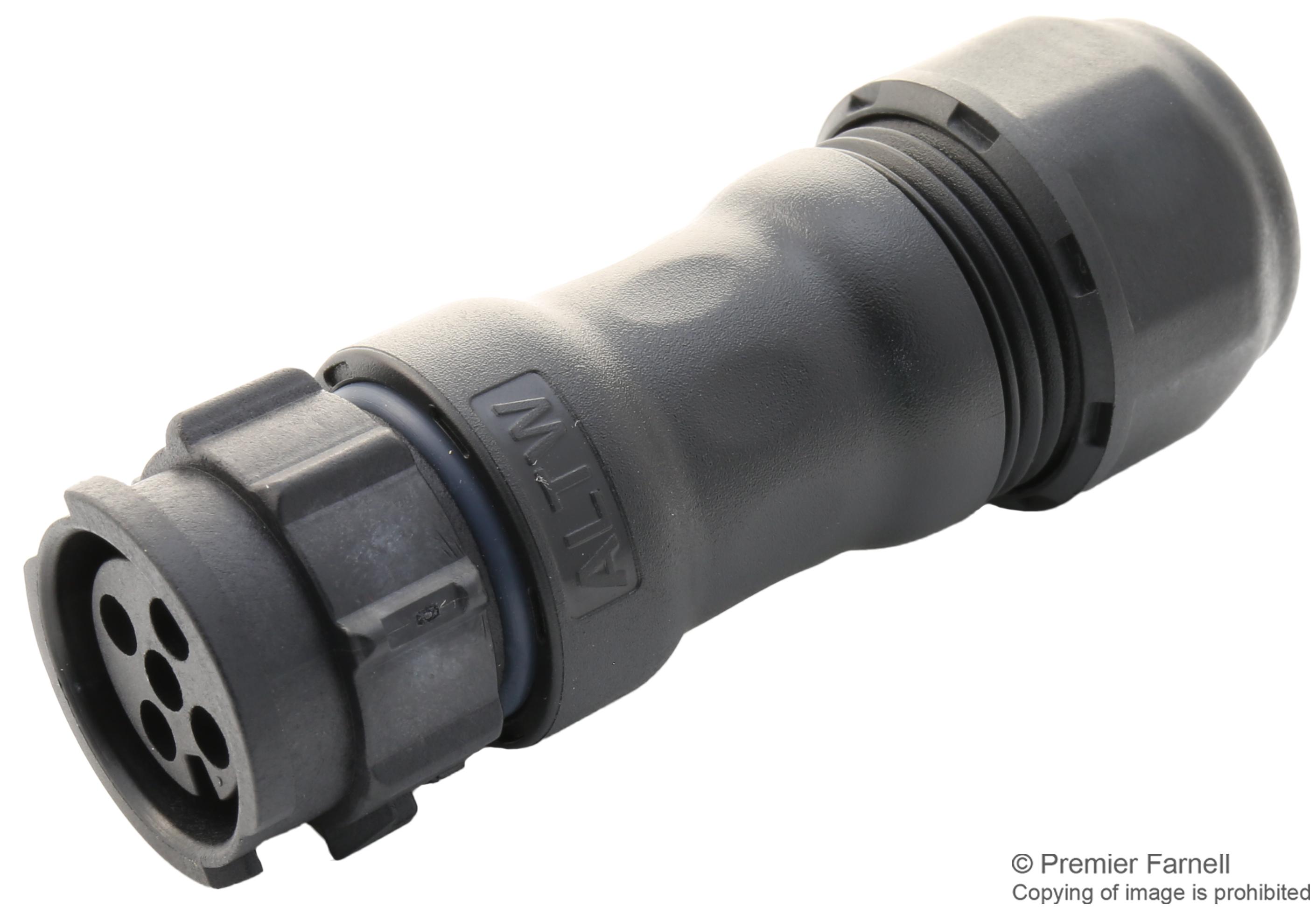

AMPHENOL LTW CB05BMFAQL8MP0 Waterproof Connector
This waterproof connector offers durability, with a waterproof rating of IP68 when mated and tested over 24 hours. Made from nylon+GF for the body and copper alloy with gold plating for pins, it supports currents of 5A, 10A, and 20A with wire ranges from 22AWG to 12AWG. It withstands temperatures from -40°C to 105°C, resists salt spray for 1000 hours, and complies with UL 1977 safety standards. Ideal for data and power applications, it features silicone seals and can endure 1000 connection cycles for reliable performance.
AMPHENOL LTW CB05BMFAQL8MP0 Waterproof Connector Specifications:
- Connector Material: Nylon+GF, Black
- Pin Material: Copper Alloy, Gold Plated
- Waterproof Rating: IP68 (Mated, IM/24 Hours)
- Temperature Range: -40°C to 105°C
- Salt Spray Resistance: 1000 Hours
- Current Ratings: 5A (22-20AWG), 10A (18-16AWG), 20A (14-12AWG)
- Wire Insulation OD: 1.9mm (5A), 2.7mm (10A), 4.3mm (20A)
- Mechanical Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Dielectric Withstand Voltage: 1,600 Vac
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100MΩ Min
- Clamp Ring Torque: 6~8 kgf-cm
- Seal & O-Ring: Silicone, Gray
- UL Rated: UL 94V-0, flammable
- Certifications: UL 1977
- Cable OD Compatibility: 6.0~12.0mm
- Field Installable: Yes
Buy the Amphenol Series Waterproof Connector: CB05BMFAQL8MP0
Purchase the waterproof connector designed for robust applications where environmental sealing is critical. Made from durable nylon+GF with gold-plated copper pins, it supports current ratings from 5A to 20A and operates efficiently within temperatures from -40°C to 105°C. The connector withstands salt spray for 1000 hours and features an IP68 waterproof rating when mated. Ideal for data, power, and industrial use, it ensures secure, long-lasting connections during demanding operational conditions. Buy now for reliable performance.
Get Amphenol waterproof connector CB05BMFAQL8MP0 today—built for precision, durability, and reliable electrical connection in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW CB05BMFAQL8MP0?
You can click on the BUY or RFQ button to purchase CB05BMFAQL8MP0 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part CB05BMFAQL8MP0?
You can download the CB05BMFAQL8MP0 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of CB05BMFAQL8MP0?
AMPHENOL LTW
