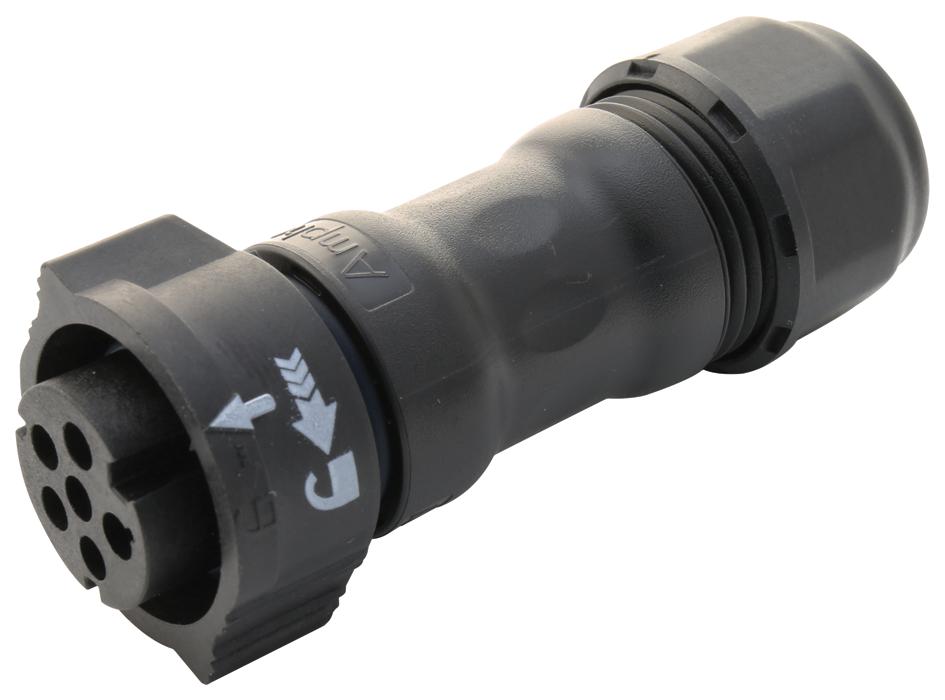

AMPHENOL LTW CB06BFFAQL8SP0 industrial connector
This industrial connector features waterproof IP68-rated sealing, with a gray silicone O-ring and robust copper alloy contacts plated with gold for enhanced conductivity. Designed for reliable power and data transmission, it withstands temperature ranges from -40°C to 105°C and has a dielectric withstand voltage of 1,600 Vac. The connector supports multiple contact configurations, with torque-required clamp rings and seal nuts for secure assembly. Suitable for harsh environments, it is UL 1977 compliant and RoHS certified, ideal for industrial automation and heavy-duty equipment applications.
AMPHENOL LTW CB06BFFAQL8SP0 industrial connector Specifications:
- Waterproof Rating: IP68 (Mated, 24 hours)
- Temperature Range: -40°C to 105°C
- Dielectric Withstand Voltage: 1,600 Vac
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100MΩ Min
- Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Range: 22AWG~20AWG, 18AWG~16AWG, 14AWG~12AWG
- Insulation OD: Max 1.9mm, 2.7mm, 4.3mm
- Torque Force Clamp Ring: 6~8 kgf-cm
- Torque Force Seal Nut: 6~8 kgf-cm
- Material: Copper Alloy contacts, silicone O-ring
- Seal Material: Silicone
- Certification: UL 1977, RoHS
- Dimensions: Supports multiple contact configurations, cable OD 6.0~12.0mm
Buy the Industrial Connector CB06BFFAQL8SP0 – Reliable Waterproof Connector for Industrial Applications
Purchase the industrial waterproof connector CB06BFFAQL8SP0 online today to ensure secure, reliable power and data transmission in demanding industrial settings. Featuring an IP68 waterproof rating, UL 1977 compliance, gold-plated contacts, and reinforced sealing with silicone O-rings, this connector is designed for longevity and durability in extreme conditions. Its robust construction supports multiple contact configurations while maintaining ease of installation. Ideal for automation systems, manufacturing equipment, and heavy-duty industrial applications, buy now for seamless integration and long-term operational efficiency.
Buy CB06BFFAQL8SP0 industrial waterproof connector now and experience unmatched reliability, secure sealing, and high performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW CB06BFFAQL8SP0?
You can click on the BUY or RFQ button to purchase CB06BFFAQL8SP0 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part CB06BFFAQL8SP0?
You can download the CB06BFFAQL8SP0 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of CB06BFFAQL8SP0?
AMPHENOL LTW
