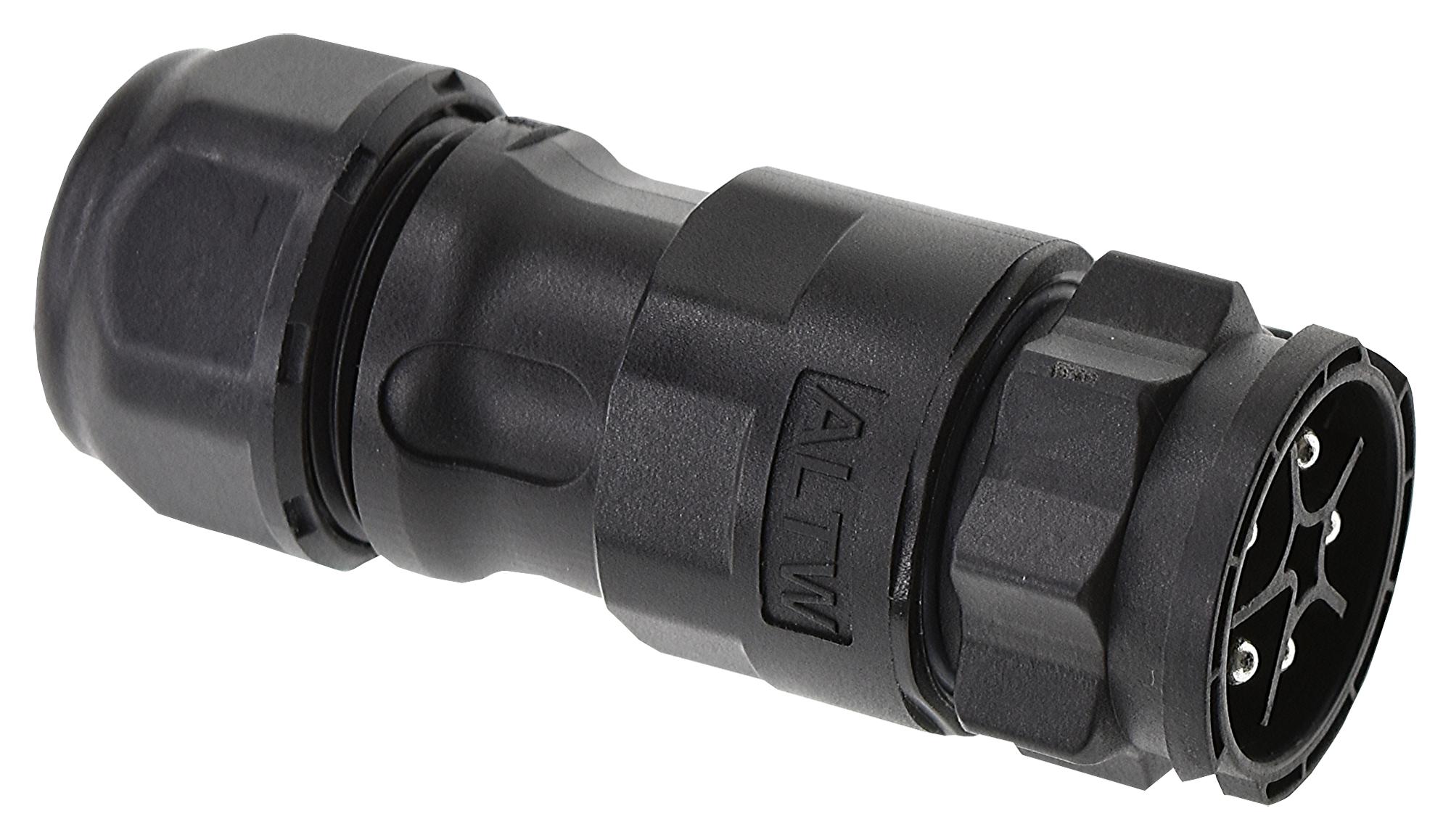

AMPHENOL LTW CC02BMFBQL8APP Sealing Nut Clamp Ring
The sealing nut clamp ring is a durable electrical connector component designed for reliable sealing and connection in industrial applications. Made from high-quality thermoplastic and copper alloy with gold plating, it features rubber gaskets and O-rings for waterproofing. It withstands temperature ranges from -40°C to 105°C and IP68 waterproof rating. Certification includes UL 94V-0 and UL 1977 compliance. Designed for wire ranges from 14AWG to 12AWG, it offers 1000 electrical cycles, with mechanical torque rated for secure installation, ensuring durability and safety in various environments.
AMPHENOL LTW CC02BMFBQL8APP Sealing Nut Clamp Ring Specifications:
- Material: Connector thermoplastic, Terminal copper alloy with gold plating, Gasket & O-Ring rubber
- UL Rated: UL 94V-0, UL 1977 compliant
- Electrical Resistance: Contact resistance 10mΩ max, Insulation resistance 100MΩ min
- Dielectric Voltage: 1,600 Vac
- Mechanical Durability: 1000 cycles, Tensile strength 10 kgf
- Wire Range: 14AWG to 12AWG, Max insulation OD 4.0mm
- Torque Force: Clamp ring 6–8 kgf-cm, Seal nut 8–15 kgf-cm
- Environmental: IP68 waterproof, Temperature -40°C to 105°C, Salt spray 500 hours
- Certifications: UL 94V-0, UL 1977, RoHS compliance
Buy the Universal High-Quality Connector – Reliable Sealing Nut Clamp Ring for Industrial Applications
Purchase the sealing nut clamp ring online today for your electrical projects. This high-quality connector ensures waterproof sealing, withstands extreme temperatures, and offers long-lasting durability. Designed for easy installation with secure torque specifications, it supports wire sizes from 14AWG to 12AWG with a maximum insulation diameter of 4.0mm. Certified for safety and environmental resistance, this clamp ring is ideal for industrial, outdoor, and harsh environment applications. Order now to get reliable performance and quick delivery for your electrical assembly needs.
Order your Amphenol LTW sealing nut clamp ring today and ensure secure, waterproof electrical connections with durable performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW CC02BMFBQL8APP?
You can click on the BUY or RFQ button to purchase CC02BMFBQL8APP from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part CC02BMFBQL8APP?
You can download the CC02BMFBQL8APP datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of CC02BMFBQL8APP?
AMPHENOL LTW
