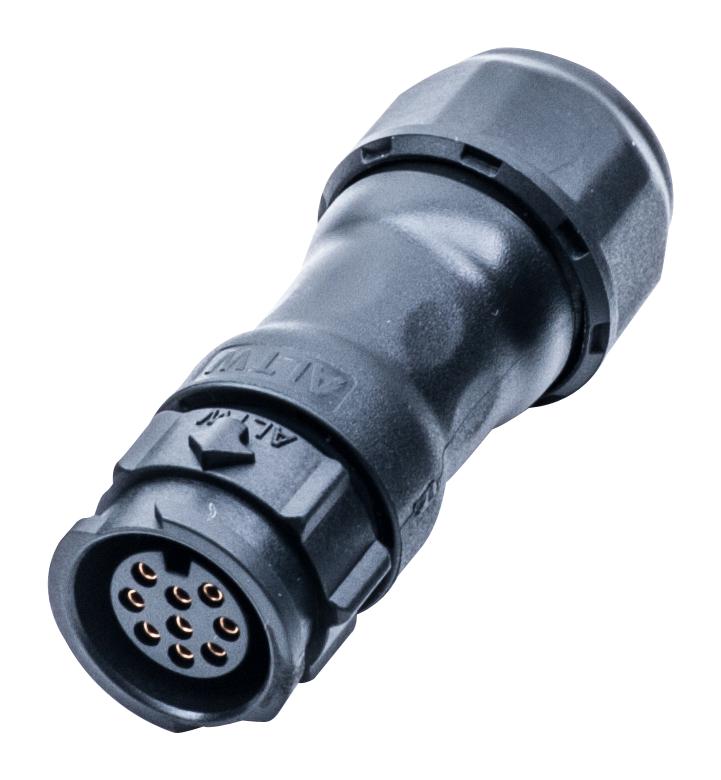

AMPHENOL LTW CD09BMFAQL8MP0 industrial waterproof connector
This high-performance waterproof connector features a nylon+GF housing with gold-plated copper alloy pins for reliable electrical contact. Designed for industrial use, it withstands harsh environments with an IP68 rating, temperatures from -40°C to 105°C, and has UL 1977 safety certification. The connector supports currents of 5A, 10A, or 20A depending on wire gauge, with durable construction rated for 1000 cycles. It includes silicone seals, overmolded cable options, and a clamp ring for secure termination, making it ideal for data and power applications in industrial, automation, and control systems.
AMPHENOL LTW CD09BMFAQL8MP0 industrial waterproof connector Specifications:
- Housing Material: Nylon+GF, Black
- Pin Material: Copper Alloy, Gold Plated
- Seal & O-Ring: Silicone, Gray
- UL Rated: UL 94V-0, flammability
- Waterproof Rating: IP68 (Mated, IM/24 Hours)
- Temperature Range: -40°C to 105°C
- Salt Spray Resistance: 1000 Hours
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100MΩ Min
- Dielectric Withstand Voltage: 1,600 Vac
- Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Range: 22AWG~20AWG (5A), 18AWG~16AWG (10A), 14AWG~12AWG (20A)
- Wire Insulation OD: 1.9mm Max (5A), 2.7mm Max (10A), 4.3mm Max (20A)
- Clamp Ring Torque: 6~8 kgf-cm
- Seal Nut Torque: 6~8 kgf-cm
- Waterproof and Temperature resistant structure, suitable for industrial and automation systems
Buy the Amphenol Waterproof Connector – Reliable Industrial Seal for Data and Power
Secure your industrial data and power connections with this waterproof connector. Featuring a robust nylon+GF housing, gold-plated pins, and silicone seals, it ensures reliable performance even in the harshest environments. Rated IP68, with temperature tolerance from -40°C to 105°C and UL safety certification, it supports currents from 5A to 20A. Its durable design withstands over 1000 mating cycles, salt spray, and demanding conditions—making it the ideal choice for automation, control systems, and industrial equipment.
Buy Amphenol waterproof connector now and experience unmatched reliability and performance in industrial, automation, and control applications.
Frequently Asked Questions
Where can I buy AMPHENOL LTW CD09BMFAQL8MP0?
You can click on the BUY or RFQ button to purchase CD09BMFAQL8MP0 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part CD09BMFAQL8MP0?
You can download the CD09BMFAQL8MP0 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of CD09BMFAQL8MP0?
AMPHENOL LTW
