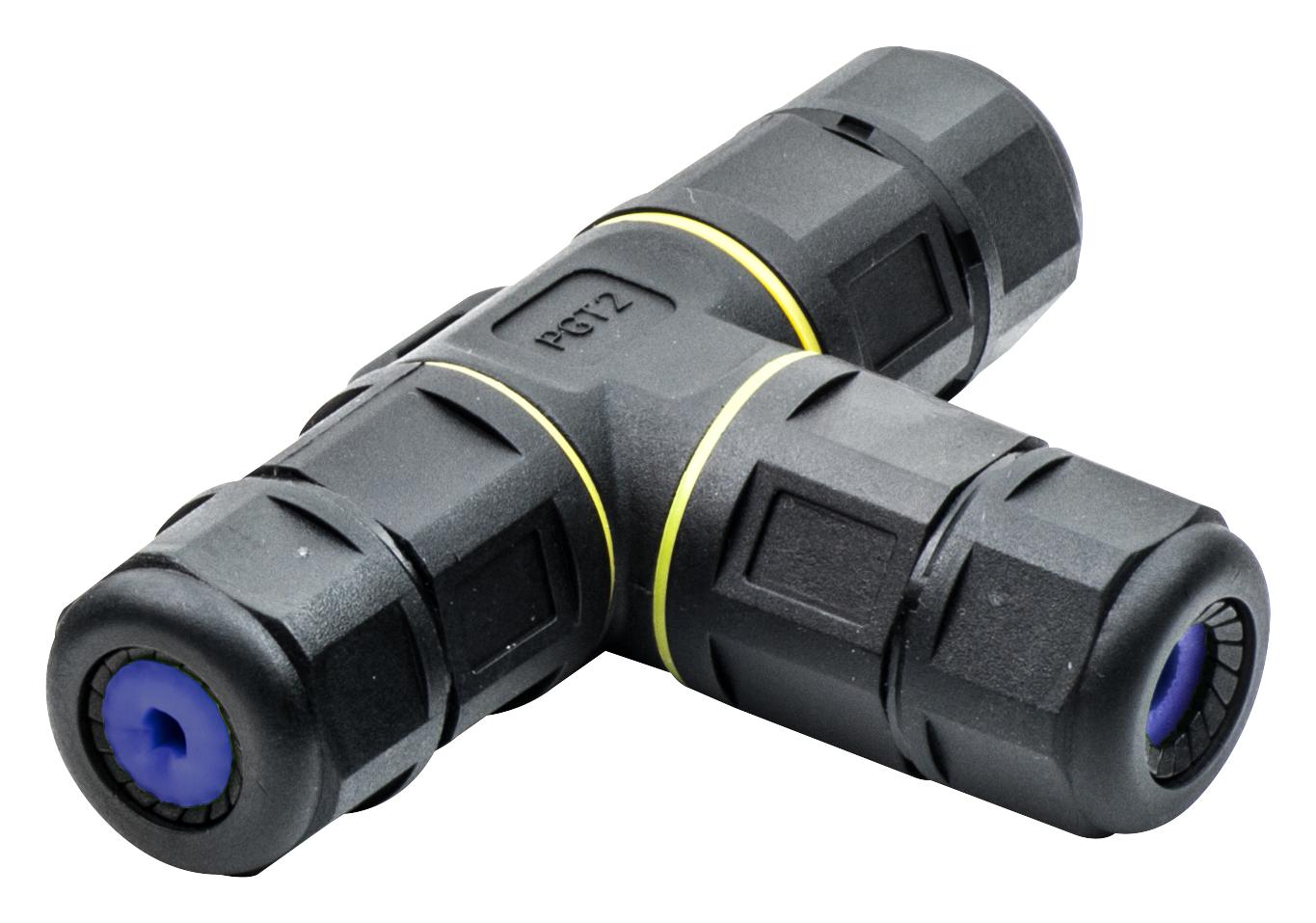

AMPHENOL LTW SCLPGT202BL Waterproof T-Branch Connector
The Amphenol LTW SC-L-PGT2-02-BL is a durable screw-type T-branch connector designed for quick, secure installation in waterproof applications. It features a blue sealing collar compatible with cables 4.5mm to 6.5mm in outer diameter and offers an IP68 rating, allowing submersion up to 50 meters for 24 hours. Rated for 20A and 450VAC, it includes nickel-plated brass contacts and stainless steel screws for corrosion resistance. The black PA66+GF housing, silicone gaskets, PA6+GF gland nut, and silicone sealing ensure reliable outdoor performance. Supports wire sizes 14–18 AWG, with UV resistance tested for 720 hours, making it ideal for harsh environments.
AMPHENOL LTW SCLPGT202BL Waterproof T-Branch Connector Specifications:
- Waterproof rating: IP68 (50m, 24hrs)
- Number of Positions: 2P (02)
- Current Rating: 20A for 2P
- Voltage Rating: 450V ac/dc
- Operating Temperature: -40°C to 105°C
- Wire Section: 14~18 AWG (0.75~2.5 mm²)
- Sealing Collar Color: Blue (Code @ (BL))
- Cable Outer Diameter Range: 4.5~6.5mm
- Gland Nut: PA6+GF, Black
- Gasket: Silicone, Yellow
- L-Gasket: Silicone, Yellow
- Seal: Silicone
- Gland Pipe: PA66, Black
- Housing Material: PA66+GF, Black
- Contact Material: Brass, Nickel-Plated
- Screw Material: Stainless Steel, Nickel-Plated
- UV Resistance Test Duration: 720 hours
Buy the Buy Amphenol Waterproof T-Branch Connector Part Number SCLPGT202BL Online
Order the Amphenol waterproof T-branch connector now for reliable, secure outdoor connections. With an IP68 rating, it supports wire sizes from 14 to 18 AWG, featuring durable nickel-plated brass contacts and stainless steel screws. Its robust PA66+GF housing, silicon gaskets, and UV resistance ensure long-lasting performance in harsh environments. Easy to install with color-coded sealing collars, it is perfect for applications where waterproofing and durability are vital. Buy online today and ensure secure connections with a trusted, high-quality solution built for outdoor use.
Get Amphenol waterproof T-branch connector today—designed for outdoor durability and quick installation, supporting 20A current and reliable sealing.
Frequently Asked Questions
Where can I buy AMPHENOL LTW SCLPGT202BL?
You can click on the BUY or RFQ button to purchase SCLPGT202BL from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part SCLPGT202BL?
You can download the SCLPGT202BL datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of SCLPGT202BL?
AMPHENOL LTW
