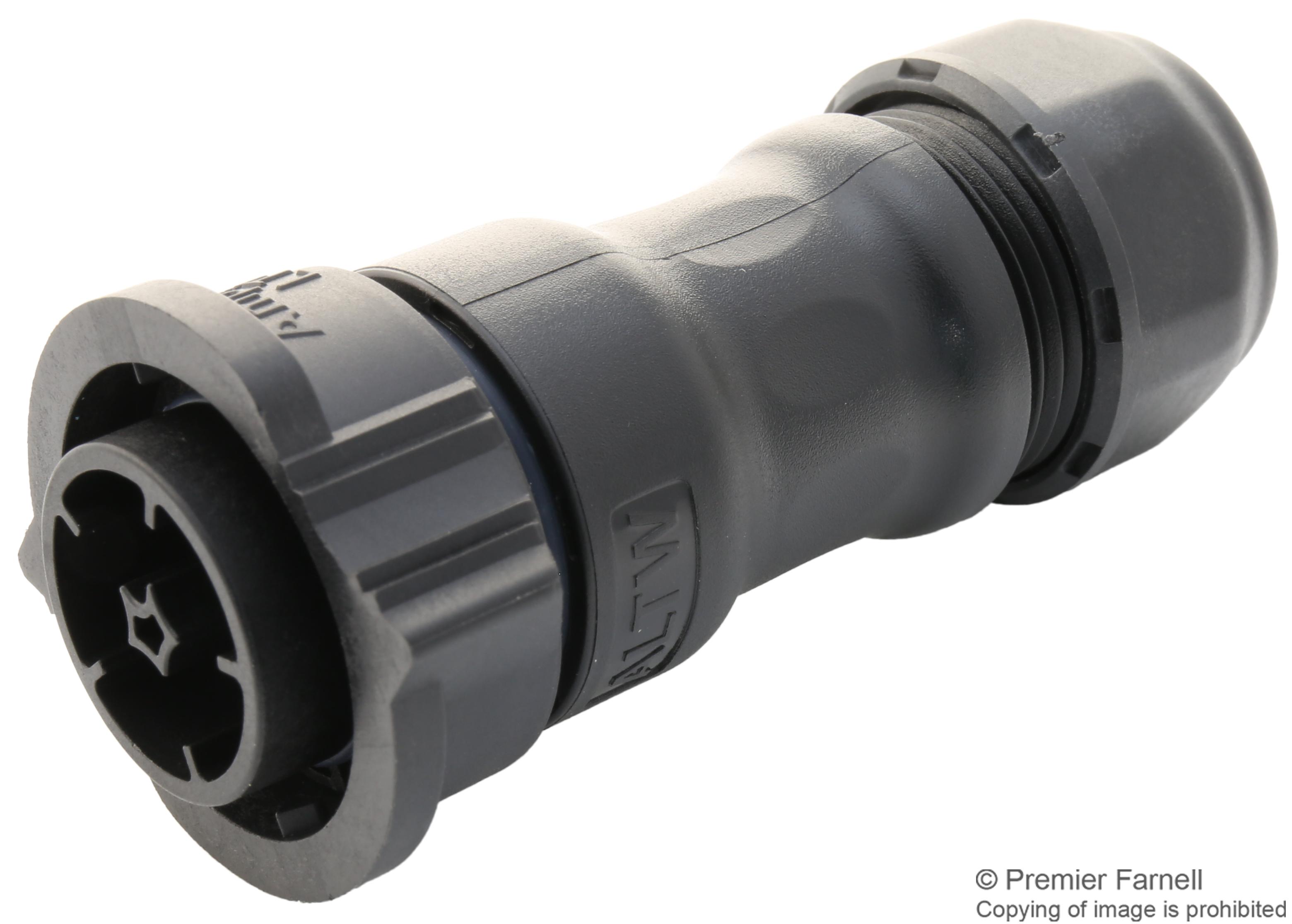

AMPHENOL LTW DC05BFMAQL8LPP Seal Nut
This waterproof seal nut assembly is designed for reliable electrical connections in demanding environments. Made with nylon+GF housing, copper alloy pins, and silicone O-rings, it offers UL 94V-0 flammability rating and RoHS compliance. It supports wire ranges from 22-20 AWG up to 14 AWG, with a maximum wire insulation diameter of 4.3mm. The seal nut withstands 1,600 Vac dielectric voltage and is rated IP68 for waterproofing, ensuring durability over 1000 cycles and a temperature range of -40°C to 105°C, making it ideal for industrial applications.
AMPHENOL LTW DC05BFMAQL8LPP Seal Nut Specifications:
- Connector Material: Nylon+GF, Black
- Pin Material: Copper Alloy, Gold Plated
- Seal & O-Ring Material: Silicone, Gray
- UL Flammability Rating: UL 94V-0
- RoHS Compliant
- Contact Resistance: 10m Max
- Insulation Resistance: 100MΩ Min
- Dielectric Withstand Voltage: 1,600 Vac
- Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Range: 22-20 AWG up to 14 AWG (20A)
- Wire Insulation Outer Diameter: Max 1.9mm (SA), Max 4.3mm (20A)
- Torque Force for Clamp Ring/Seal Nut: 6~8 kgf-cm
- Waterproof Rating: IP68 (Mated, 24 hours)
- Operating Temperature Range: -40°C to 105°C
- Salt Spray Resistance: 1000 Hours
- Safety Compliance: UL 1977
Buy the Buy Amphenol Connectors Part Number DC05BFMAQL8LPP Online
Purchase the Amphenol waterproof seal nut online now to guarantee durable, reliable electrical connections in harsh environments. Designed with high-quality nylon+GF housing, gold-plated copper pins, and silicone O-rings, it ensures excellent insulation, safety, and waterproofing. Supports wire sizes from 22 to 14 AWG, with a dielectric voltage of 1,600 Vac and IP68 waterproof rating, suitable for demanding industrial applications. Easy to install, tested for 1000 cycles, and compliant with UL and RoHS standards. Upgrade your equipment today for dependable performance.
Order your Amphenol DC05BFMAQL8LPP waterproof seal nut today and ensure reliable, water-proof electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL LTW DC05BFMAQL8LPP?
You can click on the BUY or RFQ button to purchase DC05BFMAQL8LPP from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part DC05BFMAQL8LPP?
You can download the DC05BFMAQL8LPP datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of DC05BFMAQL8LPP?
AMPHENOL LTW
