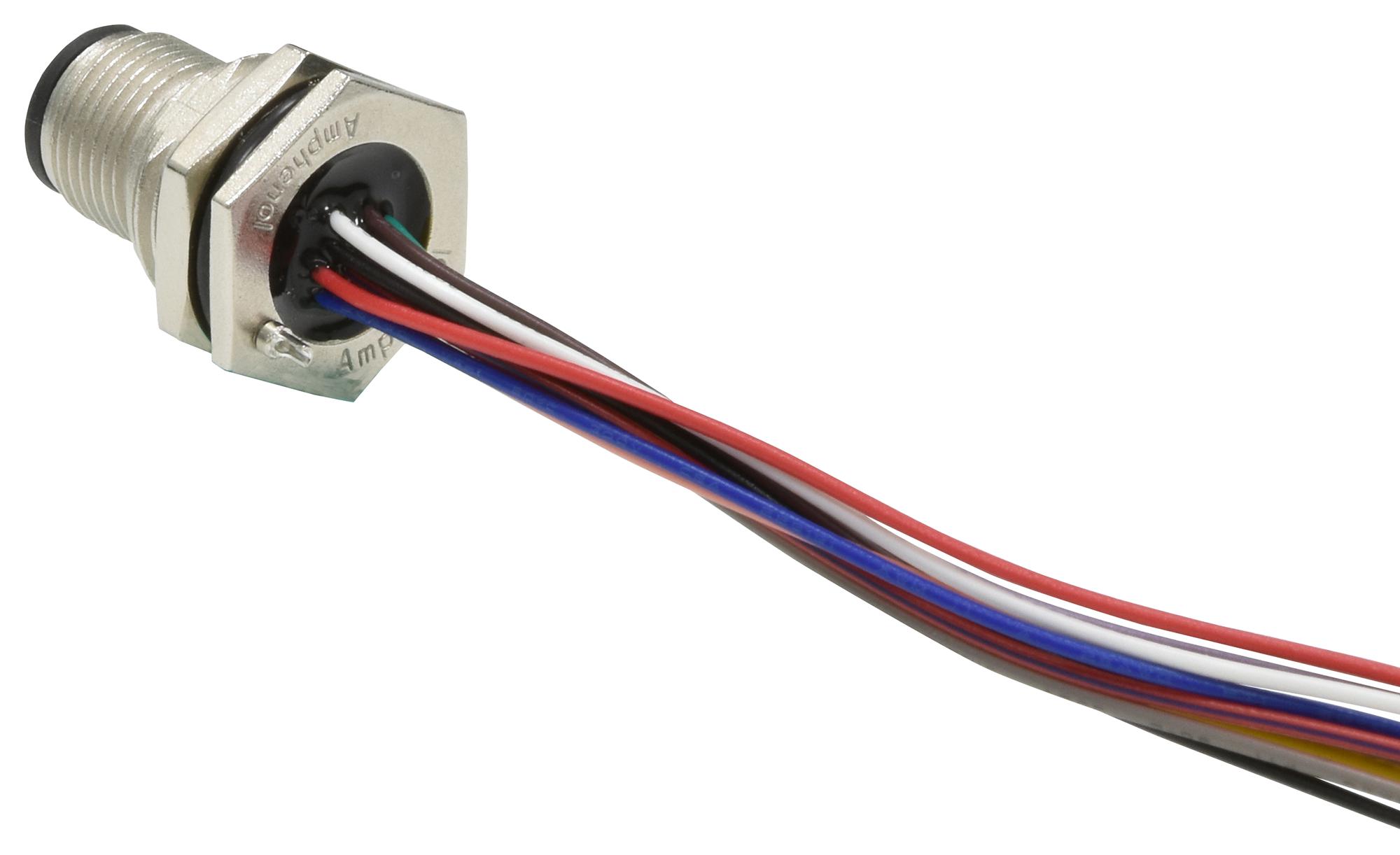

AMPHENOL LTW MSAS10PMMSSF8B30 Shielded Waterproof Connector
The shielded connector features a waterproof rating of IP68/IP69K, with male pins made of copper alloy, gold-plated for corrosion resistance, suitable for high-reliability electrical connections. It includes a zinc alloy shield and nickel plating, along with a Viton panel O-ring for sealing. The connector is designed to handle a rated voltage of 250V AC/DC and rated current of up to 4A, with operating temperatures between -25°C to 85°C. It supports panel thickness up to 4.5mm and wire harness lengths from 150mm to 1500mm, ensuring durability in harsh environments.
AMPHENOL LTW MSAS10PMMSSF8B30 Shielded Waterproof Connector Specifications:
- Waterproof rating: IP68/IP69K
- Connector Material: NylontG, Black
- Pin Material: Copper Alloy, Gold Plated
- Shield Material: Zinc Alloy, Nickel Plated
- Panel O-Ring Material: Viton, Black
- Rated Voltage: 250V AC/DC
- Rated Current: 4A
- Operating Temperature: -25°C to 85°C
- Panel Thickness Max: 4.5mm
- Nut Torque: 4-6 Kgf.cm
- Wire Harness Tolerance: 150~300mm, Recommended 300~1000mm, Over 1000mm 440mm
- Connector Type: Male Pin via Front Mount
- Shielded: Yes
- Mounting Type: Front fastening
Buy the Allen Series Shielded Connector: MSAS10PMMSSF8B30
Order the Allen Series shielded waterproof connector MSAS10PMMSSF8B30 online today for your industrial electrical projects. With a robust IP68/IP69K rating, it features gold-plated copper pins for high conductivity, a zinc alloy shield for corrosion resistance, and a Viton O-ring sealing for added protection. Suitable for panel thickness up to 4.5mm and wire lengths from 150mm to 1500mm, this connector provides durability, reliable performance, and easy installation in tough environments. Purchase now for trusted quality and long-lasting service.
Get Allen Series MSAS10PMMSSF8B30 today—built for waterproof durability and reliable electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS10PMMSSF8B30?
You can click on the BUY or RFQ button to purchase MSAS10PMMSSF8B30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS10PMMSSF8B30?
You can download the MSAS10PMMSSF8B30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS10PMMSSF8B30?
AMPHENOL LTW
