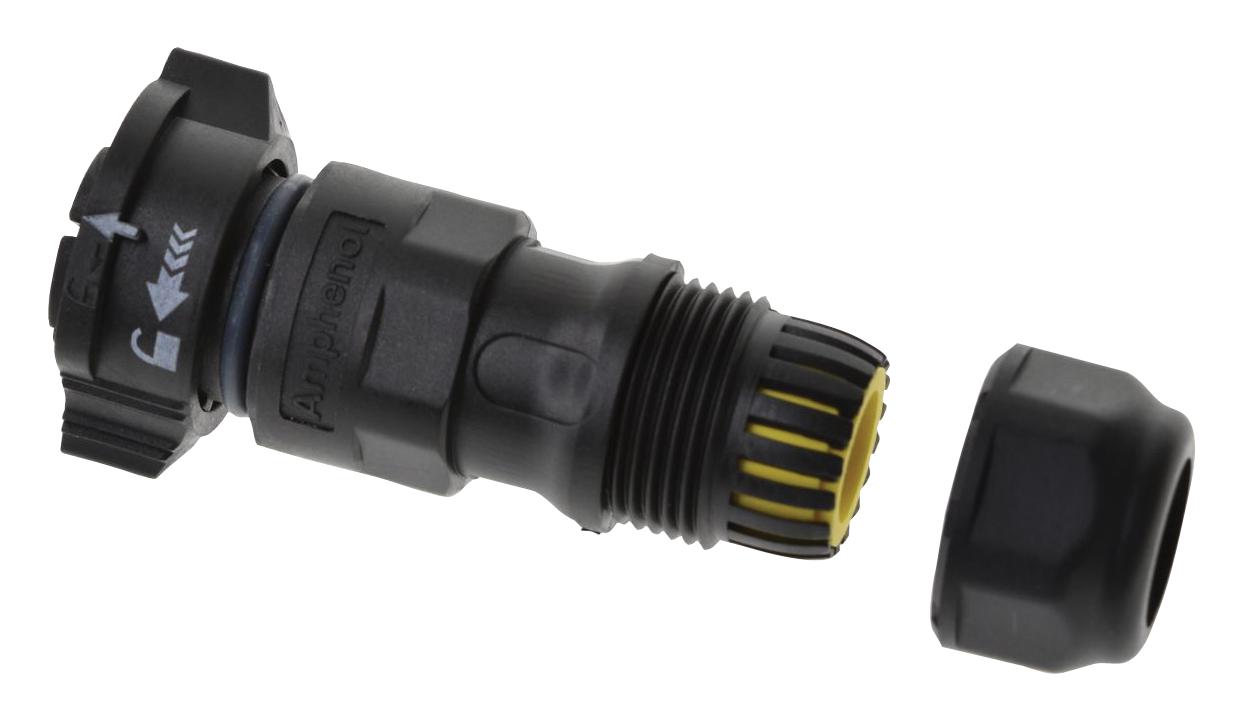

AMPHENOL LTW DC05BFMBQL8APP industrial connector
Amphenol LTW's X-Lok Field Installable Screw-in Terminal connectors are IP68 rated, ensuring waterproof protection for demanding environments. Equipped with a reliable Push-Lock mechanism and guided key, these connectors allow quick, easy, and tool-free installation with audible feedback for secure connections. They support a wide operating temperature range of -40°C to 105°C, withstand salt spray for 500 hours, and are UL 1977 compliant. Suitable for automotive, industrial automation, marine, renewable energy, and security applications, these connectors offer durability, high electrical performance, and environmental resistance for industrial use.
AMPHENOL LTW DC05BFMBQL8APP industrial connector Specifications:
- Material: Thermoplastic connector with Copper Alloy, Gold Plated terminals, Rubber gasket & O-Ring
- Electrical Resistance: 10mΩ max at 10mA, Insulation Resistance: ≥100MΩ, Withstand Voltage: 1,600 Vac
- Mechanical Durability: 1000 Cycles, Tensile Strength: 10 kgf, Wire Range: 14#~12# (2.0mm*2 to 3.3mm*2), Max Wire Insulation OD: 4.0mm
- Clamping Torque: 6~8 kgf-cm for clamp ring, 8~15 kgf-cm for seal nut, 4~5 kgf-cm for screw, Waterproof Rating: IP68 for mated connectors
- Temperature Range: -40°C to 105°C, Salt Spray Resistance: 500 hours, Safety Compliance: UL 1977
Buy the Amphenol LTW DC05BFMBQL8APP – Reliable Waterproof Industrial Connectors for Harsh Environments
Secure your industrial connections with Amphenol LTW's IP68 rated waterproof screw-in terminal connectors. Featuring quick tool-free installation, a robust Push-Lock mechanism, and an audible feedback system, these connectors are designed to perform reliably under harsh conditions. They support a wide temperature range, resist salt spray for 500 hours, and meet UL 1977 standards. Ideal for automotive, marine, automation, LED lighting, renewable energy, and security systems, ensuring high performance and durability for critical applications.
Buy Amphenol LTW DC05BFMBQL8APP waterproof screw-in terminal connectors now and experience unmatched reliability and performance in industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL LTW DC05BFMBQL8APP?
You can click on the BUY or RFQ button to purchase DC05BFMBQL8APP from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part DC05BFMBQL8APP?
You can download the DC05BFMBQL8APP datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of DC05BFMBQL8APP?
AMPHENOL LTW
