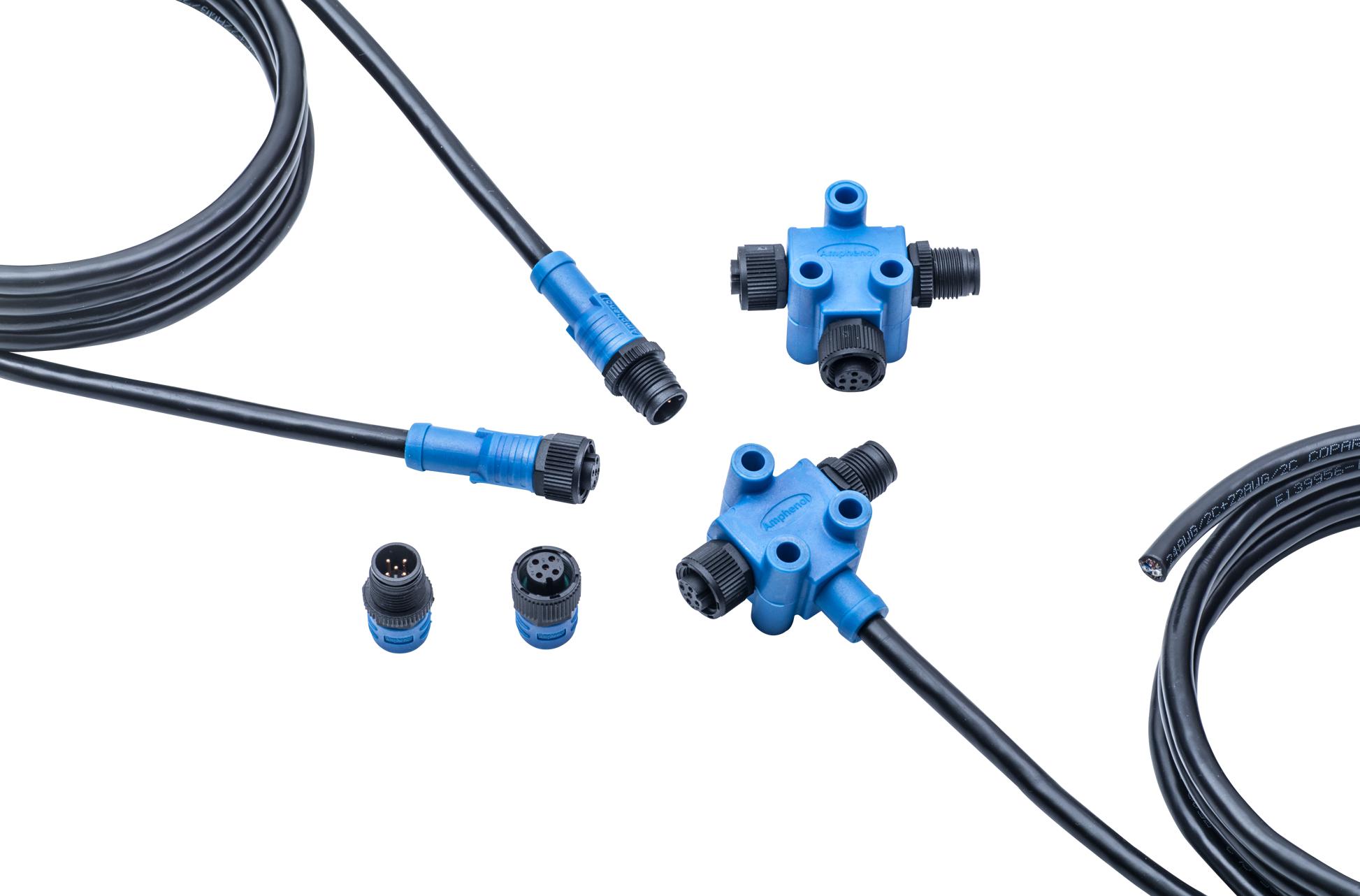

AMPHENOL LTW HPCB001 Marine NMEA 2000 Connector
The Amphenol LTW NMEA 2000 network system includes high-reliability connectors, cable assemblies, and accessories designed for marine electronic data sharing. It enables robust connections among marine devices such as radar, sonar, autopilot, and lighting systems, supporting NMEA 2000 protocols. Manufactured with durable thermoplastic housings, gold-plated copper contacts, and waterproof ratings up to P68, the system ensures reliable performance in harsh marine environments. Suitable for both basic and professional networking configurations, this system enhances connectivity and data sharing on ships and boats.
AMPHENOL LTW HPCB001 Marine NMEA 2000 Connector Specifications:
- Number of Contacts: 5 Pin
- Housing Material: Thermoplastic, Black
- Receptacle Temperature Range: -40 ~ 85°C
- Overmold with Cable: -20 ~ 80°C
- Field Installable Temperature: -40 ~ 105°C
- Contact Material: Copper Alloy, Gold Plated
- Current Rating: 4A
- Voltage Rating: 250 VAC/VDC
- Nut Material: Zinc Alloy, Nickel Plated
- Housing Nut Material: Thermoplastic, Black
- Waterproof Rating: P68 (1m/24 hours)
- Cable: NMEA2000 approved, CL2
- Flammability: UL94V-0
Buy the Amphenol Series NMEA 2000 Connector: HPCB001
Purchase the Amphenol Series NMEA 2000 Connector HPCB001 online to ensure durable, waterproof, and high-performance connectivity for your marine electronic devices. This connector is built with high-quality materials, including thermoplastic housings and gold-plated contacts, capable of withstanding harsh marine environments with waterproof ratings up to P68. It is suitable for various applications such as radar, sonar, autopilot, and lighting systems, providing reliable data sharing on boats and ships. Convenient online ordering makes it easy to upgrade your marine communication systems today.
Order your Amphenol Series NMEA 2000 Connector HPCB001 today and enhance your marine network with reliable waterproof connectivity.
Frequently Asked Questions
Where can I buy AMPHENOL LTW HPCB001?
You can click on the BUY or RFQ button to purchase HPCB001 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part HPCB001?
You can download the HPCB001 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of HPCB001?
AMPHENOL LTW
