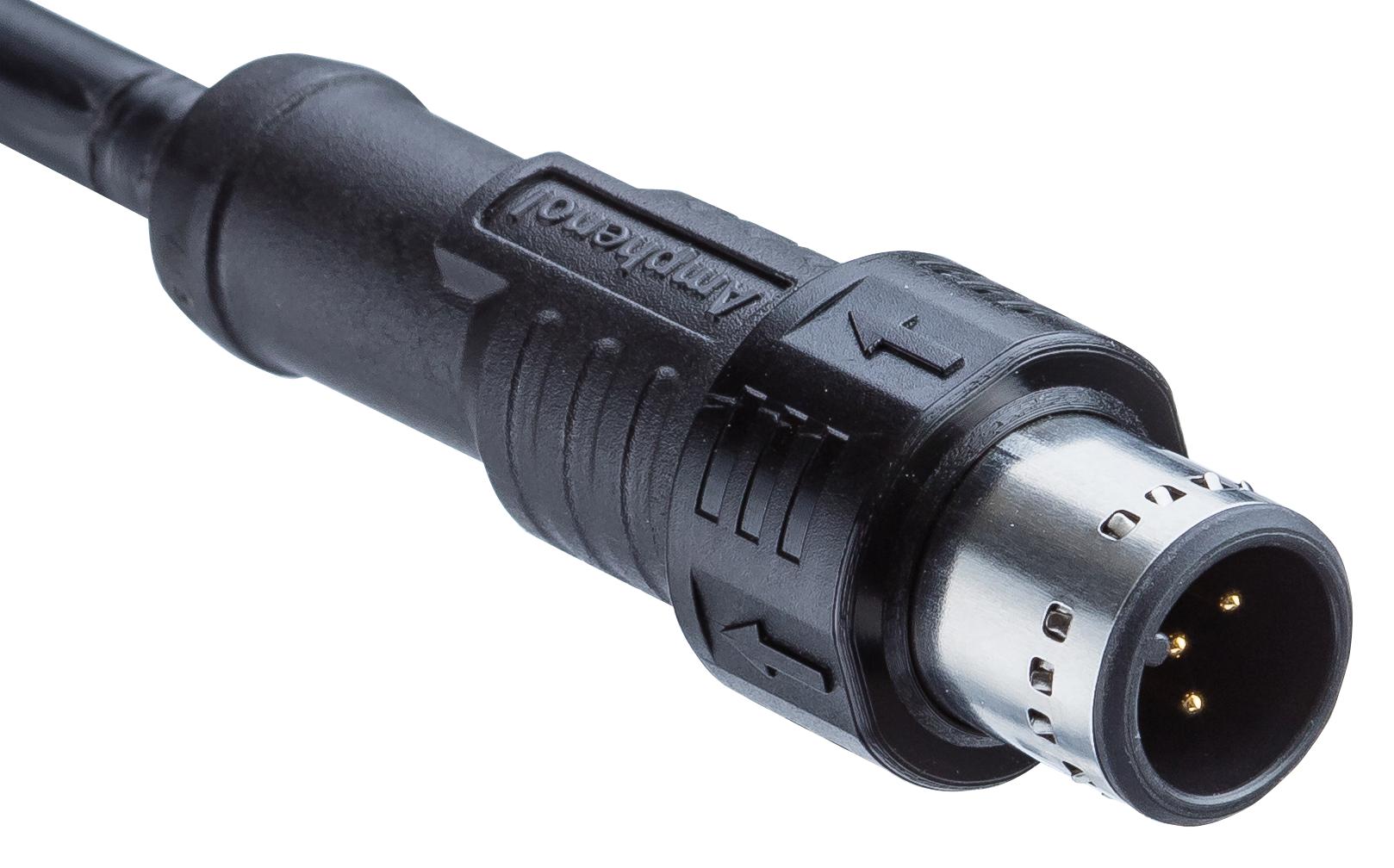

AMPHENOL LTW M12A08BMMMPL8D01 M12 Push Pull Cable Connector
The Amphenol LTW M12A-08BMMM-PL8D01 is a high-performance M12 circular connector engineered for demanding industrial applications. Its robust construction, featuring a thermoplastic housing, copper alloy pins with gold plating, and a secure push-pull locking mechanism, ensures reliable connectivity. The connector's IP68 water resistance makes it suitable for harsh environments, while its wide operating temperature range (-20°C to +85°C) accommodates diverse application needs. Common uses include industrial automation, process control, and power transmission where a compact, reliable, and environmentally sealed connector is required. Available with various pin configurations (4, 5, 6, 8, 10, 12, 17 pins) and cable lengths, the M12A series provides flexibility for diverse system designs.
AMPHENOL LTW M12A08BMMMPL8D01 M12 Push Pull Cable Connector Specifications:
- Material Specifications Housing: Thermoplastic, UL 94V-0, Black
- Material Specifications Male Pin: Copper Alloy, Gold Plated
- Material Specifications Shell & Latch & Spring: Metal
- Material Specifications Outer Mold: Thermoplastic, Black
- Contact Resistance: 10mΩ (Max.)
- Insulation Resistance: 100 MΩ (Min.)
- Voltage Proof: 2~4 Pin: 1.5KV, 5 Pin: 1.0KV, 6~8 Pin: 0.65KV, 9~17 Pin: 0.65KV
- Rated Voltage: 2~4 Pin: 250V D.C. or A.C., 5 Pin: 60V D.C. or A.C., 6~17 Pin: 30V D.C. or A.C.
- Rated Current: 2~5 Pin: 4.0A, 6~8 Pin: 2.0A, 9~17 Pin: 1.5A
- Durability: 500 Cycles
- Waterproof Rate: IP 68
- Temperature Range: -20~+80°C (PVC Cable), -20~+85°C (PUR Cable)
- Cable Jacket A: PVC UL2517 Cable, Yellow
- Cable Jacket B: PUR UL20549 Cable, Black
- Cable OD: 4.8mm to 7.0mm
- Cable Length: 03:3P in XX:L=0~99Meters, 04:4Pin: 01:L=1Meters, 05:5Pin: 02:L=2Meters, 06:6Pin: , 08:8Pin: 99:L=99Meters, 10:10Pin, 12:12Pin
Buy the M12A-08BMMM-PL8D01 AMPHENOL LTW M12 Push Pull Cable Connector | myMectronic
Purchase the M12A-08BMMM-PL8D01 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL LTW M12A08BMMMPL8D01?
You can click on the BUY or RFQ button to purchase M12A08BMMMPL8D01 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part M12A08BMMMPL8D01?
You can download the M12A08BMMMPL8D01 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of M12A08BMMMPL8D01?
AMPHENOL LTW
