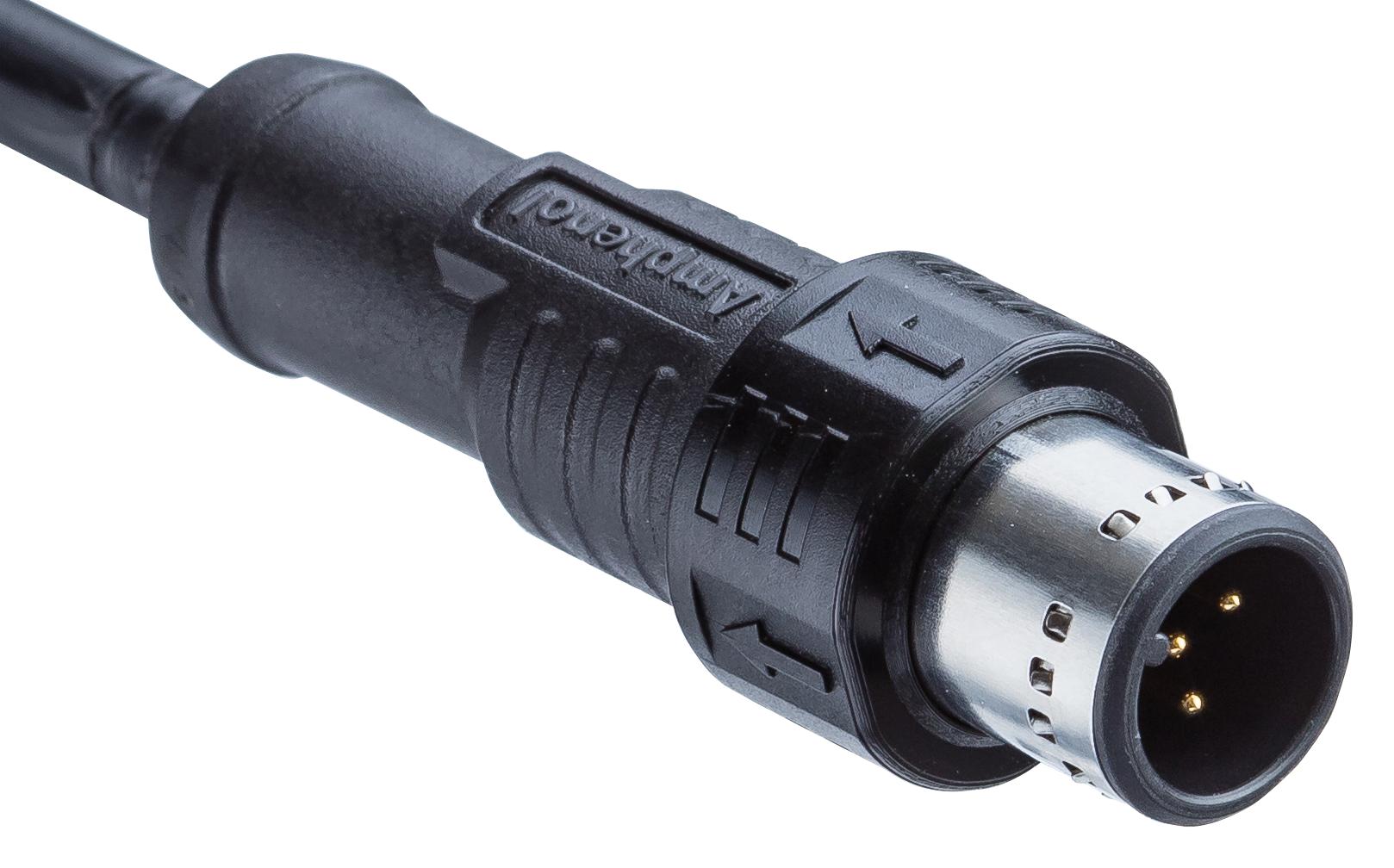

AMPHENOL LTW M12D04BMMMPL8D10 M12 Push Pull Cable Connector
The AMPHENOL LTW M12D-04BMMM-PL8D10 is a high-performance M12 push-pull cable connector ideal for industrial automation, power transmission, and sensor applications. Its robust design provides a secure and reliable connection, while the IP68 rating ensures protection against dust and water ingress. The connector supports a rated voltage of 250V D.C. or A.C. and a rated current of 4.0A, making it suitable for a wide range of applications. Available with PVC or PUR cable jackets.
AMPHENOL LTW M12D04BMMMPL8D10 M12 Push Pull Cable Connector Specifications:
- Housing Material: Thermoplastic, UL 94V-0
- Male Pin Material: Copper Alloy, Gold Plated
- Shell Material: Metal
- Outer Mold Material: Thermoplastic
- Contact Resistance: 10mΩ (Max.)
- Insulation Resistance: 100 MΩ (Min.)
- Voltage Proof: 2.5 KV
- Rated Voltage: 250V D.C. or A.C.
- Rated Current: 4.0 A
- Durability: 500 Cycles
- Waterproof Rating: IP 68
- Temperature Range (PVC Cable): -20~+80°C
- Temperature Range (PUR Cable): -20~+85°C
- Pin Assignment: 4 Pin (Cat5e)
- Cable Jacket Options: PVC (Yellow), PUR (Black)
- Cable OD (PVC): 4.8mm
- Cable OD (PUR): 4.0mm
Buy the M12D-04BMMM-PL8D10 AMPHENOL LTW M12 Push Pull Cable Connector | myMectronic
Purchase the AMPHENOL LTW M12D-04BMMM-PL8D10 securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL LTW M12D04BMMMPL8D10?
You can click on the BUY or RFQ button to purchase M12D04BMMMPL8D10 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part M12D04BMMMPL8D10?
You can download the M12D04BMMMPL8D10 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of M12D04BMMMPL8D10?
AMPHENOL LTW
