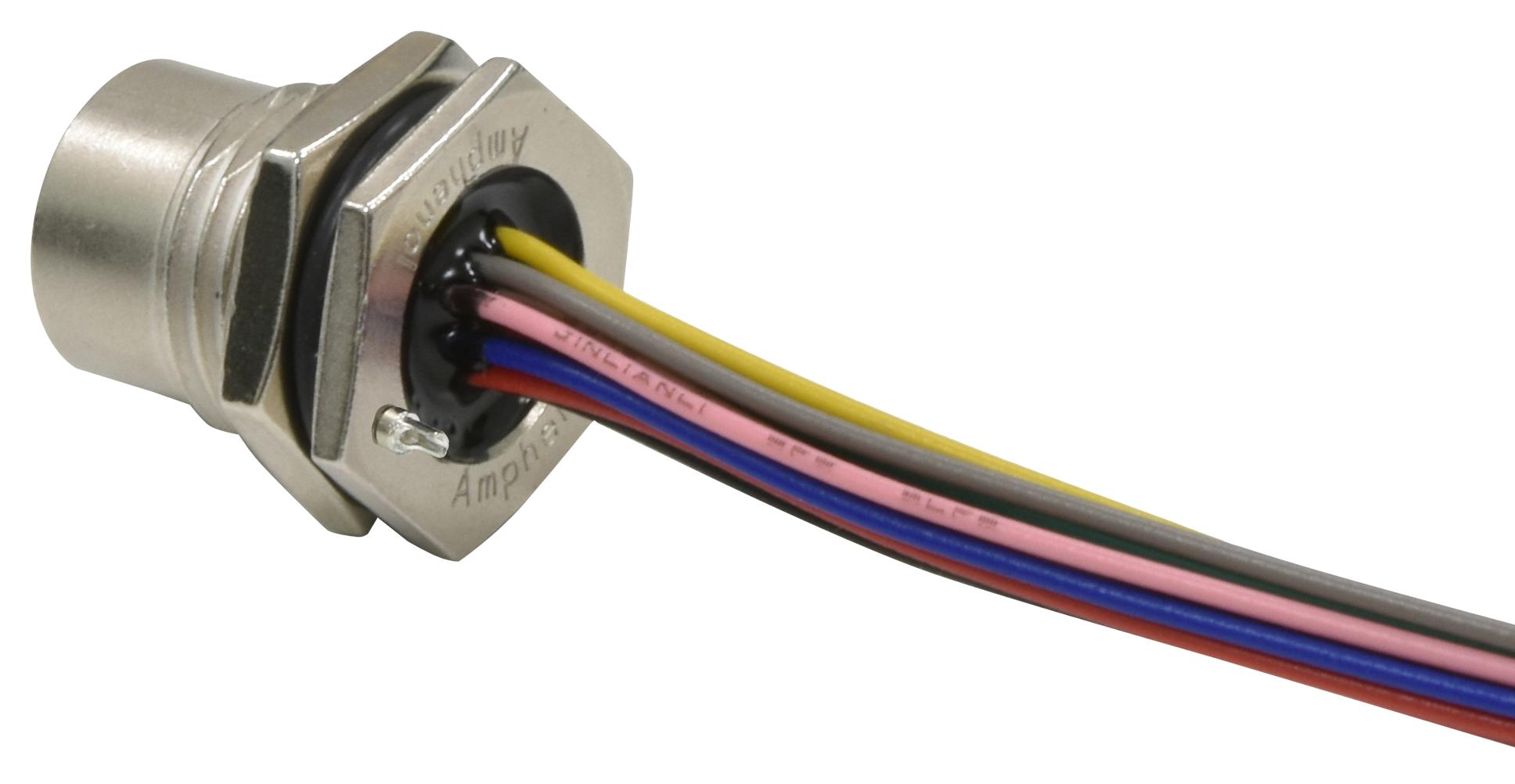

AMPHENOL LTW MSAS06PFFSSF8C30 Waterproof Connector
This shielded waterproof connector features a nylon+GF black housing, gold-plated copper female pins, zinc-alloy nickel-plated shielding, and Viton O-rings for IP68/IP69K ratings. Suitable for wire harness applications, it supports rated voltages up to 250V, currents up to 4A, and operating temperatures from -25°C to 85°C. The connector accommodates panel thicknesses up to 4.5mm, with a nut torque of 4-6 Kgf.cm, making it ideal for demanding industrial environments requiring reliable waterproof connections with wire harness compatibility.
AMPHENOL LTW MSAS06PFFSSF8C30 Waterproof Connector Specifications:
- Housing Material: Nylon+GF, Black
- Shield Material: Zinc Alloy, Nickel Plated
- Female Pin Material: Copper Alloy, Gold Plated
- Panel O-Ring Material: Viton, Black
- Housing O-Ring Material: Viton, Green
- Waterproof Rate: IP68, IP69K
- Rated Voltage: 250V AC/DC
- Rated Current: 4A (3-5Pin), 2A (6-8Pin), 1.5A (10-12Pin)
- Operating Temperature: -25°C to 85°C
- Maximum Panel Thickness: 4.5mm
- Nut Torque: 4-6 Kgf.cm
- Wire Harness Tolerance: 150-300mm, recommended 300-1000mm, panel cut tolerance over 1000mm +40mm
Buy the Buy Amphenol Waterproof Connector Part Number MSAS06PFFSSF8C30 Online
Discover the convenience of purchasing the waterproof connector MSAS06PFFSSF8C30 online. This durable, IP68/IP69K rated connector with gold-plated pins and zinc-alloy shielding offers excellent waterproof performance, supporting voltages up to 250V and currents of 4A. Designed for demanding industrial environments, it complies with rigorous standards, provides easy installation, and guarantees reliable electrical connections even in harsh conditions. Order now to enhance your projects with high-quality waterproof solutions, ensuring dependable performance and long-term durability for your wire harness systems.
Order your Amphenol waterproof connector MSAS06PFFSSF8C30 today and ensure reliable waterproof connections with superior wire harness compatibility.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS06PFFSSF8C30?
You can click on the BUY or RFQ button to purchase MSAS06PFFSSF8C30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS06PFFSSF8C30?
You can download the MSAS06PFFSSF8C30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS06PFFSSF8C30?
AMPHENOL LTW
