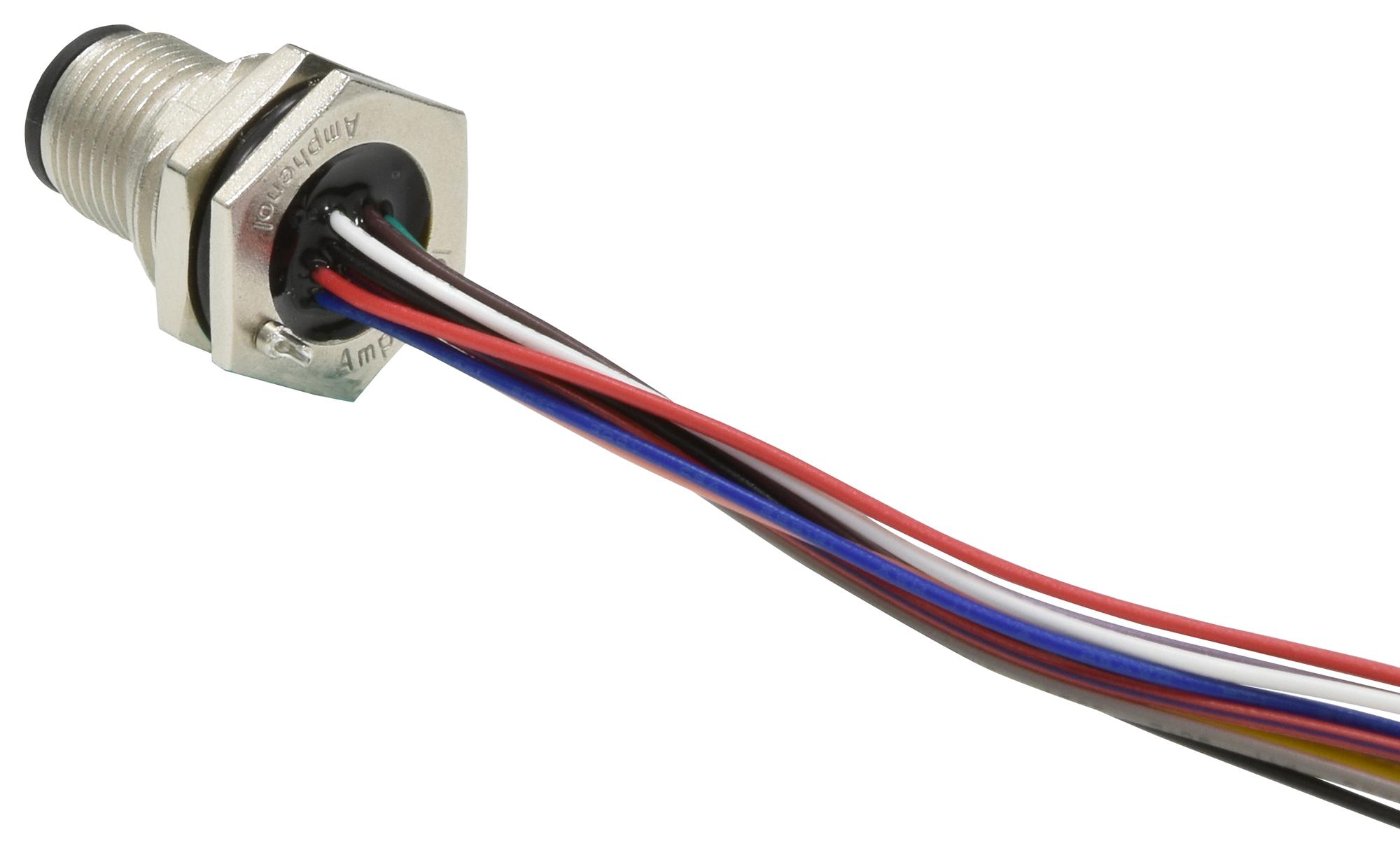

AMPHENOL LTW MSAS06PMMSSF8B30 Industrial Waterproof Connector
This shielded connector features a waterproof rate of IP68 and IP69K, constructed with high-quality zinc alloy and copper alloy components. Designed for secure electrical connections, it supports rated voltages up to 250V and currents between 1.5A to 4A across 4 to 12 pins. The connector accommodates panel thicknesses up to 4.5mm and is rated for operating temperatures from -25°C to 85°C. Suitable for industrial automation, electrical assemblies, and rugged environments, it includes a UL1061 wire harness and Viton panel O-ring for enhanced durability and sealing.
AMPHENOL LTW MSAS06PMMSSF8B30 Industrial Waterproof Connector Specifications:
- Waterproof Rating: IP68, IP69K
- Connector Material: Zinc Alloy, Nickel Plated
- Shield: Zinc Alloy, Nickel Plated
- Male Pin: Copper Alloy, Gold Plated
- Rated Voltage: 250V
- Rated Current: 1.5A to 4A depending on pin count
- Pin Counts Supported: 4 to 12 pins
- Operating Temperature: -25°C to 85°C
- Panel Thickness Max: 4.5mm
- Wire Harness Tolerance: 150~300mm (standard), 420~440mm (recommended)
- Wire Harness Length: 150 to 1500mm
- Seal: Viton Panel O-Ring
- Screw Nut Material: Zinc Alloy, Nickel Plated
- Nut Torque: 4-6 Kgf.cm
- Rated Voltage per pin: 60V DC/AC, 30V DC/AC for 6-12 pin versions
- Dimensions: Variable per model, typical dimensions based on pin count and wire length
Buy the Buy Connector Industrial Waterproof Part Number MSAS06PMMSSF8B30 Online
Purchase this industrial waterproof connector online today and ensure durable, reliable electrical connections in harsh environments. Designed for ease of installation with secure sealing capabilities, it supports voltages up to 250V and currents ranging from 1.5A to 4A depending on the pin configuration. Made with zinc alloy and copper alloy components, it features a Viton O-ring for superior sealing against water and dust, ensuring optimal performance in industrial automation, outdoor applications, and equipment requiring rugged connectors. Fast, reliable shipping guaranteed.
Buy Connector Industrial Waterproof Part Number MSAS06PMMSSF8B30 now and experience unmatched reliability and performance for rugged environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS06PMMSSF8B30?
You can click on the BUY or RFQ button to purchase MSAS06PMMSSF8B30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS06PMMSSF8B30?
You can download the MSAS06PMMSSF8B30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS06PMMSSF8B30?
AMPHENOL LTW
