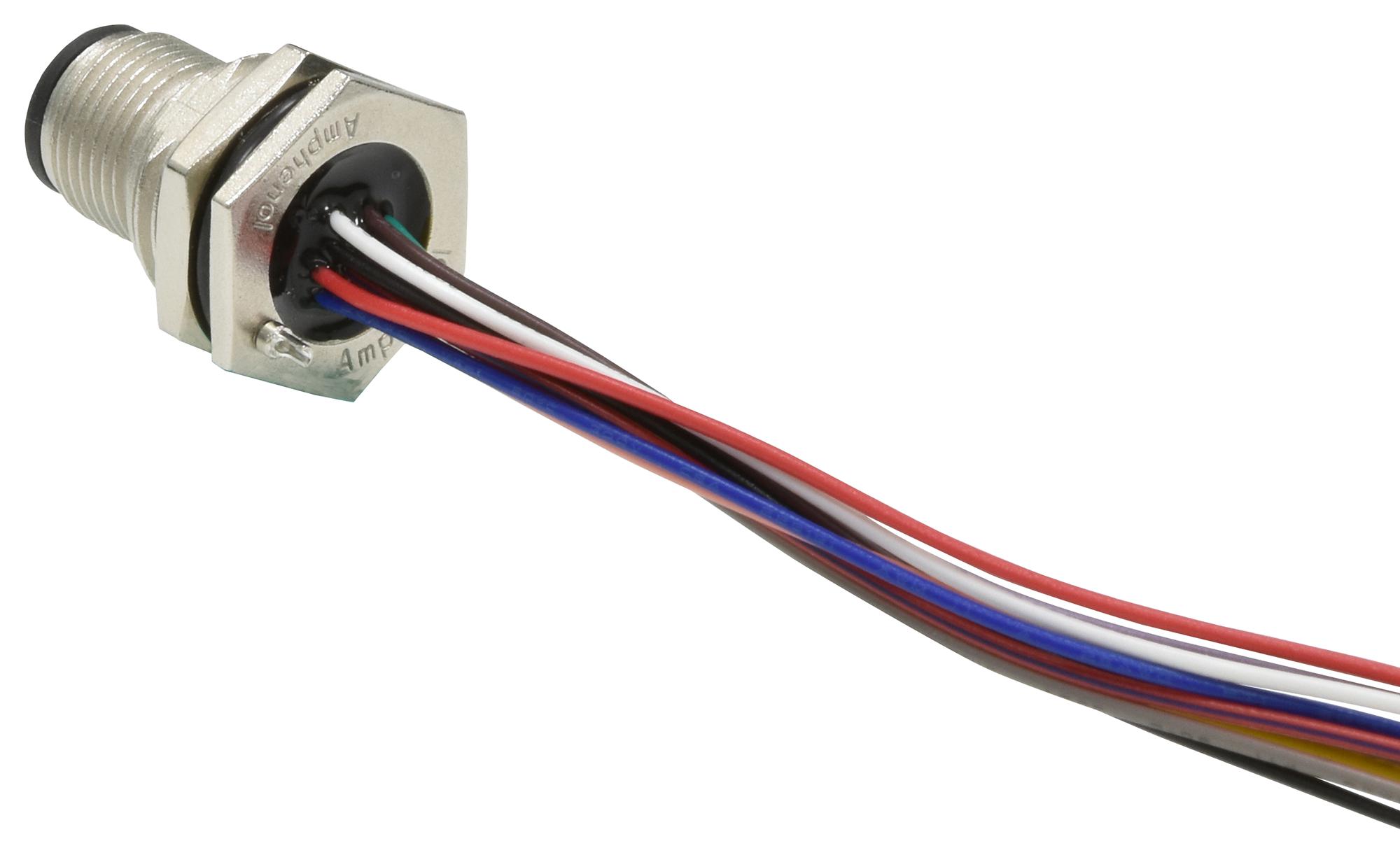

AMPHENOL LTW MSDS04PMMCSF8B50 Industrial Connector
This is a shielded 4-pin connector assembly designed for industrial wiring and panel mounting applications. It features a nylon+GF housing, gold-plated copper alloy pins, and zinc alloy shield with nickel plating for durability and corrosion resistance. The connector supports rated voltage of 250V AC/DC and a current of 4A, suitable for operating temperatures from -25°C to 85°C. It accommodates panel thicknesses up to 4.5mm and is rated for waterproof applications with an IP68 rating. The assembly includes a black Viton O-ring, screw nut, and wire harness options ranging from 150mm to 1500mm in length, ensuring reliable electrical connections in harsh environments.
AMPHENOL LTW MSDS04PMMCSF8B50 Industrial Connector Specifications:
- Rated Voltage: 250V AC/DC
- Rated Current: 4A
- Operating Temperature: -25°C to 85°C
- Panel Thickness: Max 4.5mm
- Housing Material: Nylon+GF (Glass Filled)
- Pin Material: Copper Alloy, Gold Plated
- Shield Material: Zinc Alloy, Nickel Plated
- Screw Nut: Zinc Alloy, Nickel Plated
- O-Ring: Viton, Black
- Wire Harness Length: 150mm to 1500mm
- Waterproof Rate: IP68
- Recommended Nut Torque: 4-6 Kgf.cm
Buy the Buy Industrial Connector Part Number MSDS04PMMCSF8B50 Online
Discover the high-quality waterproof industrial connector designed for demanding environments. This connector features a durable nylon+GF housing, gold-plated copper alloy pins, and a zinc alloy shield with nickel plating for maximum durability. Rated for 250V AC/DC and 4A, it operates efficiently from -25°C to 85°C. With various wire harness lengths up to 1500mm and a waterproof IP68 rating, this connector ensures secure and corrosion-resistant connections in harsh conditions. Perfect for automation, industrial equipment, and control systems.
Order your industrial connector MSDS04PMMCSF8B50 today and ensure reliable waterproof electrical connections for your panel projects.
