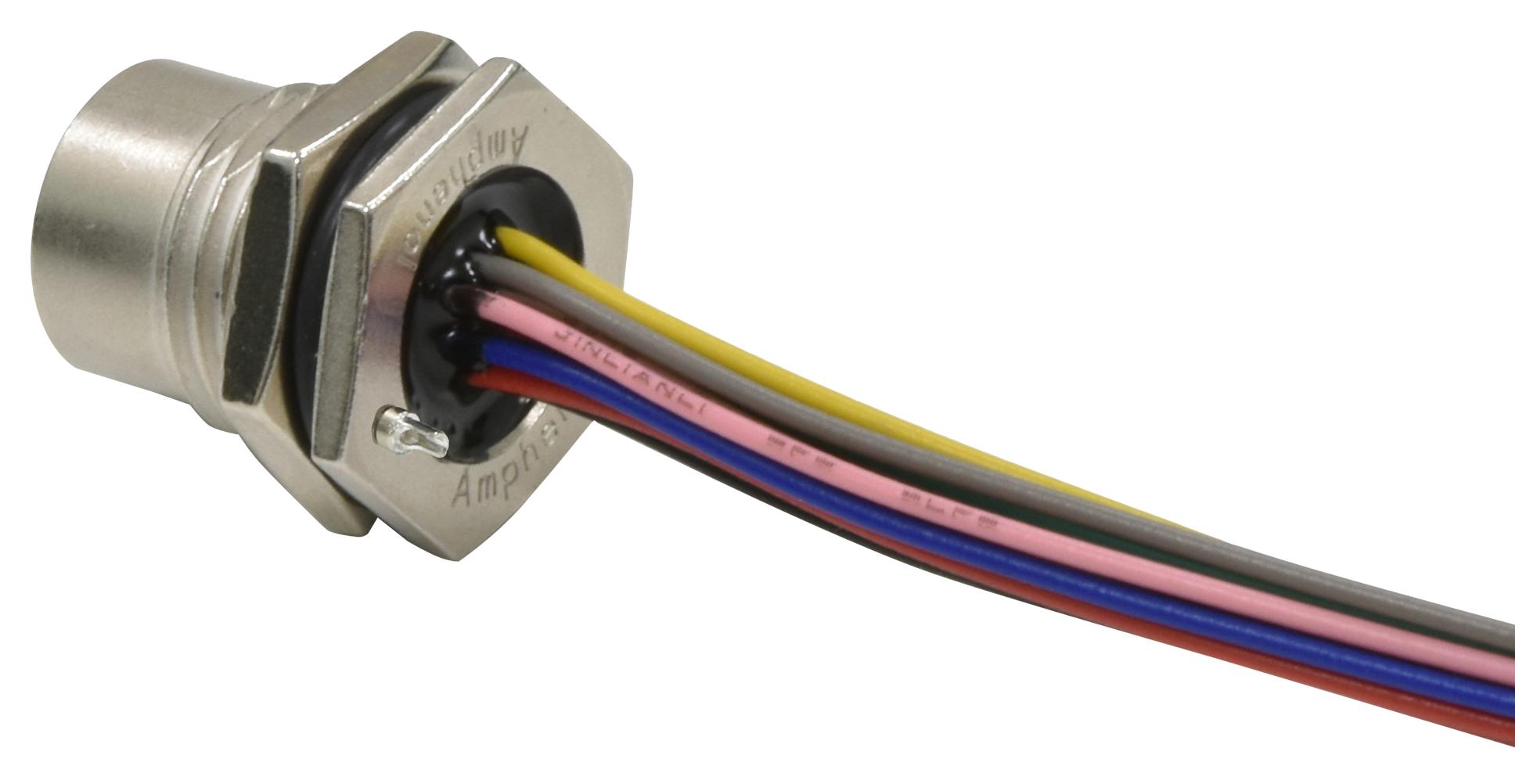

AMPHENOL LTW MSAS10PFFSSF8C30 Waterproof Circular Connector
This product is a waterproof, shielded circular connector designed for industrial applications, featuring a nylon+GF housing, gold-plated copper pins, and zinc alloy shield. It offers IP69K waterproof rating, suitable for harsh environments, and supports a voltage of up to 250V AC/DC with current ratings up to 4A. The connector is compatible with wire harnesses ranging from 150mm to 1500mm, and operates reliably from -25°C to 85°C. It is ideal for complex wiring setups requiring high waterproof and durability standards, with a panel thickness limit of 4.5mm and secure screw locking.
AMPHENOL LTW MSAS10PFFSSF8C30 Waterproof Circular Connector Specifications:
- Housing Material: Nylon+GF, Black
- Shield Material: Zinc Alloy, Nickel Plated
- Connector Rating: IP69K waterproof
- Rated Voltage: 250V AC/DC
- Rated Current: 4A for 3-5Pin, 2A for 6-8Pin, 1.5A for 10-12Pin
- Operating Temperature: -25°C to 85°C
- Panel Thickness: Max 4.5mm
- Nut Torque: 4-6 Kgf.cm
- Wire Harness Tolerance: 150-300mm, recommended 301-1000mm, over 1000mm +40mm
- Dimensions: Length varies with wire length, typical wire length 150-1500mm
- Waterproof Rate: IP69K
- Seal Material: Viton, Black and Green
- Secure Locking: Screw Nut and panel O-Rings
Buy the Allen Pan 2019-03-08 – Reliable Waterproof Connectors for Industrial Applications
Discover the reliability of waterproof circular connectors designed for industrial environments. Featuring IP69K rating, durable nylon+GF housing, gold-plated pins, and zinc alloy shield, this connector ensures secure, high-performance connections even in harsh conditions. Supports voltage up to 250V and current up to 4A, with a flexible wire harness ranging from 150mm to 1500mm. Easy to install with a panel thickness limit of 4.5mm, offering long-lasting quality and resistance to moisture, dust, and extreme temperatures. Perfect for complex wiring systems requiring high waterproof standards.
Buy Allen Pan waterproof connectors now and experience unmatched durability and high waterproof performance in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS10PFFSSF8C30?
You can click on the BUY or RFQ button to purchase MSAS10PFFSSF8C30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS10PFFSSF8C30?
You can download the MSAS10PFFSSF8C30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS10PFFSSF8C30?
AMPHENOL LTW
