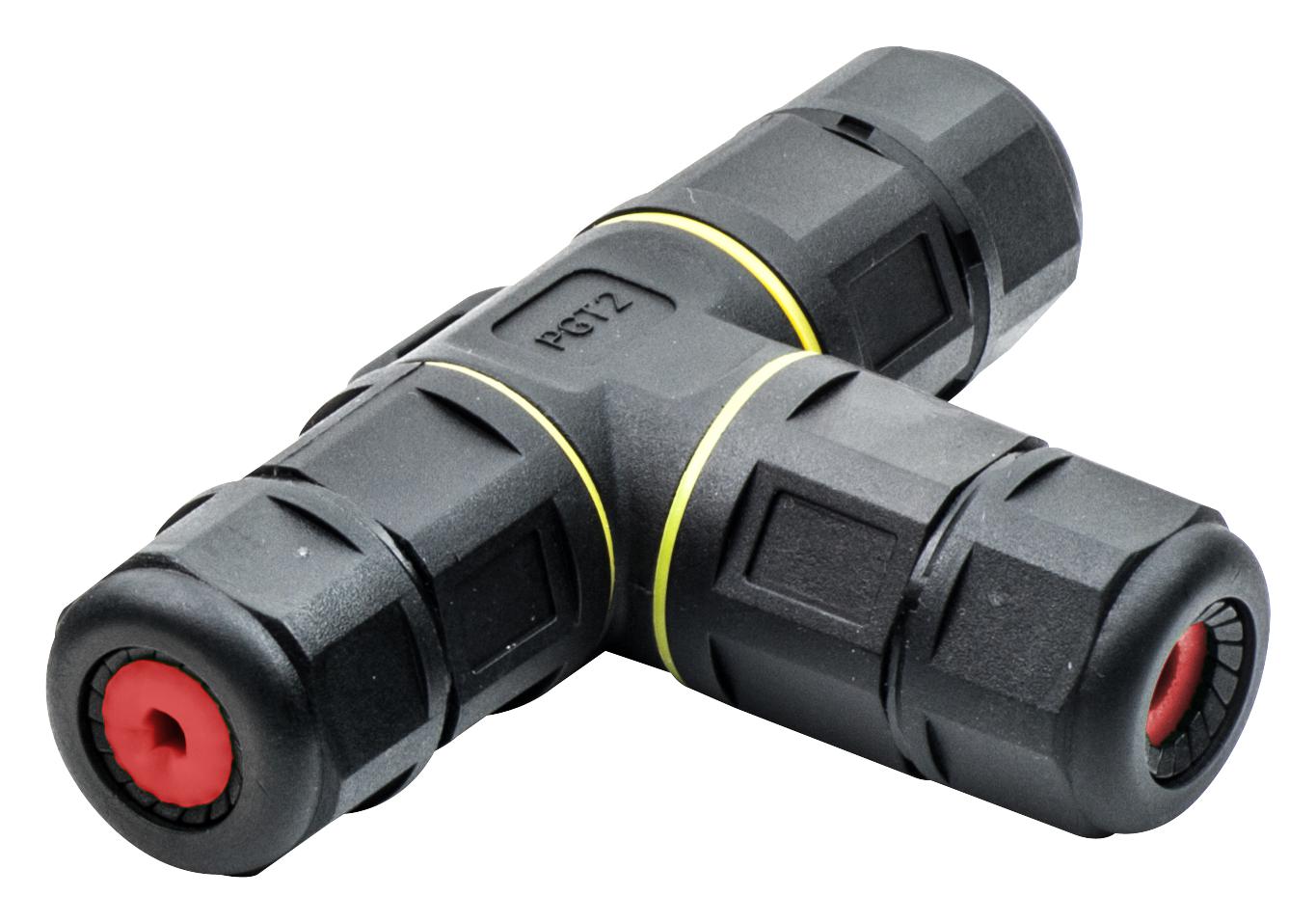

AMPHENOL LTW SCLPGT202RD Waterproof T-branch connector
The Amphenol LTW SC-L-PGT2-02-RD is a durable screw-type T-branch cable connector designed for waterproof electrical installations. Featuring an IP68 rating, it can be submerged up to 50 meters for 24 hours, ensuring reliable protection. Constructed with black PA66+GF housing, the connector supports wire sizes from 18AWG to 14AWG, with a current rating of 20A and a voltage rating of 450VAC. It includes high-quality nickel-plated brass contacts, stainless steel screws, and silicone gaskets and seals for enhanced sealing and UV resistance, suitable for outdoor applications.
AMPHENOL LTW SCLPGT202RD Waterproof T-branch connector Specifications:
- Waterproof rating: IP68 (50m, 24hrs)
- Material: Gland Nut PAG+GF, Black; Gland Body PA66, Black; Contact Brass, Nickel-Plated
- Wire Size: 14~18 AWG (0.75~2.5 mm²)
- Voltage Rating: 450 VAC
- Current Rating: 20A for 2P & 3P, 15A for 4P
- Operating Temperature: -40°C to 105°C
- Cable Outer Diameter: 6.6~12.5mm depending on model
- Seal Material: Silicon, Yellow
- Housing: Black PA66+GF
- Contacts: Nickel-plated Brass
- Screws: Stainless Steel, Nickel-Plated
- Installation: Quick and easy with easy-grip design
- UV Resistance: 720 hours in-house test
Buy the Buy Amphenol SC-L-PGT2-02-RD Part Number SCLPGT202RD Online
Purchase your Amphenol waterproof T-branch connector online today. Engineered with IP68 protection, nickel-plated contacts, and silicone seals, it offers easy installation and durability for outdoor electrical setups. Supporting wire sizes from 18AWG to 14AWG and rated for 20A at 450VAC, this connector ensures safety and reliability in harsh environments. Its UV-resistant materials and quick-connect design make it ideal for outdoor and industrial electrical wiring projects, providing peace of mind and long-lasting performance.
Order your Amphenol Series SCLPGT202RD waterproof connector today and ensure reliable outdoor electrical connections with easy installation and durable design.
Frequently Asked Questions
Where can I buy AMPHENOL LTW SCLPGT202RD?
You can click on the BUY or RFQ button to purchase SCLPGT202RD from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part SCLPGT202RD?
You can download the SCLPGT202RD datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of SCLPGT202RD?
AMPHENOL LTW
