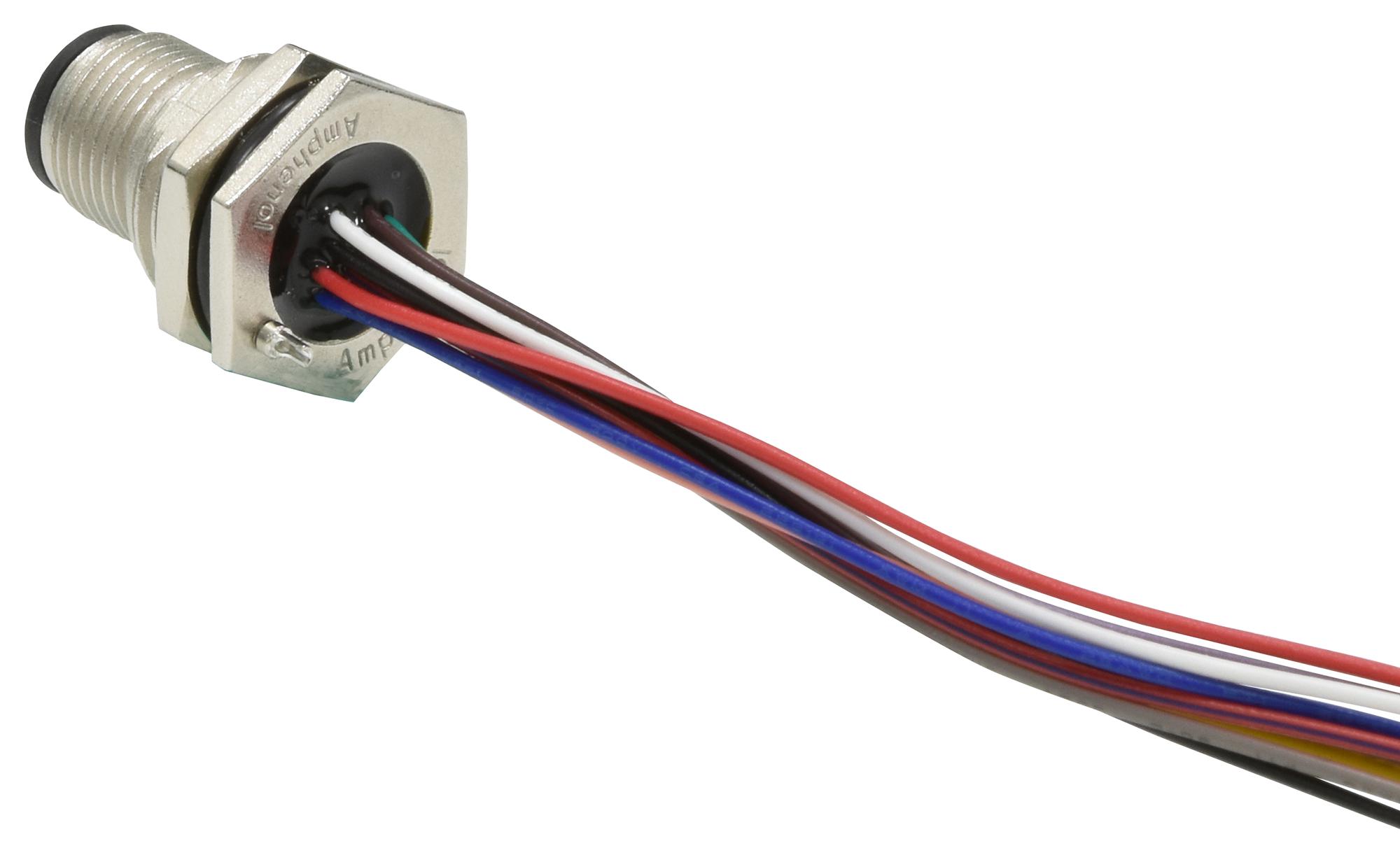

AMPHENOL LTW MSDS04PMMCSF8C50 Industrial Waterproof Connector
The MSDS04PMMCSF8C50 is a durable, waterproof, and shielded industrial connector designed for reliable power and signal transmission in demanding environments. Featuring a nylon+GF housing, zinc alloy shield, and gold-plated copper pins, it supports up to 250V and 4A of current. The connector operates within -25°C to 85°C, with a panel thickness limit of 4.5mm. It includes black Viton O-rings for sealing, ensuring environmental resistance and secure connections in routing and automation projects.
AMPHENOL LTW MSDS04PMMCSF8C50 Industrial Waterproof Connector Specifications:
- Rated Voltage: 250V de. or ac
- Rated Current: 4A
- Operating Temperature: -25°C to 85°C
- Panel Thickness Max: 4.5mm
- Housing Material: Nylon+GF
- Shield Material: Zinc Alloy, Nickel Plated
- Pin Material: Copper Alloy, Gold Plated
- Cable Length Tolerance: 150~300mm, 301~1000mm, up to 440mm
- Connector Type: Male with Guide Pin
- Screw Nut: Zinc Alloy, Nickel Plated
- Seal: Black Viton O-ring
- Wire Harness Compatibility: ULI061
- Mounting: Front Fasten or Rear Mount
Buy the Allen Series MSDS04PMMCSF8C50 Waterproof Shielded Connector
Purchase the Allen Series waterproof industrial connector MSDS04PMMCSF8C50 online today. Designed for durability and environmental resistance, this connector features a nylon+GF housing, zinc alloy shield, and gold-plated copper pins. It supports 250V and 4A with operating temperatures from -25°C to 85°C. Suitable for panel thickness up to 4.5mm, it includes Viton o-rings for sealing and rugged mounting options. Ensure your project’s safety and reliability by ordering this high-quality connector online now.
Order your Allen Series MSDS04PMMCSF8C50 waterproof connector today and ensure reliable, secure connections in harsh industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSDS04PMMCSF8C50?
You can click on the BUY or RFQ button to purchase MSDS04PMMCSF8C50 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSDS04PMMCSF8C50?
You can download the MSDS04PMMCSF8C50 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSDS04PMMCSF8C50?
AMPHENOL LTW
