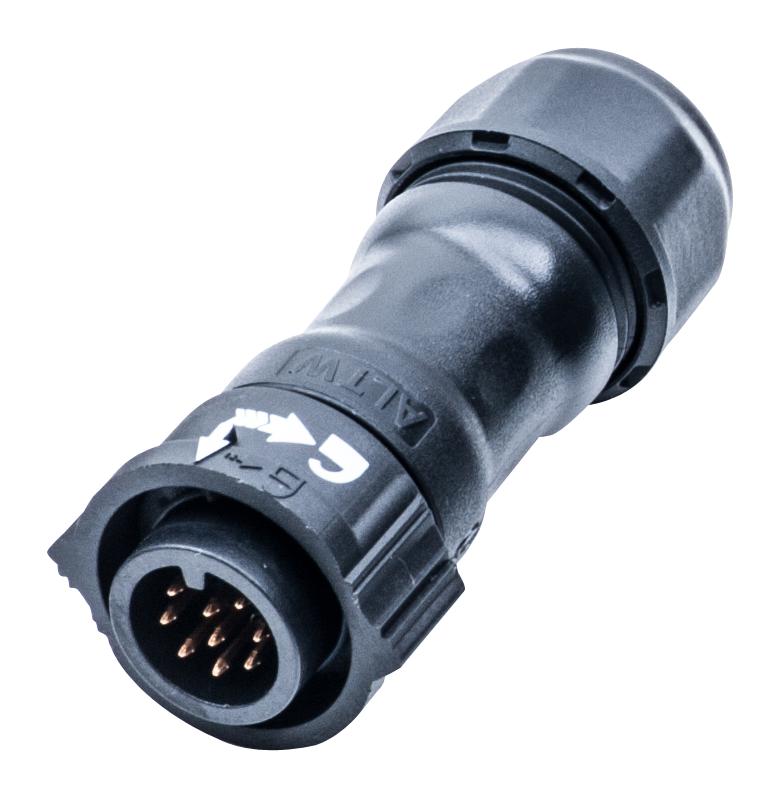

AMPHENOL LTW CD09BFMAQL8MP0 Industrial Connector
This waterproof circular connector features a silicone gray O-Ring, copper alloy pins with gold plating, and a nylon black connector. Designed for industrial environments, it complies with UL 94V-0, RoHS standards, and offers high durability with 1000-cycle mechanical endurance. Suitable for wire sizes from 20AWG to 14AWG with maximum insulation diameters of 2.7mm to 4.3mm, it withstands temperatures from -40°C to 105°C. Ideal for power and data applications, it boasts a waterproof rating of IP68 and UL 1977 safety compliance, making it reliable for demanding industrial uses.
AMPHENOL LTW CD09BFMAQL8MP0 Industrial Connector Specifications:
- Material: Silicone O-Ring, Copper Alloy Pins, Nylon Connector
- Flammability: UL 94V-0
- Insulation Resistance: 100MΩ Min.
- Contact Resistance: 10mΩ Max.
- Dielectric Withstand Voltage: 1,600 Vac.
- Durability: 1000 Cycles
- Wire Range: 20AWG to 14AWG
- Insulation Diameter: Max. 2.7mm to 4.3mm
- Torque for Clamp Ring and Nut: 6-8 kgf-cm
- Waterproof Rating: IP68 (Mated, 24 Hours)
- Temperature Range: -40°C to 105°C
- Salt Spray Resistance: 1000 Hours
- Safety Compliance: UL 1977
Buy the Industrial Connector - Reliable Waterproof Power for Industrial Applications
Order this high-quality waterproof industrial connector online today to ensure reliable power and data transmission in demanding environments. Featuring durable silicone O-Ring, gold-plated copper pins, and UL/IP68 certifications, it provides excellent sealing against water and dust. Suitable for wire sizes from 20AWG to 14AWG, with a temperature range of -40°C to 105°C, and rated for 600V/10A or 300VAC/VDC, this connector guarantees safety, longevity, and excellent electrical performance for industrial automation, machinery, and outdoor applications. Purchase now for quick delivery and dependable performance.
Buy industrial waterproof connector now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW CD09BFMAQL8MP0?
You can click on the BUY or RFQ button to purchase CD09BFMAQL8MP0 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part CD09BFMAQL8MP0?
You can download the CD09BFMAQL8MP0 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of CD09BFMAQL8MP0?
AMPHENOL LTW
