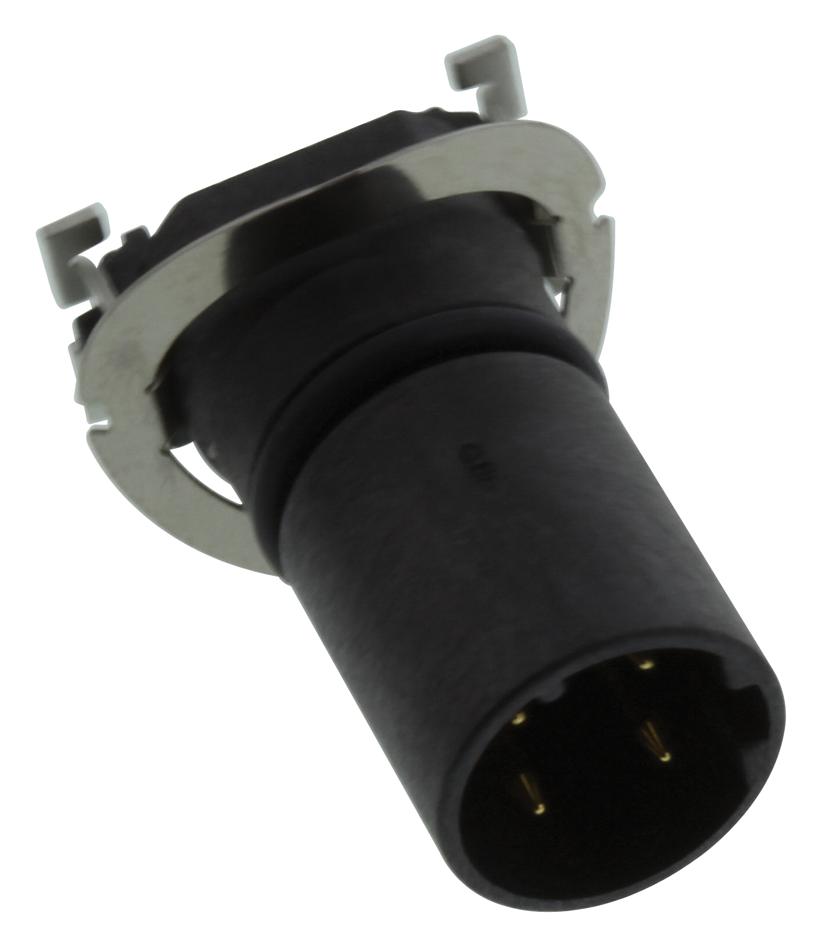

AMPHENOL LTW MSDS04PMMTEE0001 Industrial waterproof connector
This industrial-grade electrical connector features a thermoplastic housing with gold-plated copper alloy male pins and tin-plated ground components for enhanced durability. Designed for reliable performance in harsh environments, it withstands temperatures from -55°C to +125°C, offers a contact resistance of max 10mΩ, and provides insulation resistance of at least 100MΩ. Rated for 250V DC/AC with a current capacity of 4A. Its robust construction includes stainless steel springs and silicone O-rings, ensuring long-term durability with up to 1000 mating cycles and protection against salt spray and elevated temperatures, making it ideal for industrial applications.
AMPHENOL LTW MSDS04PMMTEE0001 Industrial waterproof connector Specifications:
- Housing: Thermoplastic
- Male Pin Material: Copper Alloy, Gold Plated
- Ground Material: Copper Alloy, Tin Plated
- Spring: Stainless Steel
- O-Ring: Silicone, Gray
- Contact Resistance: Max 10mΩ
- Insulation Resistance: Min 100MΩ
- Dielectric Withstanding Voltage: 1kV
- Rated Voltage: 250V DC/AC, 60V for 5Pin
- Rated Current: 4A for 3Pin,4Pin,5Pin; 2A for 8Pin
- Durability: 1000 Cycles
- Temperature Range: -55°C to +125°C
- Salt Spray Resistance: 48 hours
- SMT Temperature: 260°C for 5 sec
- Dimensions: Not specified, compliant with standard PCB layouts
Buy the Brand MSDS04PMMTEE0001 – Reliable Industrial Connectors for Harsh Environments
Order the industrial waterproof connector MSDS04PMMTEE0001 online today and benefit from its high durability, excellent resistance to environmental stressors, and reliable electrical connectivity. Designed for demanding industrial applications, this connector features a thermoplastic housing, gold-plated contacts, and robust construction. Its rated temperature range from -55°C to +125°C, with a withstand voltage of 1kV and a current capacity of 4A, ensures long-lasting performance. Easy to install, resistant to salt spray, with high mating cycle durability, perfect for your industrial needs.
Buy MSDS04PMMTEE0001 now and experience unmatched durability and reliable electrical performance in industrial applications.
