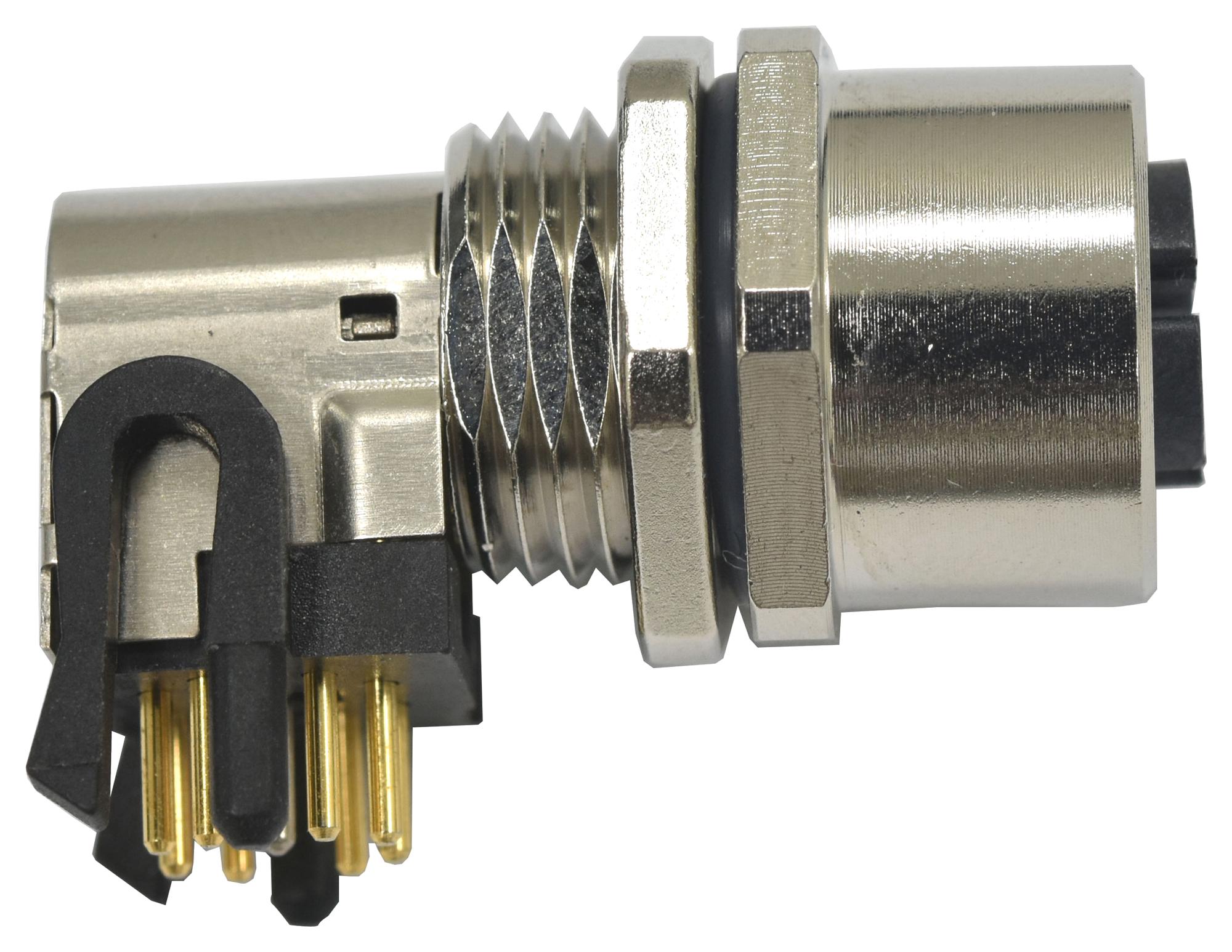

AMPHENOL LTW MSXS08PFFRSH7001 Industrial Data Receptacle
The MSXS08PFFRSH7001 is a high-performance PCB 90° receptacle designed for reliable data transmission in industrial environments. It features IP67 waterproof rating, UL 94V-0 rated material, and complies with IEC 61076-2-109 standards. The connector supports Cat. 6A data rates up to 10 Gbps, with a robust 8-pin configuration and M12 screw locking mechanism. Suitable for harsh conditions with temperature ranges from -40°C to 105°C, ideal for automation and industrial networking applications, offering durability and corrosion resistance.
AMPHENOL LTW MSXS08PFFRSH7001 Industrial Data Receptacle Specifications:
- Number of Contacts: 8Pin
- Connector Type: PCB 90° Receptacle
- Material: UL 94V-0 Rated
- Waterproof Rating: IP67
- Current Rating: 0.5A
- Voltage Rating: 50V ac, 60V de
- Temperature Range: -40°C to 105°C (receptacle), -20°C to 80°C (overmolded cable)
- Durability: 100 cycles
- Standards: IEC 61076-2-109
- Locking Mechanism: M12 Screw
- Application: Industrial automation, surveillance, data transmission
Buy the Amphenol Series M12 Data Connector: MSXS08PFFRSH7001
Order the Amphenol MSXS08PFFRSH7001 PCB 90° receptacle online today for dependable high-speed data transmission in challenging industrial conditions. Crafted with UL 94V-0 rated materials and IP67 waterproofing, this connector ensures durability and corrosion resistance. Suitable for automation, surveillance, and industrial networking, it supports Cat. 6A data rates up to 10 Gbps. Features include a robust locking mechanism, wide temperature tolerance from -40°C to 105°C, and compliance with IEC standards. Perfect for challenging environments requiring reliable and long-lasting connections.
Get Amphenol MSXS08PFFRSH7001 today—built for precision and reliable data transfer in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSXS08PFFRSH7001?
You can click on the BUY or RFQ button to purchase MSXS08PFFRSH7001 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSXS08PFFRSH7001?
You can download the MSXS08PFFRSH7001 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSXS08PFFRSH7001?
AMPHENOL LTW
