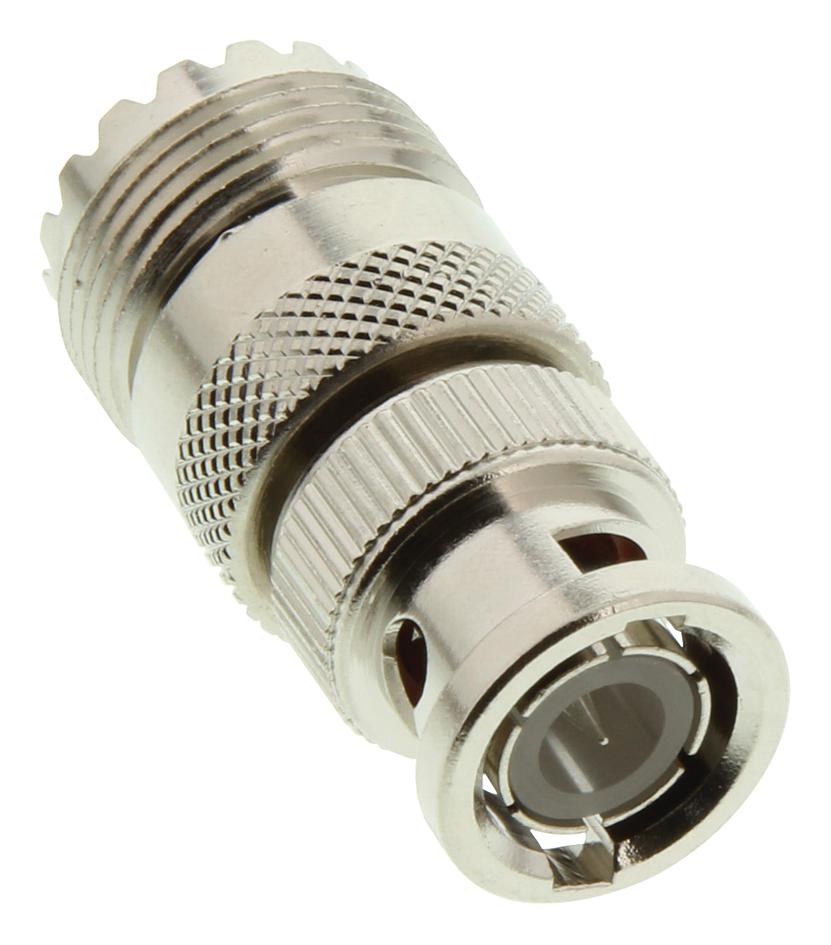

AMPHENOL RF 0002900 UHF Connector Series
Amphenol's UHF connector series, invented in the 1930s, provides a cost-effective and versatile solution for low-frequency systems. These connectors, designated with the “RFX” part number prefix, are commonly used in antennas, cable assembly, and public address systems. While not matching the performance of industrial or military-grade connectors, they are well-suited for commercial applications. Features include a large-size threaded coupling for a rugged design and options for solder or crimp termination, accommodating a variety of coaxial cables. Adapters are available to support a wide range of cable types.
AMPHENOL RF 0002900 UHF Connector Series Specifications:
- Impedance: Non-constant
- Frequency_range: DC - 300 Hz (usable to 500 Hz)
- Voltage_rating: ≤ 500 V peak (depending on cable)
- Insulation_resistance: 5,000 MΩ minimum
- Dielectric_withstanding_voltage: 1,000 Vrms (at sea level)
- Mating_Center_conductor_cable_affixture: 5/8-24 Threaded coupling
- Durability_matings: 500 cycles minimum
- Temperature_range: -65°C to +165°C
- Thermal_shock: -55°C to +85°C
- Corrosion: MIL-STD-202, method 107, cond. A
- Vibration: MIL-STD-202, method 101, cond. B
- Mechanical_shock: MIL-STD-202, method 213, cond. 1
- Body_and_outer_contacts_Plug: Brass or zinc alloy
- Male_contact_Plug: Brass, silver plated
- Female_contact_Plug: Beryllium copper, silver plated
- Crimp_ferrule_Plug: Copper or brass
- Other_metal_parts: Brass, nickel plated
- Insulator: PTFE, copolymer of styrene, or mica-filled phenolic
Buy the 000-2900 AMPHENOL RF UHF Connector Series | myMectronic
Securely purchase the Amphenol RF 000-2900 UHF Connector Series online today.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 0002900?
You can click on the BUY or RFQ button to purchase 0002900 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 0002900?
You can download the 0002900 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 0002900?
AMPHENOL RF
