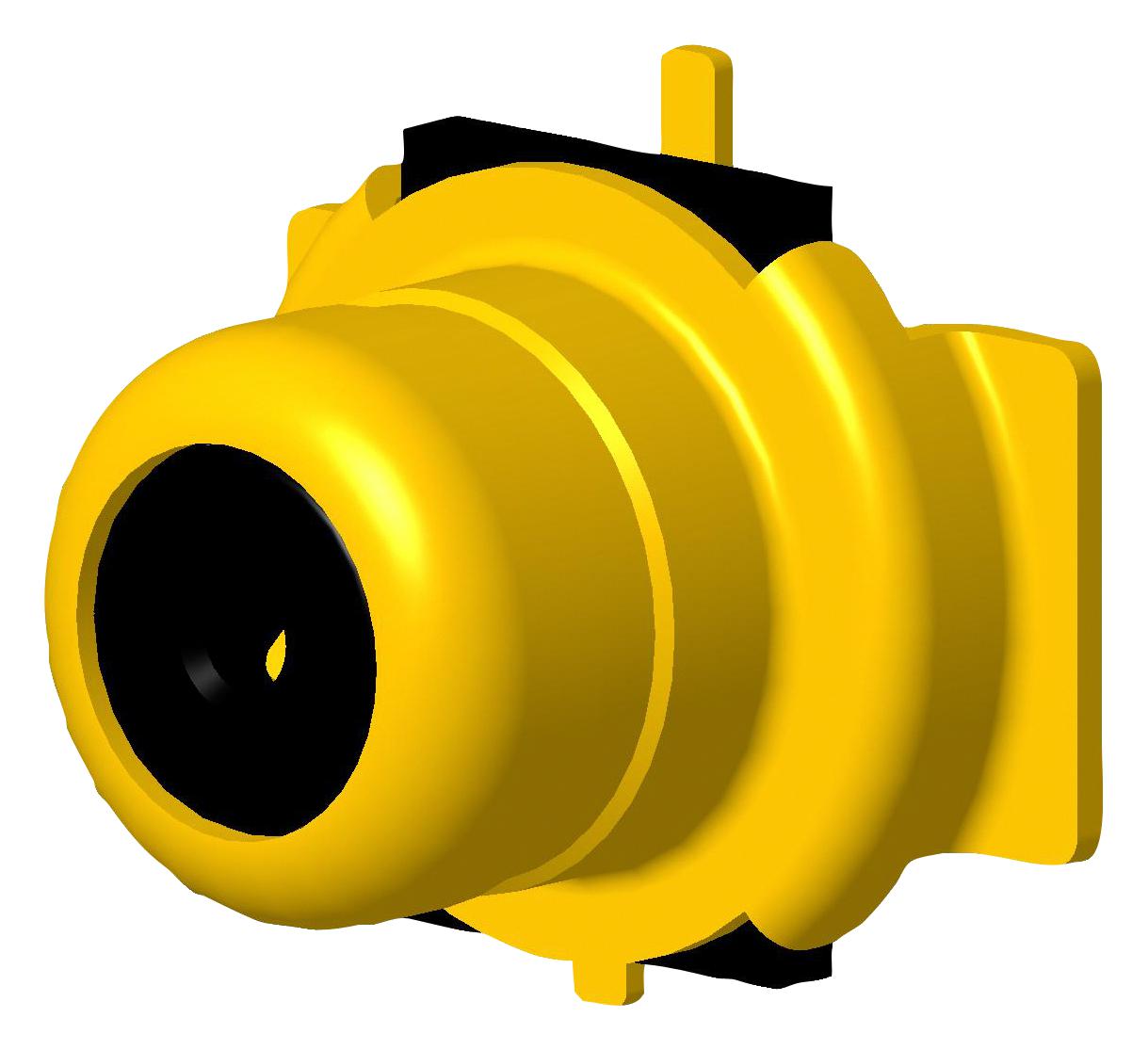

AMPHENOL RF 9029224 RF Connector
This RF coaxial connector features a 50 Ohm impedance and operates from DC to 2.5 GHz, making it suitable for high-frequency applications. Constructed with a copper alloy body with a minimum of 3 micro inches of gold plating over nickel, it offers excellent electrical performance, durability of at least 1200 cycles, and withstands temperatures ranging from -30°C to +85°C. It supports a maximum voltage rating of 100 VAC, power rating of 4 W, and exhibits a low contact resistance for reliable signal transmission. Packaged on tape and reel for efficient assembly, it complies with durability standards and withstands environmental stresses including vibration, shock, and humidity.
AMPHENOL RF 9029224 RF Connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC - 2.5 GHz
- VSWR: UNMATED: 1.2 from DC to 2.5 GHz, MATED: 1.3 from 2 to 2.5 GHz
- Insertion Loss: 0.15 dB max from DC to 2 GHz, 0.20 dB max from 2 to 2.5 GHz
- Voltage Rating: 100 VAC
- Power Rating: 4 W
- Contact Resistance: Center contact 75 mΩ max, Outer contact 50 mΩ max
- Dielectric Withstanding Voltage: 100 VRMS
- Material: Copper alloy with gold flash plating over 80 micro inches of nickel
- Temperature Range: -30°C to +85°C
- Durability: 1200 cycles min.
- Environmental Resistance: Vibration, shock, humidity compliant with MIL-STD-202F
- Packaging: Tape and reel, 1200 pcs per reel
- Maximum Operating Temperature: +85°C
Buy the Buy Amphenol RF Connector Part Number 9029224 Online
Purchase the high-quality RF connector Part Number 9029224 from our online store to ensure reliable performance in your RF applications. Designed for frequencies up to 2.5 GHz, it features a durable copper alloy body with gold plating for excellent conductivity and corrosion resistance. Packaged conveniently on tape and reel, it suits automated assembly lines. With a voltage rating of 100 VAC and power capacity of 4 W, this connector offers low contact resistance and high durability, making it an ideal choice for communication, test equipment, and sophisticated electronic systems. Buy now to benefit from fast delivery and competitive prices.
Order your Amphenol RF connector Part Number 9029224 today and ensure reliable high-frequency signal transmission in your communication projects.
Frequently Asked Questions
Where can I buy AMPHENOL RF 9029224?
You can click on the BUY or RFQ button to purchase 9029224 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 9029224?
You can download the 9029224 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 9029224?
AMPHENOL RF
