AMPHENOL RF 0316594 TNC Connector
This waterproof and tamper-resistant TNC connector series offers reliable 50-ohm impedance performance, ideal for antennas, industrial, wireless, military, and broadband applications. Designed with IP67-rated sealing and threaded coupling, these connectors feature durable brass and beryllium copper components, suitable for extreme temperatures from -65°C to +165°C. Available in various configurations including straight, right-angle, bulkhead, and PCB mounts, they ensure secure, long-lasting connections in harsh environments, supporting up to 11 GHz frequency range and multiple mating cycles for versatile, heavy-duty usage.
AMPHENOL RF 0316594 TNC Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 11 GHz
- Return Loss: -18 dB (max)
- Dielectric Withstanding Voltage: 1500 VRMS max
- Insulation Resistance: 5000 MΩ min
- Contact Resistance: Center contact 1.5 mΩ max, Outer contact 0.2 mΩ max
- Coupling Style: Threaded
- Mating Cycles: 500 min.
- Temperature Range: -65°C to +165°C
- Body Material: Brass
- Outer Contact Material: Brass
- Male Contact: Beryllium Copper
- Female Contact: Copper
- Crimp Ferrule Material: PTFE
- Insulator: PTFE
- Gasket Material: Silicone
- RoHS Compliant

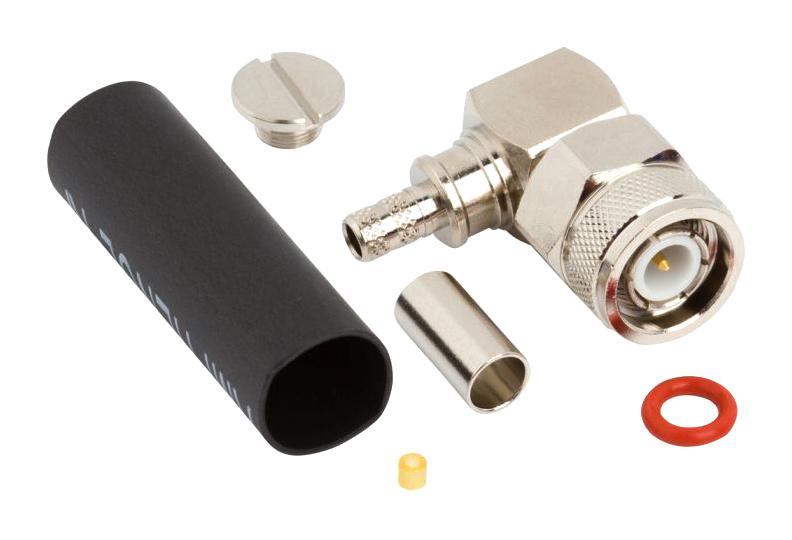

Buy the Amphenol Series IP67 TNC Connector: 0316594
Purchase the Amphenol waterproof IP67 TNC connector online today and enjoy secure, durable connections for antennas, wireless systems, and industrial applications. Designed for extreme temperatures and harsh environments, this connector offers excellent electrical performance with a threaded coupling and tamper-resistant features. Perfect for military, broadband, and outdoor setups, ensuring long-lasting, reliable performance. Buy now to enhance your systems with top-quality, IP-rated connectors that withstand the elements and rigorous use.
Buy Amphenol 0316594 waterproof TNC connector now and experience unmatched reliability and performance in harsh environmental conditions.
Frequently Asked Questions
Where can I buy AMPHENOL RF 0316594?
You can click on the BUY or RFQ button to purchase 0316594 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 0316594?
You can download the 0316594 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 0316594?
AMPHENOL RF
