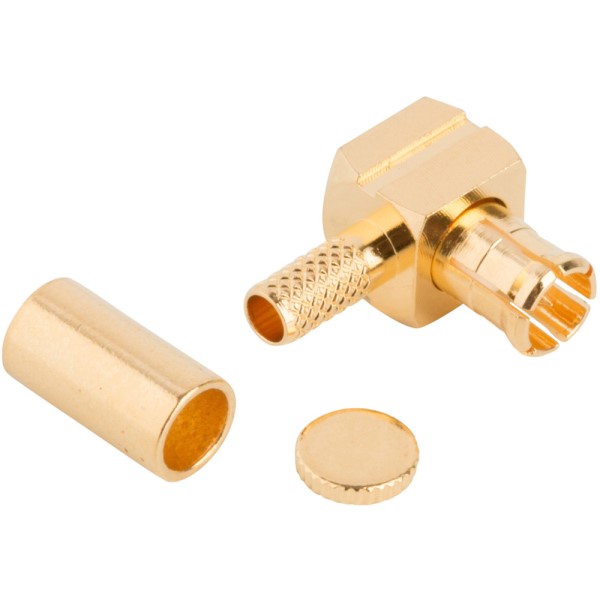

AMPHENOL RF 919136P71AX MCX Connector
The Amphenol 919-136P-71AX is a miniature coaxial connector conforming to the CECC 22000 specification. Its compact size makes it suitable for applications where space is limited, such as wireless LAN, broadband, and instrumentation. The connector offers broadband performance up to 6 GHz with a snap-on mating design for quick and easy connections. It is designed to accommodate a variety of miniature coaxial cables and is widely used in automotive, wireless infrastructure, and telecom markets. The 919-136P-71AX provides reliable performance and is available with various plating and termination options.
AMPHENOL RF 919136P71AX MCX Connector Specifications:
- Impedance: 50 Ω
- Frequency range: DC - 6 GHz
- VSWR: 1.06 max. DC - 2.5 GHz (straight)
- RF-leakage: 60 dB minimum @ 1 GHz (fexible cable)
- Voltage rating (at sea level): ≥ 335 Vrms
- Contact resistance: center contact: ≤ 5 mΩ
- Insulation resistance: 10,000 MΩ minimum
- Insertion loss maximum: 0.10 dB @ 1 GHz
- Dielectric withstanding voltage: 1,000 Vrms (at sea level)
- Mating: Snap-on coupling per CECC 22220
- Contact Captivation: ≥ 2.3 lbs (10N)
- Engagement force: ≤ 5.6 lbs (25N)
- Disengagement force: ≥ 2.3 lbs (10N)
- Durability (matings): 500 cycles minimum
- Temperature range: -55°C to +155°C
- Material (Male contact): Brass, gold plated
- Material (Female contact): Beryllium copper, gold plated
