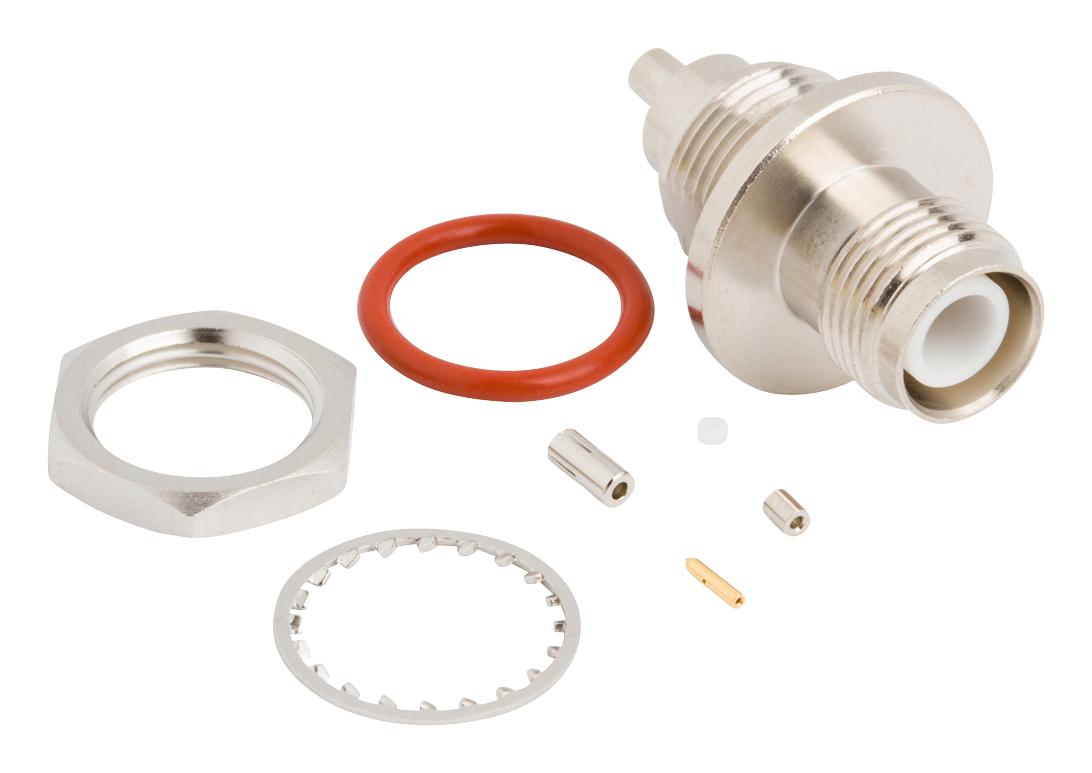

AMPHENOL RF 0316900 Waterproof TNC Connector
The TNC/RP-TNC waterproof connectors are designed for high-reliability applications, featuring IP67-rated waterproofing and tamper resistance. These connectors operate at 50 ohms, with threaded interfaces ensuring stable mating and excellent electrical performance across various configurations including straight, right-angle, bulkhead, and PCB mounts. Perfect for antennas, industrial, wireless, military, and broadband use, they are constructed from durable materials such as brass and beryllium copper, with a temperature range of -65°C to +165°C, ensuring long-lasting performance in harsh environments. Available with a variety of securing options for secure connections.
AMPHENOL RF 0316900 Waterproof TNC Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 11 GHz
- Return Loss: 3 (-18 dB) Max.
- Dielectric Withstanding Voltage: 1500 VRMS Max.
- Insulation Resistance: 5000 MΩ Min.
- Contact Resistance: Center Contact 1.5 mΩ Max., Outer Contact 0.2 mΩ Max.
- Coupling Style: Threaded
- Mating Cycles: 500 Min.
- Temperature Range: -65°C to +165°C
- RoHS Compliant
- Body and Outer Contacts Material: Brass
- Male Contact: Brass Beryllium Copper
- Female Contact: Beryllium Copper
- Crimp Ferrule: Brass
- Insulator: PTFE
- Gasket: Silicone
Buy the Amphenol Series Waterproof TNC: 0316900
Enhance your electronic system’s durability with the waterproof TNC connector from Amphenol. Featuring IP67-rated sealing and tamper resistance, it ensures secure, stable connections in outdoor and industrial environments. Made from high-quality materials like brass and beryllium copper, it maintains excellent electrical performance up to 11 GHz frequency range. Suitable for antennas, military systems, and broadband applications, this connector supports 500 mating cycles and withstands extreme temperature variations from -65°C to +165°C. Buy online now for fast delivery and reliable performance.
Buy Amphenol 0316900 waterproof TNC connector now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF 0316900?
You can click on the BUY or RFQ button to purchase 0316900 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 0316900?
You can download the 0316900 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 0316900?
AMPHENOL RF
