AMPHENOL RF 095850222M100 RF Connector
The part number 095850222M100 is a high-quality waterproof and tamper-resistant TNC connector suitable for RF applications. Designed with durable materials including brass and beryllium copper, it operates at 500 ohms impedance across a frequency range of DC to 11 GHz, ensuring reliable performance. The connector features a threaded coupling style, typical mating cycles of 500, and environmental resilience with an operating temperature range from -65°C to +165°C. It complies with RoHS standards and is ideal for applications such as antennas, industrial setups, wireless systems, and military equipment.
AMPHENOL RF 095850222M100 RF Connector Specifications:
- Impedance: 500 ohms
- Frequency Range: DC to 11 GHz
- Return Loss (VSWR): 3 (-18 dB) Max
- Dielectric Withstanding Voltage: 1500 VRMS Max
- Insulation Resistance: 5000 MO Min
- Contact Resistance: Center contact 1.5 mΩ Max, Outer contact 0.2 mΩ Max
- Coupling Style: Threaded
- Mating Cycles: 500 Min
- Temperature Range: -65°C to +165°C
- RoHS Compliant
- Materials: Brass body and outer contacts, Beryllium Copper male contact, Copper female contact, PTFE insulator, Silicone gasket

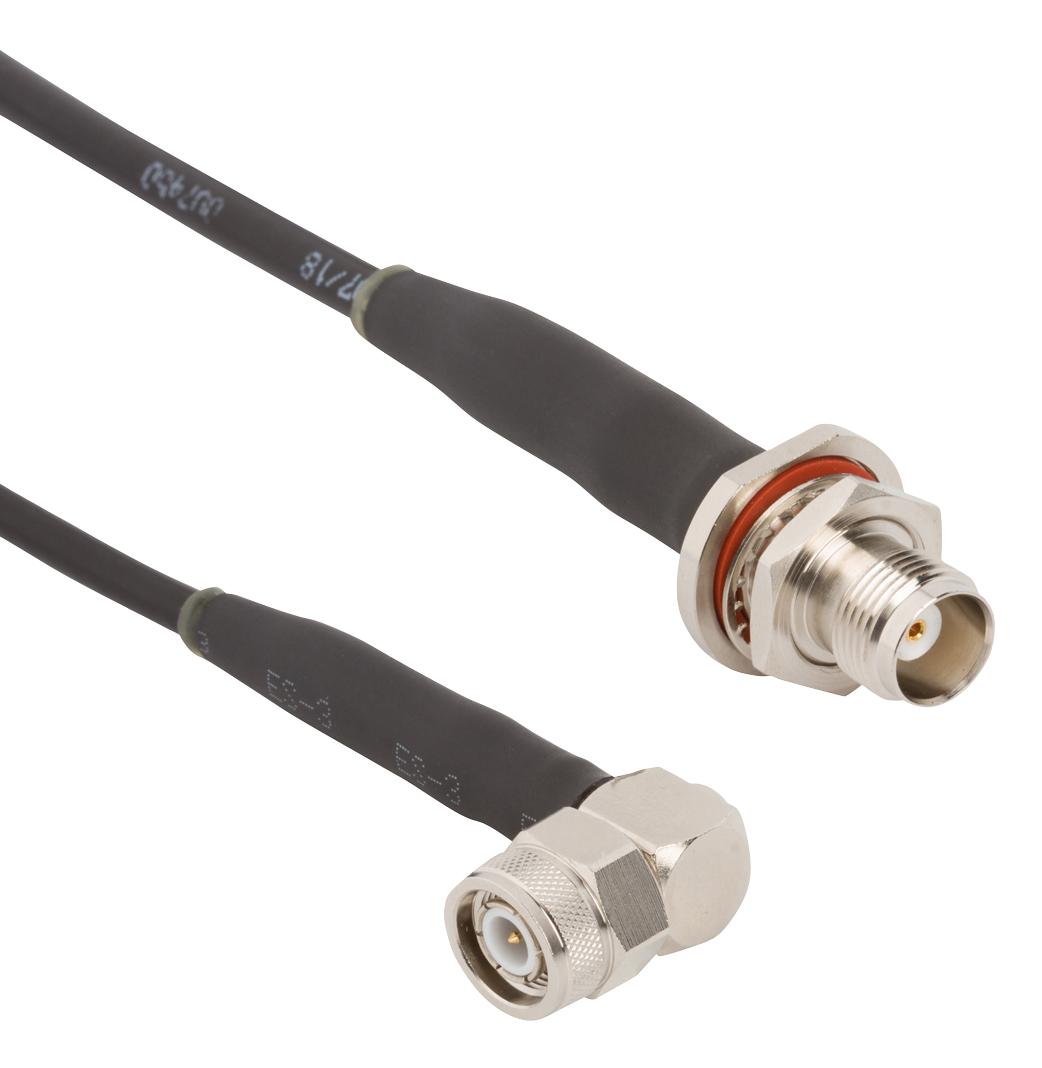

Buy the Buy Amphenol RF Part Number 095850222M100 Online
Order the Amphenol RF waterproof TNC connector part number 095850222M100 online today for robust and reliable RF performance in harsh environments. This connector features a threaded coupling style, excellent dielectric strength, and is constructed with high-quality materials like brass and Beryllium Copper to ensure durability and longevity. Ideal for antennas, industrial, wireless, and military applications, it withstands extreme temperatures from -65°C to +165°C. Secure your systems with this high-performance, IP67 rated connector designed for demanding professional use.
Get Amphenol RF 095850222M100 today—built for waterproof durability and long-lasting RF connections.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095850222M100?
You can click on the BUY or RFQ button to purchase 095850222M100 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095850222M100?
You can download the 095850222M100 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095850222M100?
AMPHENOL RF
