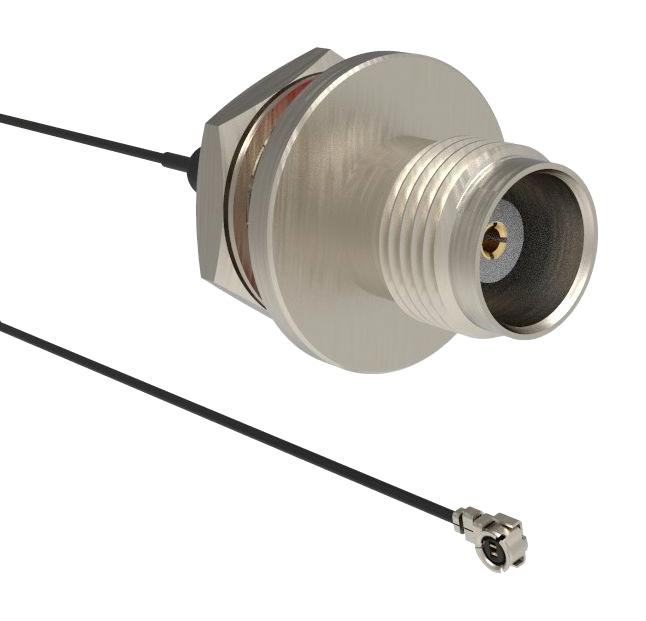

AMPHENOL RF 095850281100 Waterproof TNC Connector
The IP67 waterproof and tamper-resistant TNC and RP-TNC connectors from Amphenol RF offer reliable performance in harsh environments. Designed for applications like antennas, industrial, wireless, military, and broadband systems, these connectors feature a threaded coupling style for secure attachment and withstand temperatures from -65°C to +165°C. Made of brass and beryllium copper, with PTFE insulators and silicone gaskets, they support frequencies up to 11 GHz, with impedance of 50 ohms, 500 mating cycles, and dielectric withstand voltage of 1500 VRMS, ensuring durability and high-quality electrical performance.
AMPHENOL RF 095850281100 Waterproof TNC Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC - 11 GHz
- Return Loss (VSWR): 1.3 (-18 dB) Max.
- Dielectric Withstanding Voltage: 1500 VRMS Max.
- Insulation Resistance: 5000 MO Min.
- Contact Resistance: Center Contact 1.5 mO Max., Outer Contact 0.2 mQ Max.
- Coupling Style: Threaded
- Mating Cycles: 500 Min.
- Temperature Range: -65°C to +165°C
- Body and Outer Contacts: Brass
- Male Contact: Brass Beryllium Copper
- Female Contact: Beryllium Copper Brass
- Crimp Ferrule: Copper
- Insulator: PTFE
- Gasket: Silicone
Buy the Amphenol Series IP67 Waterproof TNC Connector: 095850281100
Enhance your systems with the durable waterproof TNC and RP-TNC connectors from Amphenol RF. Designed for harsh environments, these connectors feature IP67 sealing, threaded stability, and withstand temperatures from -65°C to +165°C. Crafted from corrosion-resistant brass and beryllium copper, they support frequencies up to 11 GHz with a 50-ohm impedance, ensuring reliable high-frequency performance. Ideal for antennas, industrial, wireless, military, and broadband applications, they offer 500 mating cycles and dielectric withstand voltage of 1500 VRMS, guaranteeing long-lasting, high-quality connections.
Order your Amphenol Series IP67 waterproof TNC connector today and give your outdoor projects the dependable sealing and secure connection they need.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095850281100?
You can click on the BUY or RFQ button to purchase 095850281100 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095850281100?
You can download the 095850281100 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095850281100?
AMPHENOL RF
