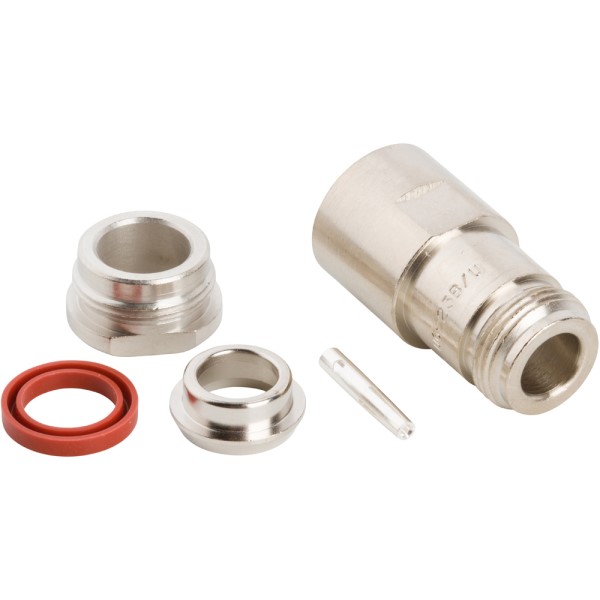

AMPHENOL RF 08263 Type N Connector
Amphenol's Type N connector (part number 082-63) is a robust RF connector developed in the 1940s to meet the need for a durable, weatherproof connector with consistent performance up to 11 GHz. It's suitable for terminating medium to miniature size coaxial cables like RG-8, RG-225, RG-58, and RG-141. Available in standard and helical corrugated versions, this connector offers flexibility in design and manufacturing with options for military, industrial, and commercial applications. It's commonly used in antennas, base stations, broadcast systems, cable assemblies, radar systems, and instrumentation.
AMPHENOL RF 08263 Type N Connector Specifications:
- Impedance: 50 ohms
- Mating: 5/8-24 threaded
- Temperature Range: TFE -65°C to + 165°C
- Frequency Range: 0-11 GHz
- Voltage Rating: 1,500 volts peak
- Cable Affixment: Crimp or Solder
- Dielectric: 2,500 volts rms
- VSWR: 1.3 max. 0-11 GHz
- Contact Resistance: {'center': '1.0 milliohm', 'outer': '0.2 milliohm'}
- RF Leakage: -90 dB minimum at 3 GHz
- Insertion Loss: .15 dB maximum at 10 GHz
- Insulation Resistance: 5000 megohms minimum
- Insulators: TFE, copolymer of styrene or glass-TFE
- Weatherproof: All series N with gaskets
- Material: {'Contacts': 'Male: brass; Female: phosphor bronze or beryllium copper', 'Other Metal Parts': 'Brass: silver or gold plated', 'Crimp Ferrule': 'Copper'}
