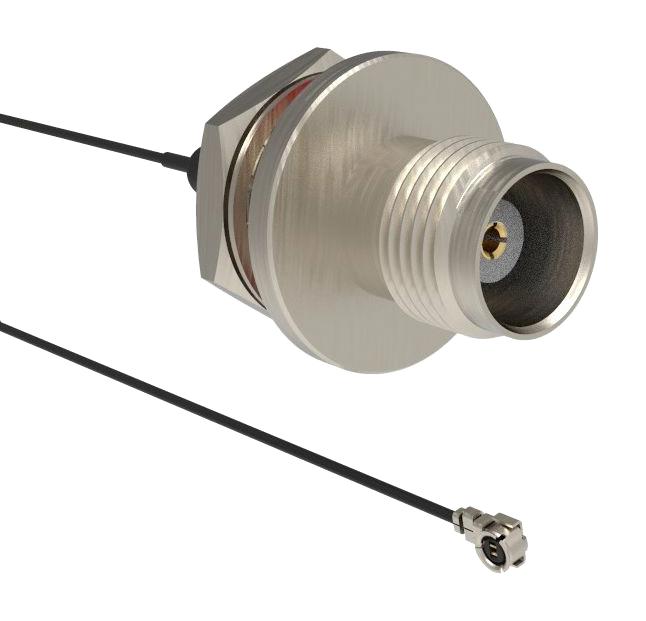

AMPHENOL RF 095850281300 TNC Front Mount Bulkhead Jack
The AMPHENOL RF 095-850-281-300 is a TNC straight front mount bulkhead jack, engineered for applications demanding robust and secure connectivity. Its IP67 waterproof rating and tamper-resistant design make it suitable for use in industrial, military, and wireless environments where exposure to the elements or external interference is a concern. The threaded coupling mechanism ensures a stable and reliable connection, while the durable construction guarantees long-term performance. This connector is a vital component in antenna systems and other critical applications requiring high-performance RF connectivity.
AMPHENOL RF 095850281300 TNC Front Mount Bulkhead Jack Specifications:
- Impedance: 50 Ω
- Frequency Range: DC- 11GHz
- Return Loss (VSWR): 1.3 (-18 dB) Max.
- Dielectric Withstanding Voltage: 1500 VRMS Max.
- Insulation Resistance: 5000 MΩ Min.
- Contact Resistance (Center): 1.5 mΩ Max.
- Contact Resistance (Outer): 0.2 mΩ Max.
- Coupling Style: Threaded
- Mating Cycles: 500 Min.
- Temperature Range: -65°C to +165°C
- Materials (Body and Outer Contacts): Brass
- Materials (Male Contact): Brass/Beryllium Copper
- Materials (Female Contact): Beryllium Copper/Brass
- Materials (Crimp Ferrule): Copper
- Materials (Insulator): PTFE
- Materials (Gasket): Silicone
