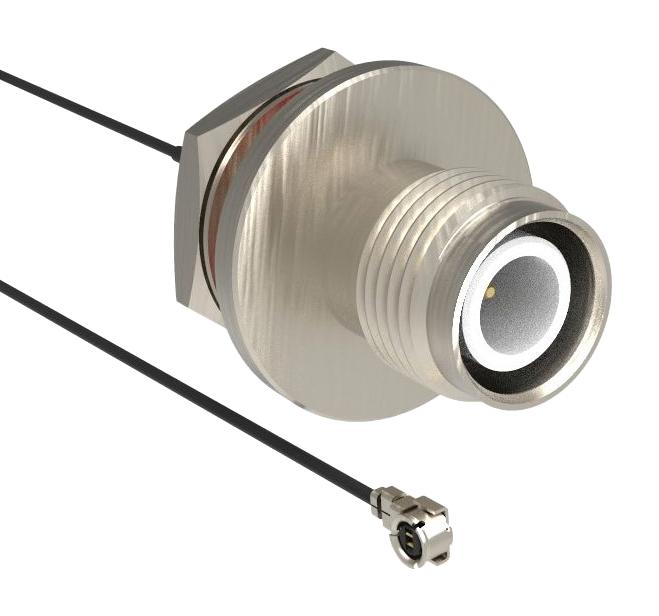

AMPHENOL RF 095850282200 IP67 TNC Connector
The AMPHENOL RF 095-850-282-200 is a high-performance TNC connector engineered for applications demanding exceptional protection against environmental factors and unauthorized access. Its IP67 rating ensures resistance to dust and water ingress, while the tamper-resistant design safeguards against system compromise. Utilizing a threaded coupling mechanism, this connector provides a secure and stable mating interface, crucial for maintaining reliable electrical performance. Commonly used in antennas, industrial settings, military applications, and broadband systems, the 095-850-282-200 offers a robust solution for demanding RF connectivity needs. It is compatible with various cable types and configurations, ensuring versatility in system design.
AMPHENOL RF 095850282200 IP67 TNC Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: DC- 11GHz
- Return Loss (VSWR): 1.3 (-18 dB) Max.
- Dielectric Withstanding Voltage: 1500 VRMS Max.
- Insulation Resistance: 5000 MΩ Min.
- Contact Resistance (Center): 1.5 mΩ Max.
- Contact Resistance (Outer): 0.2 mΩ Max.
- Coupling Style: Threaded
- Mating Cycles: 500 Min.
- Temperature Range: -65°C to +165°C
- Materials (Body and Outer Contacts): Brass
- Materials (Male Contact): Brass/Beryllium Copper
- Materials (Female Contact): Beryllium Copper/Brass
- Materials (Crimp Ferrule): Copper
- Materials (Insulator): PTFE
- Materials (Gasket): Silicone
- RoHS Compliant: Yes
