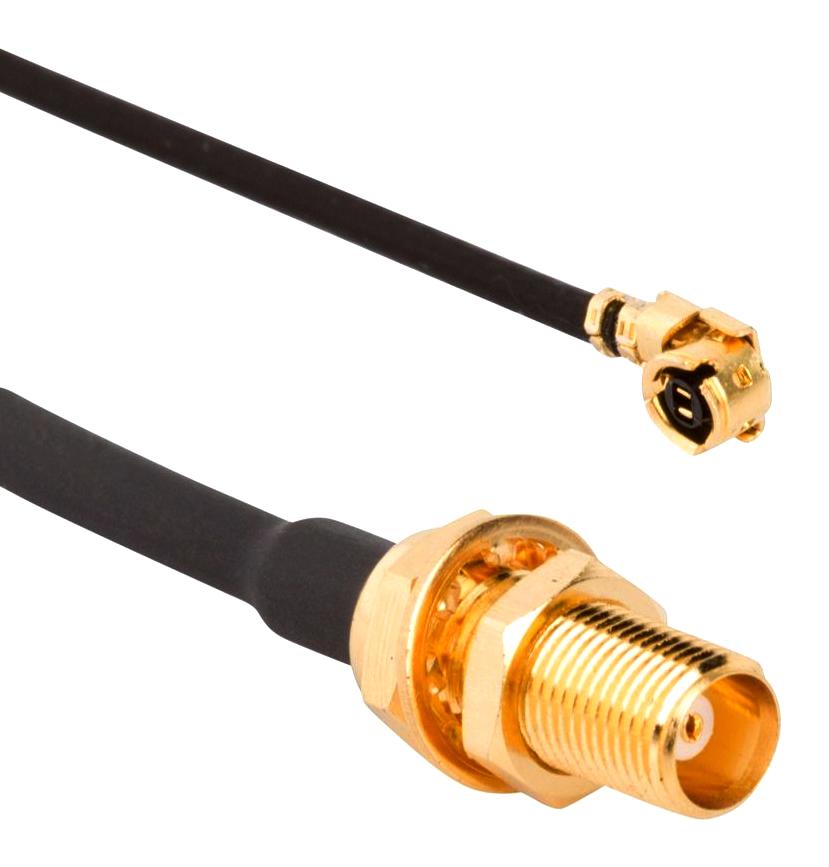

AMPHENOL RF 095900557200 MMCX Ultraminiature Connector
Amphenol RF's MMCX connectors and cable assemblies are engineered for micro-coax cable types, providing a 50-ohm impedance solution for applications with limited space, such as IoT infrastructure and consumer devices. The MMCX mounted externally on a panel allows for easy routing within an enclosure, mating with AMC or AMC4 PCB interfaces. Features include quick connect/disconnect snap-on mating, broadband performance with low reflection, and a wide variety of configurations and cable types. These connectors are well-suited for external antennas with an MMCX plug interface and connections between PCBs or modules in tight spaces.
AMPHENOL RF 095900557200 MMCX Ultraminiature Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 170 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 500 VRMS Max
- VSWR (Return Loss): DC - 4 GHz: 1.25 (-19 dB) Max, 4 - 6 GHz: 1.40 (-16 dB) Max
- Insulation Resistance: 500 MΩMin
- Center Contact Resistance: 10 mΩMin
- Outer Contact Resistance: 5 mΩMin
- Temperature Range: −40°C to +90°C
- RoHS Compliance: Compliant with Excemption 6C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body: Brass, Gold Plated
- Contact: Brass, Gold Plated
- Insulator: PTFE, Natural
Buy the 095-900-557-200 AMPHENOL RF MMCX Ultraminiature Connector | myMectronic
Securely purchase the Amphenol RF 095-900-557-200 MMCX connector online today.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 095900557200?
You can click on the BUY or RFQ button to purchase 095900557200 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095900557200?
You can download the 095900557200 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095900557200?
AMPHENOL RF
