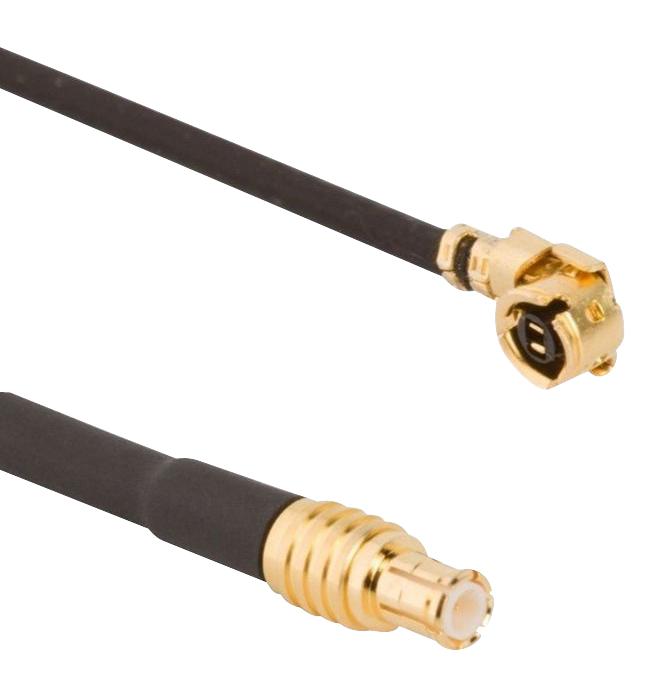

AMPHENOL RF 095900560300 MCX Plug Connector
Amphenol RF's 095-900-560-300 MCX plug connector is a miniature solution for micro-coax cable applications. Ideal for space-constrained environments like IoT infrastructure, consumer electronics, and external antennas, this connector provides a secure and reliable connection. Its robust design allows for quick connect/disconnect and supports a frequency range of DC to 6 GHz. The connector's versatility makes it a valuable component for various industrial and commercial applications, ensuring efficient signal transmission in tight spaces.
AMPHENOL RF 095900560300 MCX Plug Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 225 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 1000 VRMS Max
- VSWR(Return Loss): 1.3 (-18dB) Max
- Insulation Resistance: 10000 MΩMin
- Center Contact Resistance: 5 mΩMin
- Outer Contact Resistance: 1 mΩMin
- RF Leakage: -60 dB Max @ 1 GHz
- Insertion Loss: 0.10 dB Max @ 1 GHz
- Temperature Range: −65°C to +165°C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body Material: Brass or Beryllium Copper, Gold or Nickel Plated
- Contact Material: Brass, Gold Plated
- Insulator Material: PTFE, Natural
Buy the 095-900-560-300 AMPHENOL RF MCX Plug Connector | myMectronic
Securely purchase the Amphenol RF 095-900-560-300 MCX Plug Connector for your project.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 095900560300?
You can click on the BUY or RFQ button to purchase 095900560300 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095900560300?
You can download the 095900560300 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095900560300?
AMPHENOL RF
