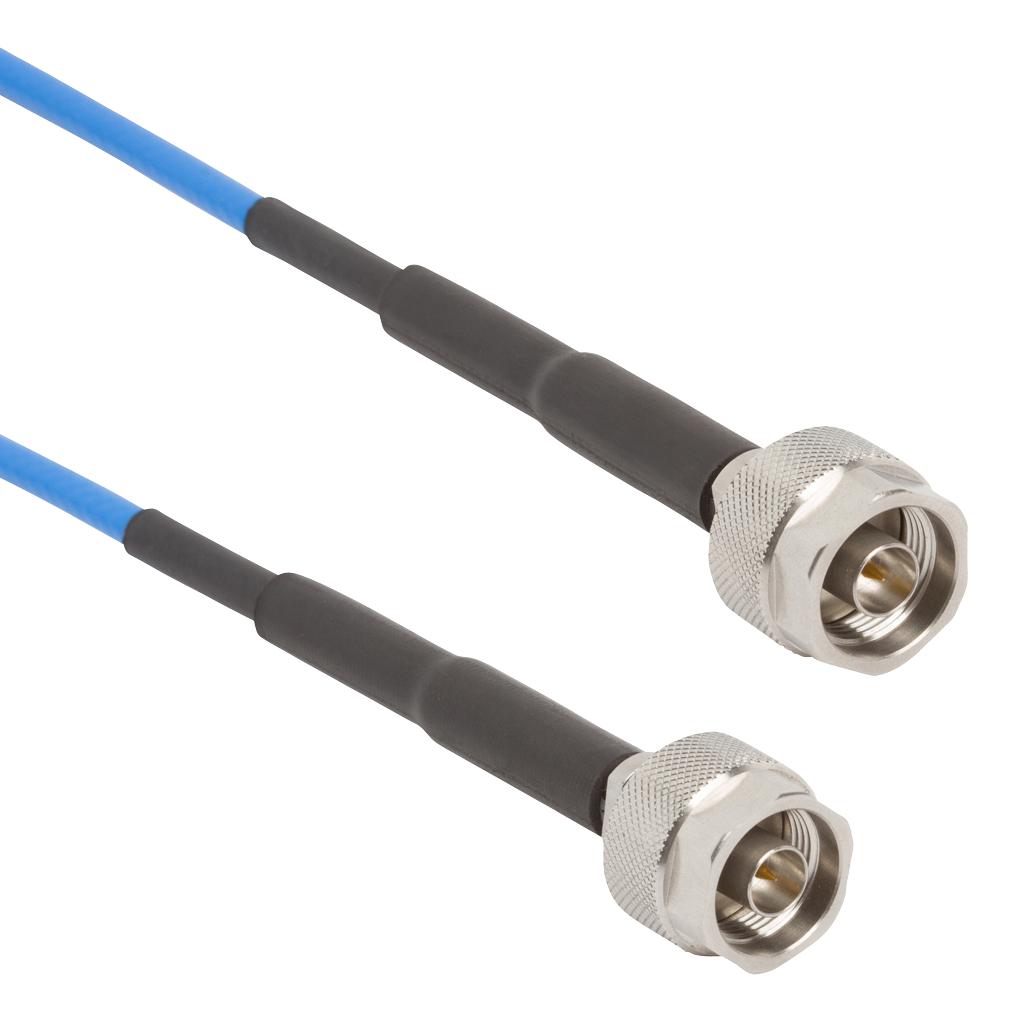

AMPHENOL RF 095909164M100 RF Test Cable
These high-performance test cables support frequencies up to 20 GHz, featuring ultra low loss, high phase stability, and durability for reliable measurement applications. Made with stainless steel connectors and triple-shielded cables, they ensure consistent phase stability with support for over 5,000 mating cycles. Designed for test and measurement, lab testing, and production environments, these cables are flexible with a minimum bend radius of 1 inch. Suitable for OEM and lab use, they provide a robust solution with excellent electrical and mechanical properties for demanding RF testing tasks.
AMPHENOL RF 095909164M100 RF Test Cable Specifications:
- Frequency Range: DC to 20 GHz
- Impedance: 50Ω
- Dielectric Withstanding Voltage: 1000 VRMS Min.
- Insertion Loss: Varies with length (e.g., 1.84 dB at 24 inches, 4.90 dB at 72 inches)
- VSWR: Max 1.27
- Phase Stability (with bending): Max 5.0°
- Amplitude Stability: Max 0.16 dB
- Velocity of Propagation: 69.40%
- Minimum Bend Radius: 1 inch
- Mating Cycles: Minimum 5000
- Connector Material: Stainless Steel, Gold Plated Beryllium Copper
- Operating Temperature: -55°C to +200°C
- Materials: PTFE Insulator, FEP Jacket, Silver Plated Copper Conductors
- RoHS Compatible
Buy the Amphenol RF 095909164M100 – Reliable RF Test Cables for Industrial Applications
Experience the reliability of Amphenol RF test cables, supporting frequencies up to 20 GHz for precise measurement and testing tasks. These ultra low loss, phase-stable cables ensure consistent performance during lab, production, and OEM testing. Constructed from durable materials with robust stainless steel connectors, they offer excellent electrical characteristics, support over 5,000 mating cycles, and provide a minimum bend radius of 1 inch for flexibility. Ideal for engineers and technicians requiring high-quality RF cables for demanding applications worldwide.
Order your Amphenol RF Series095909164M100 test cable today and enhance your measurement accuracy with dependable RF connections for demanding testing environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095909164M100?
You can click on the BUY or RFQ button to purchase 095909164M100 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095909164M100?
You can download the 095909164M100 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095909164M100?
AMPHENOL RF
