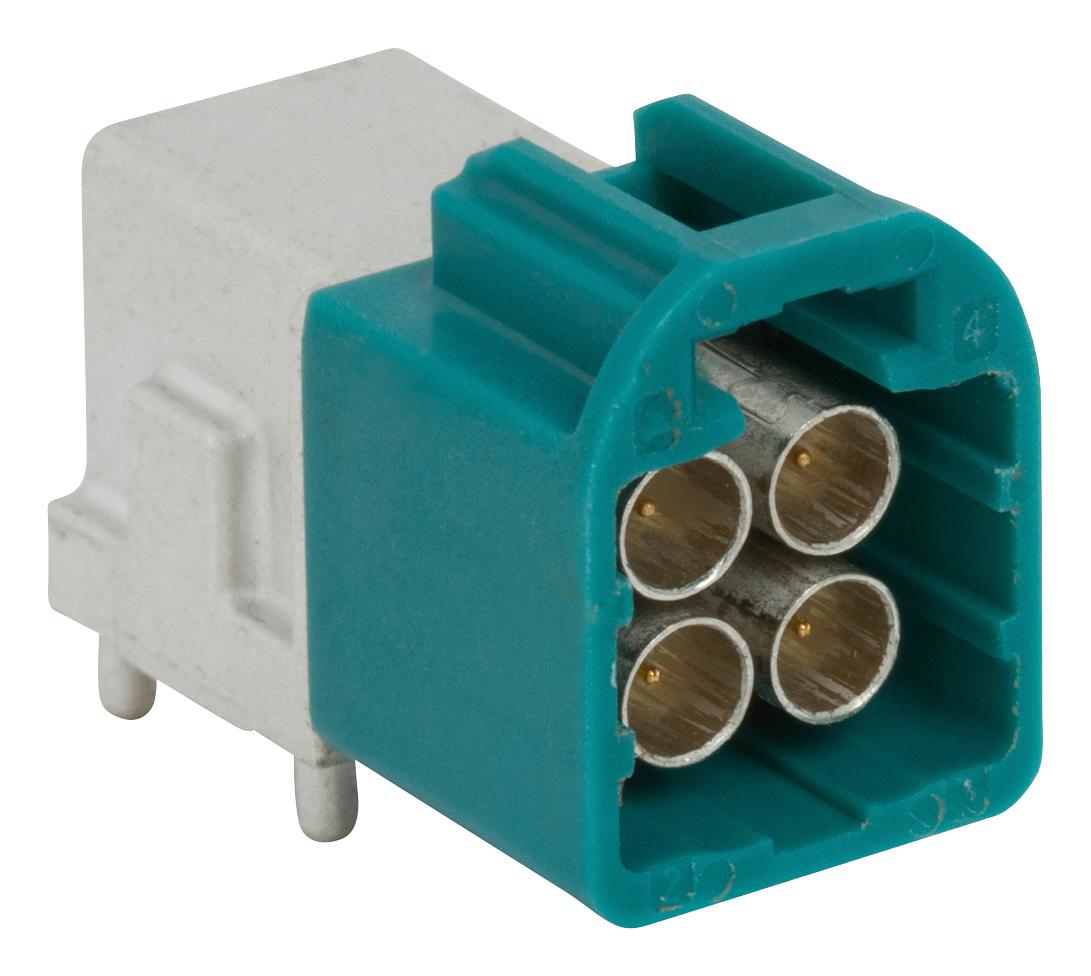

AMPHENOL RF FM4NZRPPCB1 Automotive RF Connector
The AUTOMATE Mini-FAKRA connector series by Amphenol RF offers a space-efficient, high-performance automotive RF connection supporting up to 20 Gbps data transfer. Designed with color-coded housings and mechanical keying, it ensures easy assembly and correct mating. The series features low engagement forces, impact resistance, and a compact profile suitable for vehicles with limited space. Ideal for applications like ADAS, vehicle cameras, infotainment, and V2X communication, these PCB connectors provide reliable, high-bandwidth connectivity essential for modern automotive systems. The connectors meet RoHS standards and withstand extreme temperatures from -40°C to +105°C.
AMPHENOL RF FM4NZRPPCB1 Automotive RF Connector Specifications:
- Impedance: 50Ω nominal
- Frequency Range: DC - 9 GHz
- Return Loss: 1.12 (-25dB) max. @ DC - 3 GHz; 1.22 (-20dB) max. @ 3 - 6 GHz; 1.67 (-12dB) max. @ 6 - 9 GHz
- Dielectric Withstanding Voltage: 750 VRMS
- Current Rating: <2A DC
- Contact Resistance (Center & Outer): <5mΩ
- Mechanical Mating Cycles: Minimum 25
- Engagement Force: <50N
- Disengagement Force: 25N
- Temperature Range: -40°C to +105°C
- RoHS Compliant: Yes
- Body Material: Zinc Alloy, Matte Tin Plated
- Outer Contact Material: Brass, Matte Tin Plated
- Center Contact Material: Copper Nickel Alloy, Gold Plated
- Housing: PA4T
- Insulator: LCP
Buy the Buy Amphenol RF AUTOMATE Series FM4NZRPPCB1 Part Number FM4NZRPPCB1 Online
Enhance your automotive systems with the high-performance Automated RF Connector series by Amphenol RF. Supporting up to 20 Gbps data transfer, these compact, impact-resistant connectors are perfect for ADAS, surround view cameras, infotainment, and V2X communication. Designed with color-coded housings and robust materials, they ensure easy assembly, precise mating, and durability in harsh environments from -40°C to +105°C. Order online today to upgrade your vehicle's connectivity with reliable, high-bandwidth RF solutions.
Order your Amphenol RF Series FM4NZRPPCB1 PCB connector today and ensure reliable high-speed automotive communication systems.
