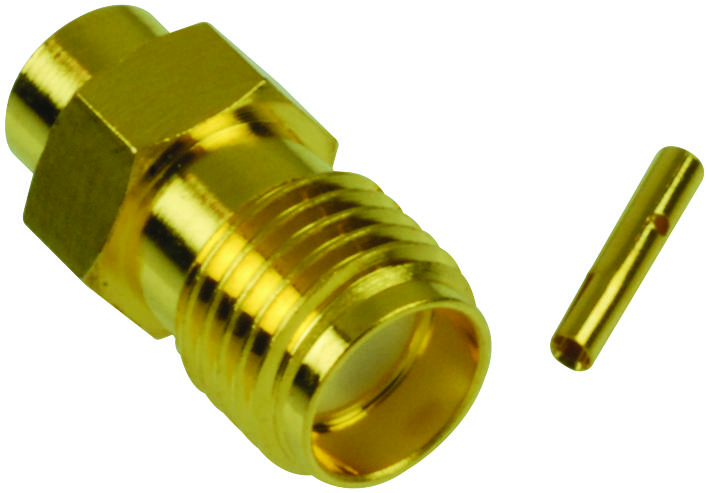

AMPHENOL RF 132104 SMA Straight Jack
The 132104 is a solder-type SMA straight jack connector designed for use with 0.141-inch semi-rigid and RG402 RF coaxial cables. It features a gold-plated brass body, gold-plated beryllium copper contacts, and a natural PTFE insulator. The connector has a standard polarity, a threaded coupling mechanism, and supports up to 500 mating cycles. Its operating temperature range is from -65°C to 165°C. Suitable for RF communications and industrial applications.
AMPHENOL RF 132104 SMA Straight Jack Specifications:
- Material: Brass body, gold-plated
- Contacts: Beryllium copper, gold-plated
- Insulator: PTFE
- Impedance: 50 ohms
- Frequency Range: DC to 18 GHz with semi-rigid cable, 0-12.4 GHz with flexible cable
- Voltage Rating: 500 V peak
- Mating Cycles: Up to 500
- Temperature Range: -65°C to +165°C
- Thread Type: 1/4-36 UNS-2B threaded coupling
- Connector Type: SMA straight jack
- Dimensions: Length varies depending on cable type
- Application: RF communication, industrial testing, aerospace
Buy the Connex 132104 – Reliable SMA Straight Jack for Industrial Applications
Order the Connex SMA Straight Jack connector online today to ensure high-quality RF connections in your industrial, aerospace, or communication systems. Featuring a durable gold-plated brass body, precision PTFE insulator, and gold-plated contacts, this connector supports up to 500 mating cycles and operates reliably from -65°C to +165°C. Its threaded 1/4-36 UNS-2B coupling guarantees secure connection. Perfect for RF testing, communication equipment, and industrial applications, it offers excellent performance at a competitive price with fast delivery and easy online ordering.
Get Connex 132104 today—built for precision and long-lasting durability in RF and industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF 132104?
You can click on the BUY or RFQ button to purchase 132104 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 132104?
You can download the 132104 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 132104?
AMPHENOL RF
