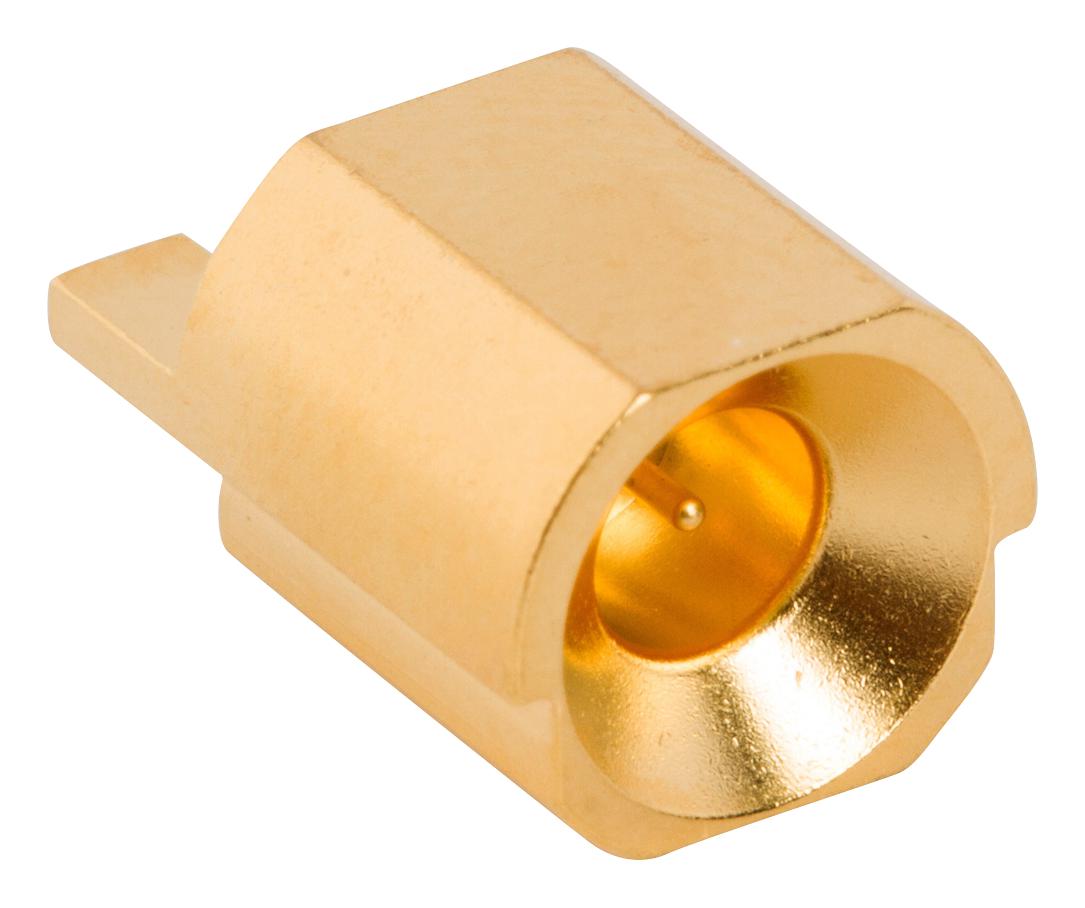

AMPHENOL RF 920508J53P RF Connector
This high-performance RF connector is designed for 5G wireless infrastructure, offering excellent RF performance up to 6 GHz, high durability, and critical for board-to-board and complex stack applications. It features flexible floating design, crash-proof mating, and versatile mounting options including surface, through-hole, and edge mount, making it ideal for small, high-frequency devices such as base stations and backplane systems. The connector ensures reliable, secure connections in demanding environments with excellent electrical and mechanical characteristics.
AMPHENOL RF 920508J53P RF Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: DC to 6 GHz
- Voltage Rating: 335 VRMS
- Dielectric Withstanding Voltage: 1000 volts
- Contact Resistance: 5 mΩ Max
- Insulator Resistance: 5000 MΩ Min
- VSWR (Mated Solution): 1.21 Max
- Insertion Loss: 0.1408 dB
- Isolation: 70 dB Min @ Up to 4 GHz
- Power Handling: 40 W @ 2.6 GHz, 120 W @ 2.5 GHz
- Max Floating Angle: 5°
- Min Board to Board Distance: 11.46 mm
- Temperature Range: -45°C to 125°C
- Environmental Resistance: MIL-STD-202 Compliant
- Materials: Brass (Gold Plated), Beryllium Copper, PTFE Insulator
Buy the Buy Amphenol RF Part Number 920508J53P Online
Order the Amphenol RF 920508J53P RF connector today for high-frequency applications up to 6 GHz. Designed with flexible floating capabilities, crash-proof mating system, and versatile mounting options, this connector ensures reliable, secure connections in demanding scenarios like 5G wireless infrastructure and complex PCB stack-ups. Its durable construction and excellent electrical properties make it ideal for use in base stations, backplanes, and multi-board assemblies. Choose this high-performance RF component to guarantee precision, longevity, and superior signal integrity in your wireless system design.
Get Amphenol RF 920508J53P today—built for high-frequency RF performance and long-lasting durability in complex board-to-board connections.
