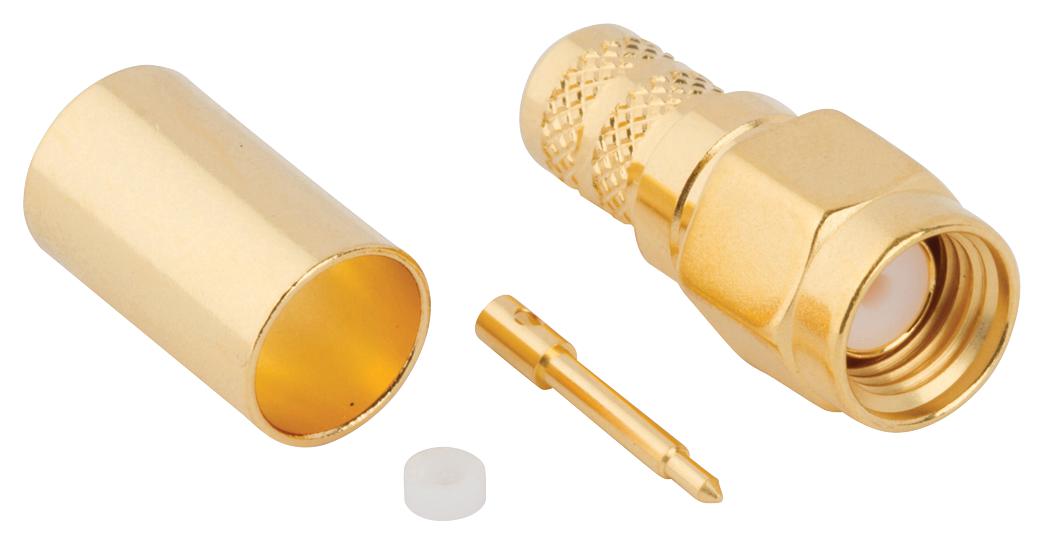

AMPHENOL RF 132451 RF SMA connector
The Amphenol RF 132451 is a SMA straight crimp connector designed for low loss LMR-240 cables. It features a gold-plated brass body and contact for durability and corrosion resistance, with a PTFE insulator for stable dielectric properties. This connector offers a nominal impedance of 50 ohms, ensuring low return loss from DC to 6 GHz, and provides high reliability with low signal loss, improved grounding, and enhanced shielding via bonded foil construction for maximum coverage. It supports quick crimp assembly, operates from -65°C to 165°C, and withstands up to 500 mating cycles, making it suitable for RF communications, smart city infrastructure, IoT antennas, telecommunications, broadband, and 5G wireless applications.
AMPHENOL RF 132451 RF SMA connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC - 6 GHz
- Return Loss: Max. 1.2:1
- Dielectric Withstanding Voltage: 1000 VRMS
- Insulation Resistance: 5000 MO min.
- Center Contact Resistance: 2.0 mΩ
- Outer Contact Resistance: 2.0 mΩ
- Body Material: Brass, Gold Plated
- Insulator Material: PTFE
- Temperature Range: -65°C to +165°C
- Mating Cycles: 500 cycles
- RoHS Compliant
- Operating Temperature Range: -65°C to +165°C
- Connectors include crimp termination
- Suitable for RF communication, IoT, 5G wireless, broadband, smart city infrastructure
Buy the Amphenol Series SMA: 132451
Purchase the Amphenol RF SMA connector 132451 online today for high-performance, low-loss RF connections. Designed for durability with gold-plated brass and PTFE insulator, this connector offers reliable impedance of 50 ohms, ensuring minimal signal loss from DC to 6 GHz. Its robust construction supports up to 500 mating cycles and operates over a wide temperature range. Ideal for RF communications, smart city infrastructure, IoT antennas, broadband, and 5G wireless networks, providing dependable performance in demanding environments.
Order your Amphenol Series SMA 132451 today and ensure reliable, low-loss RF connections for your wireless and communication projects.
Frequently Asked Questions
Where can I buy AMPHENOL RF 132451?
You can click on the BUY or RFQ button to purchase 132451 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 132451?
You can download the 132451 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 132451?
AMPHENOL RF
